Home>Electronic Modules>Switch/Relay Module>RC Absorption Circuit Module Relay Contact Protection Circuit Electromagnetic Anti-interference Module
RC Absorption Circuit Module Relay Contact Protection Circuit Electromagnetic Anti-interference Module

RC Absorption Circuit Module Relay Contact Protection Circuit Electromagnetic Anti-interference ModuleItem NO.: RC-Absorb

US$ 2.88
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
RC Absorption Circuit Module Relay Contact Protection Circuit Electromagnetic Anti-interference Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

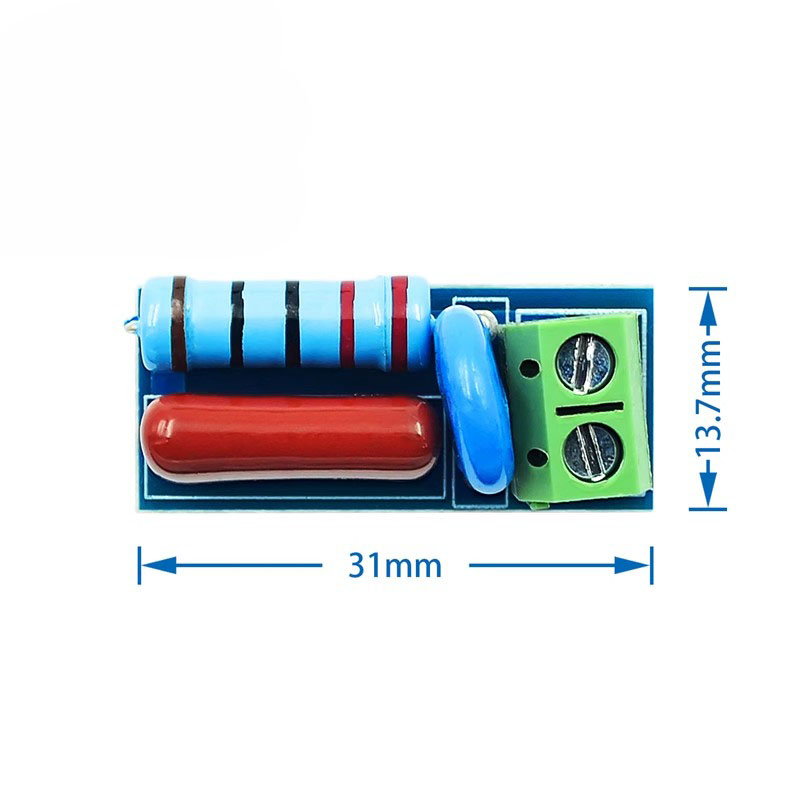

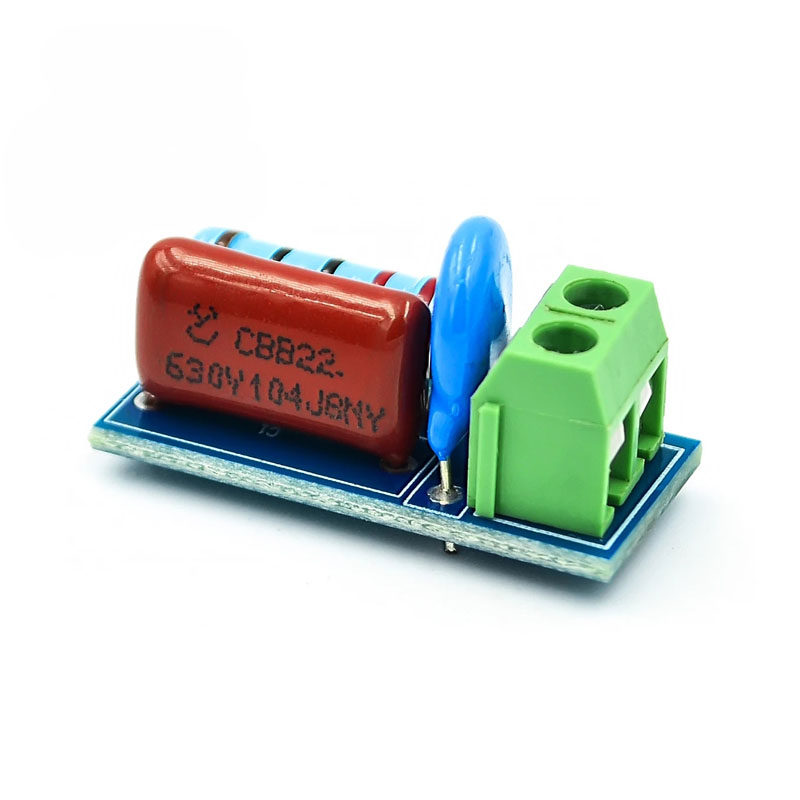

  • RC Absorption Circuit Module

    Product Information:



    RC absorption circuit, also known as RC buffer circuit, is a circuit structure in which a resistor is connected in series with a capacitor and connected in parallel with a switching device. It is used to improve the voltage and current waveforms borne by electronic power devices when they are turned on and off. The RC absorption circuit module can prevent the induced electromotive force generated at the moment of inductive load connection and disconnection from damaging switch devices such as relays and thyristors, prevent electromagnetic interference, and increase the anti-interference ability of the microcontroller.



    Product Parameters:



    1. It is applicable to AC or DC 5-400V inductive load (load less than 1000W) Protective relay contact or thyristor.

    2. RC absorption circuit, which absorbs the induced electromotive force of inductive loads.

    3. There is a Varistor to prevent excessive voltage fluctuation and current from causing relay contact adhesion.

    4. Provide anti-interference ability for current.

    5. The use of crimping terminals makes wiring more convenient.



    Instructions For Use:



    This module is suitable for circuits containing inductive loads and switching devices (such as relays and thyristors). It uses the two interfaces of the module on the two contacts of the relay (such as the common end and normal end of the relay) or in parallel with the thyristors to avoid damage to the relay and thyristors caused by induced electromotive force.
