  • RGB LED Breakout Color Light Module



    Product Introduction:



    This product is WS2812B RGB color intelligent LED light, with simple wiring, protection, and built-in signal shaping circuit. Each pixel receives the signal and outputs it after waveform shaping to ensure that the line waveform distortion is not accumulated. Each pixel of the three primary colors of the point can reach 256 levels of brightness display, completing the full color display of 16777216 colors, and the scanning frequency is not less than 400Hz/s.



    Characteristic:



    1. Lamp board with 5050 lamp beads using WS2812S chip

    2. Highlight, color, RGB color

    3. Built-in chip, many lights can be connected in series

    4. Each lamp can control the color independently after being connected in series.

    5. No more lights need only one control cable and two power cables.



    Main Applications:



    ● LED full-color luminous sign light string

    ● LED full-color module

    ● LED full-color soft light bar

    ● Hard light bar

    ● LED handrail lamp tube.

    ● LED point light source

    ● LED pixel screen

    ● LED special-shaped screen

    ● Various electronic products, ceiling electrical equipment



    Product Parameters:



    ● Power supply voltage: 5V

    ● Chip used: 5050 lamp beads of WS2812S chip

    ● Output transmission speed: 800Kbps

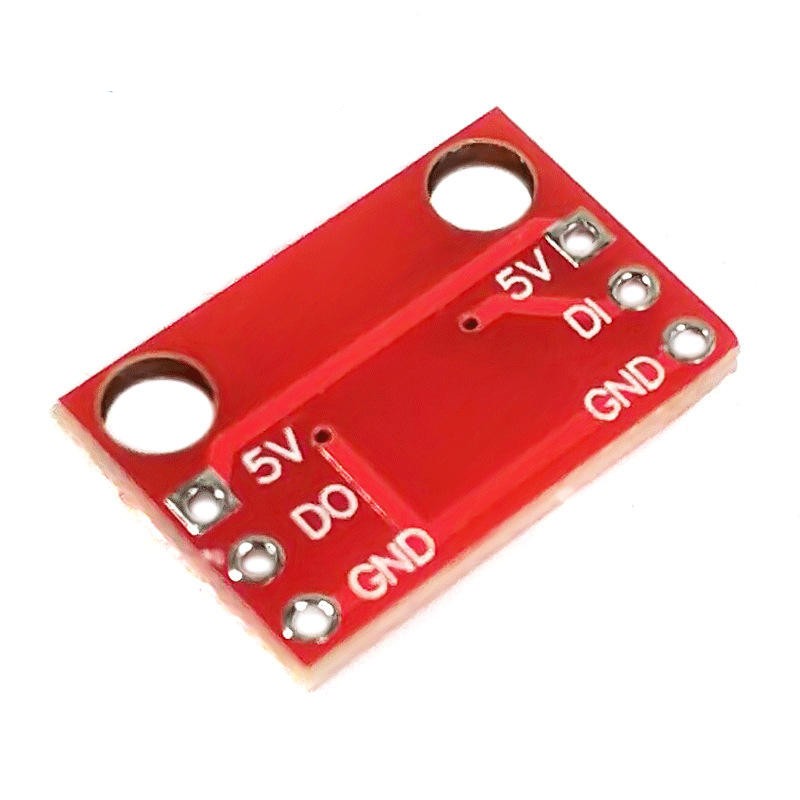

    Interface Description:



    ● VCC: positive input voltage

    ● DI: data input

    ● GND: negative input voltage

    ● DO: data output
