Home>Electronic Modules>Other Electronic Modules>RS232 SP3232 TTL To RS232 Module RS232 To TTL Brush Line Serial Port Module Sinking Gold Plate
RS232 SP3232 TTL To RS232 Module RS232 To TTL Brush Line Serial Port Module Sinking Gold PlateItem NO.: MK00886
US$ 2.94
-
Customized Requirements
- Quantity
-
Adding to cart succeed
RS232 SP3232 TTL To RS232 Module RS232 To TTL Brush Line Serial Port Module Sinking Gold Plate
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: RS232 SP3232 TTL To RS232 Module RS232 To TTL Brush Line Serial Port Module Sinking Gold Plate
- Item NO.: MK00886
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: Serial Port Module , RS232 , SP3232 , TTL To RS232 Module , S232 To TTL
- Creation Time: 2024-04-13

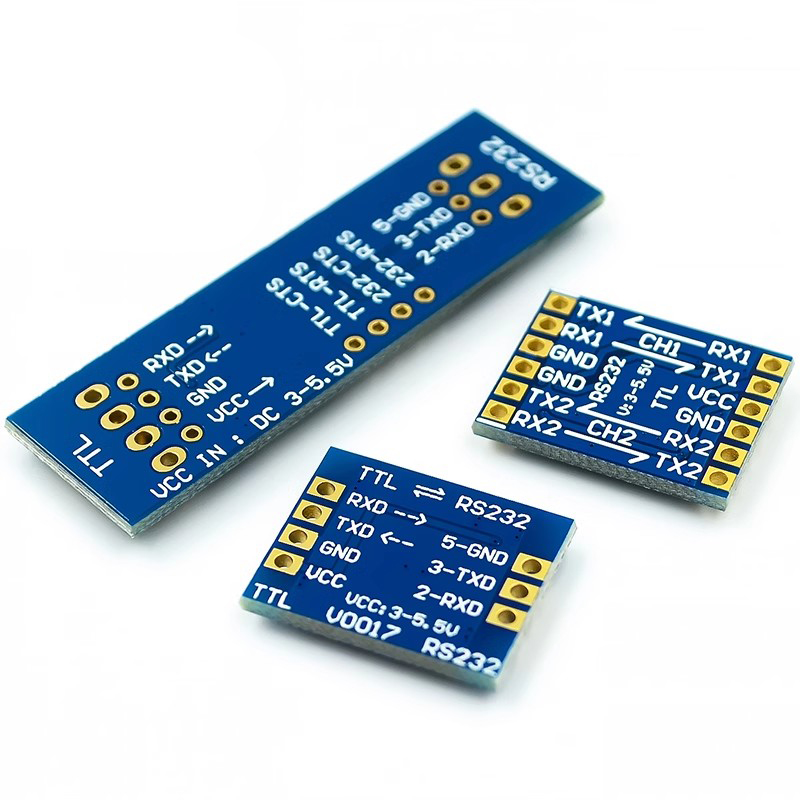

RS232 SP3232 TTL To RS232 Module
Connection instructions:
Note: Both TTL and RS232 terminals should be connected to TXD through RXD and TXD through cross matching and docking

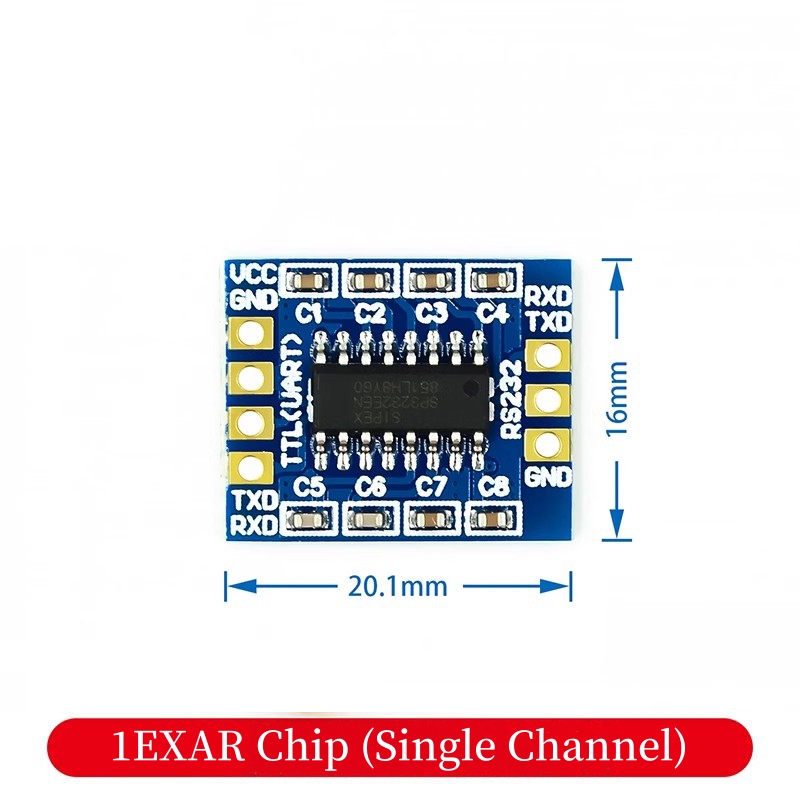

TTL (UART) end:
VCC: Connected to DC 3V-5.5V
GND: Connected to GND
TXD: Connected to external device TTL end RXD
RXD: Connected to external device TTL end TXD
RS232 terminal:
RXD: Connected to external device RS232 end TXD
TXD: Connected to external device RS232 end RXD
GND: Connected to GND
