3-Color Full-Color LED SMD Module KY-009 Is Applicable To The RGB Module Of Controllable Seven-Color LampItem NO.: KY-009
-
Customized Requirements
- Quantity
-
-
- Product Name: 3-Color Full-Color LED SMD Module KY-009 Is Applicable To The RGB Module Of Controllable Seven-Color Lamp
- Item NO.: KY-009
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: 3-Color , Full-Color , LED SMD Module , KY-009 , RGB Module
- Creation Time: 2024-04-16

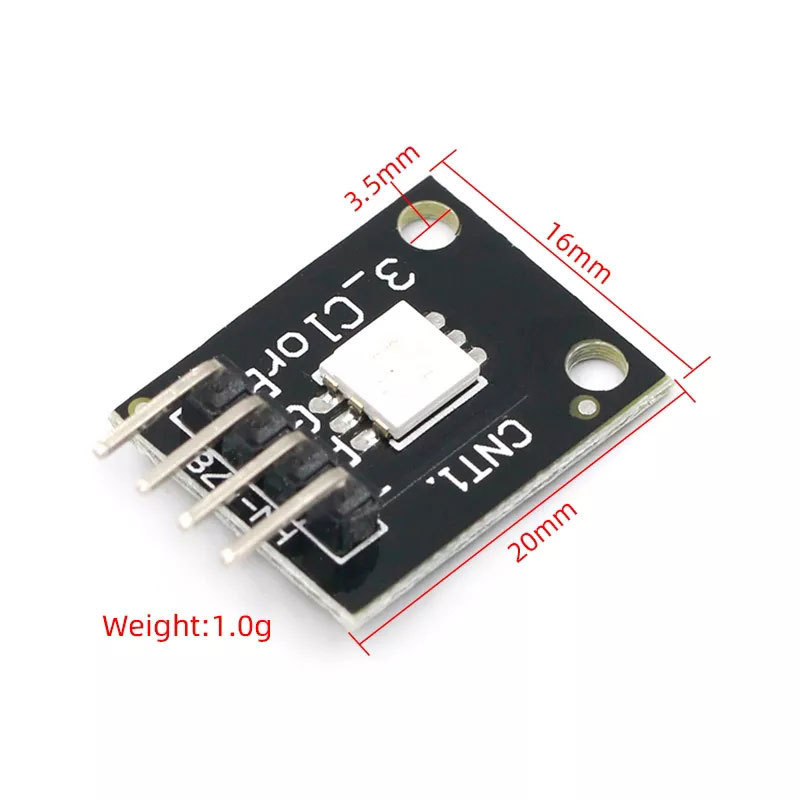

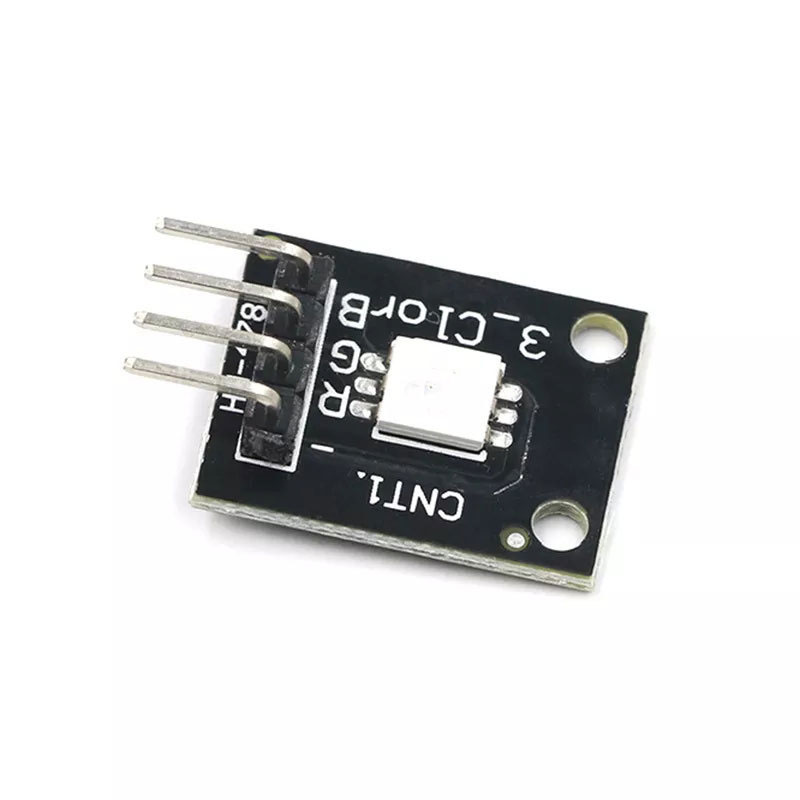

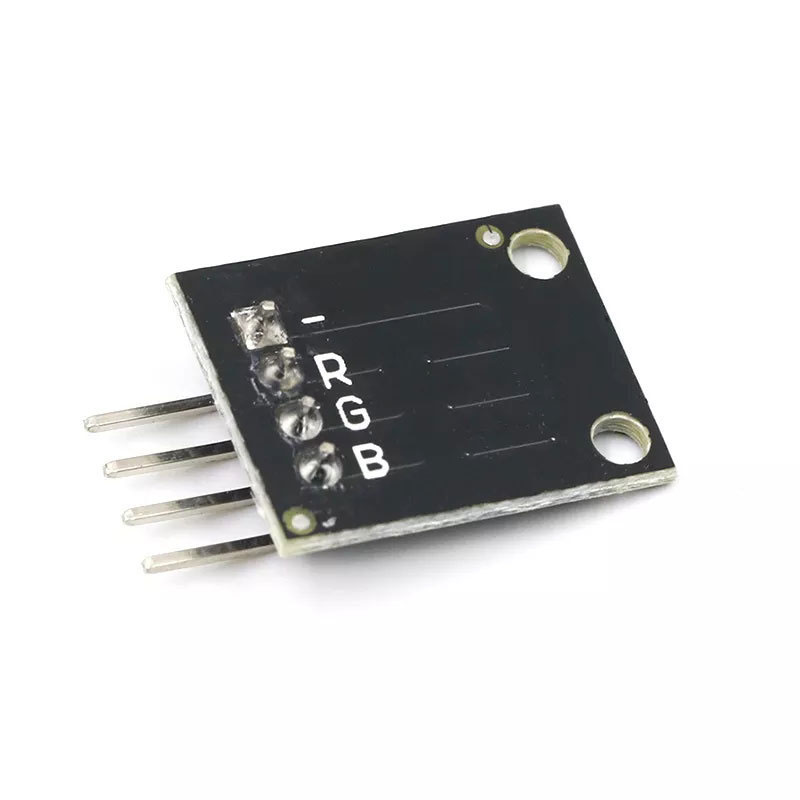

3-Color Full-Color LED SMD Module
Product Overview:
RGB LED module is made of a full-color LED with a chip. The intensity of three primary colors (red/blue/green) can be adjusted through the PWM voltage input of R, G and B pins to achieve full-color mixing effect.
Parameter Properties:
1. Use 5050 full-color LED
2. RGB three primary colors are connected with current-limiting resistor to prevent burning
3. The three primary colors can be mixed to get different colors through PWM adjustment
4. It can interface with various single-chip microcomputers
5. Working voltage: 5V
6. LED drive mode: common cathode drive
