SFT-D302 Digital Power Amplifier Board Wide Voltage 12V 30Wx2 High-Power Power Amplifier ModuleItem NO.: SFT-D302
-
Customized Requirements
- Quantity
-
-
- Product Name: SFT-D302 Digital Power Amplifier Board Wide Voltage 12V 30Wx2 High-Power Power Amplifier Module
- Item NO.: SFT-D302
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Power Amplifier Module , Digital Power Amplifier Board , 30Wx2 , SFT-D302
- Creation Time: 2024-04-30

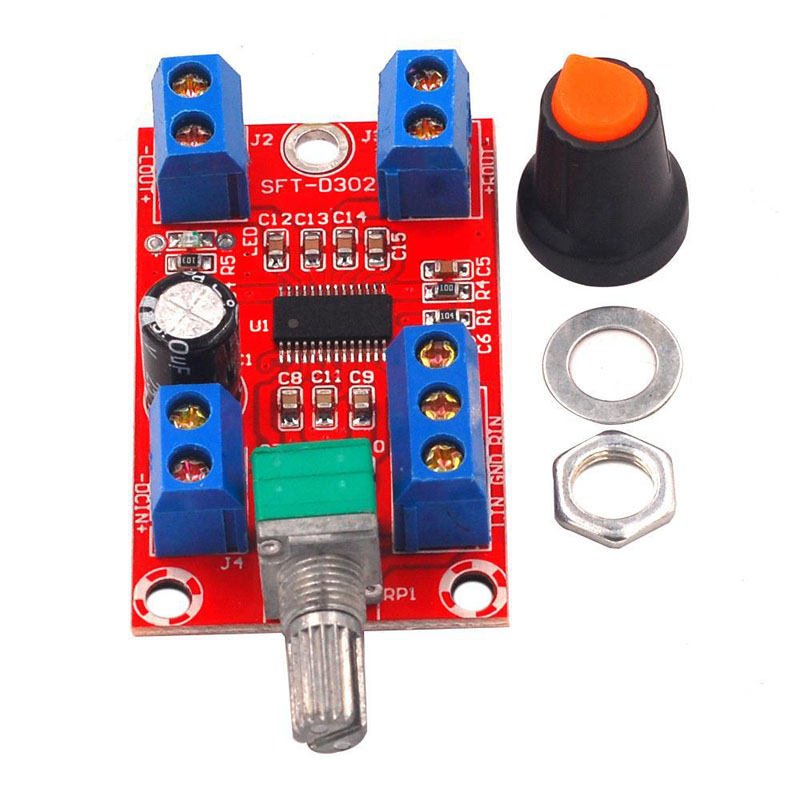

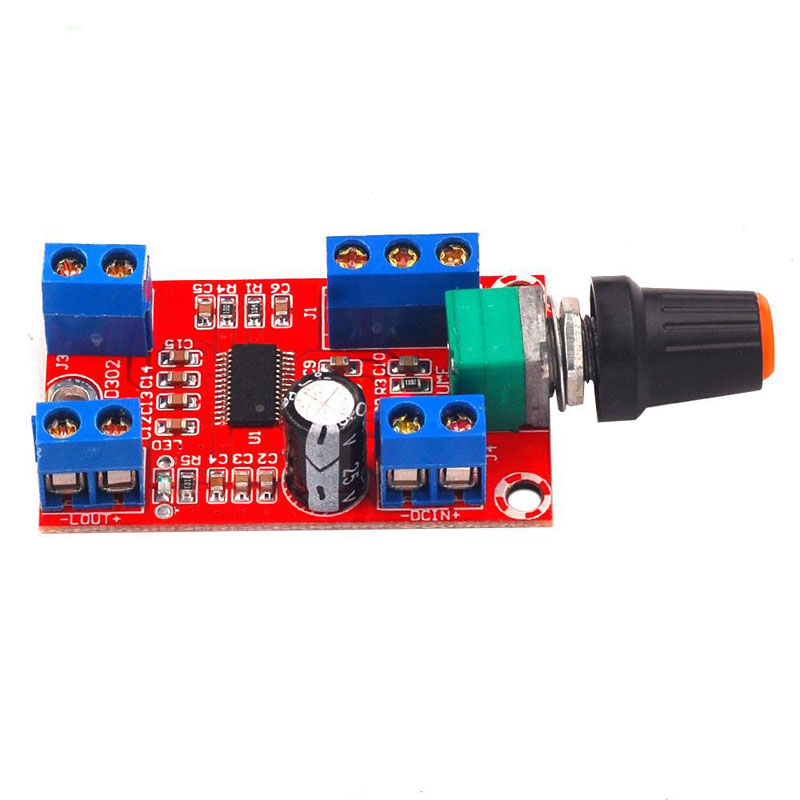

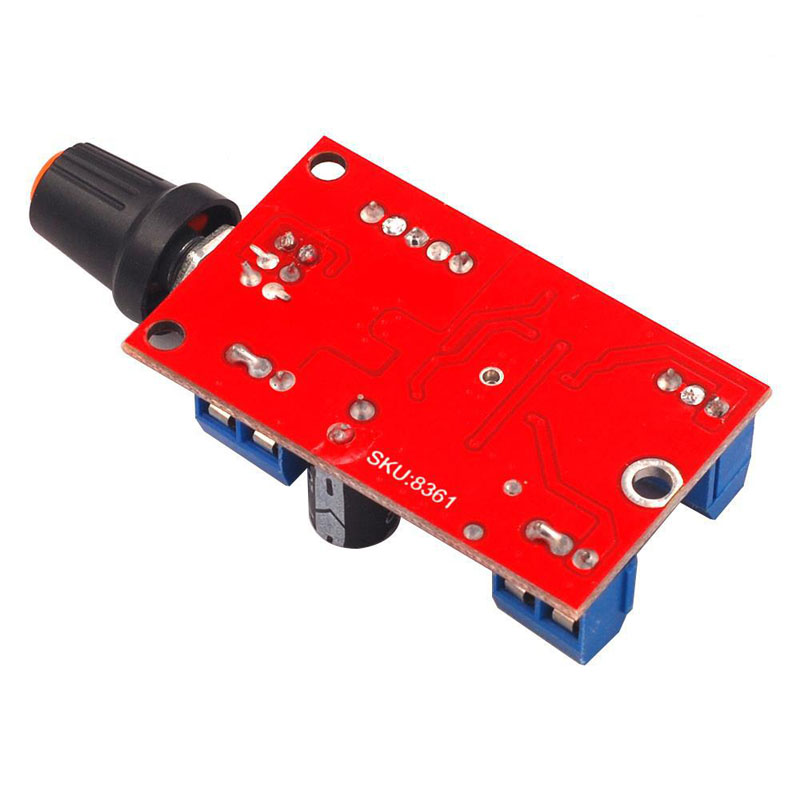

SFT-D302 Digital Power Amplifier Board
Product Parameters:
● Working mode: Class D (PWM modulation)
● Product model: SFT-D302 (without radiator)
● Channel type: dual channel 2.0
● Power supply: single power supply: DC 7.5V-24V ≥ 2A
● Output power: 15-30W * 2 (4-8 Ω)
● Recommended speaker: 30-300W
● Signal-to-noise ratio: 102dB
● Working temperature: - 40 -+85 ℃
● Quiescent current: 11mA at 12V power supply

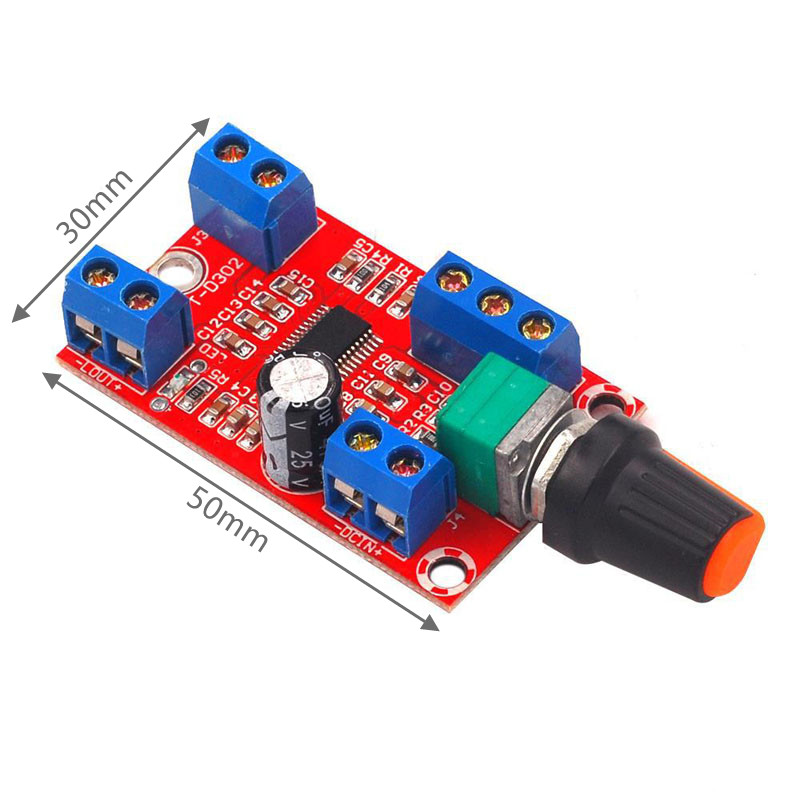

● Product size: 50 * 30 * 15mm (excluding volume handle)
Product Features:
● Small size, 50 * 30 * 15mm (excluding potentiometer handle), only two fingers wide.
● Large power, easy to push 100-300W stage speakers without distortion.
● Transparent sound quality, high signal-to-noise ratio, strong resolution and wide dynamic range are incomparable with traditional power amplifiers.
● With output short circuit protection, it can resume normal operation immediately after troubleshooting.
● Low heat, almost no heat when powered by 12V power supply, and can work stably and uninterruptedly for a long time.
● High efficiency, up to 100%. Low static power consumption, only 11mA.
● The base material is made of 1.6mm thick FR-4 double-sided plate with hardness, and the process of large factories is incomparable with that of ordinary workshops
