PAM8302 Single Channel Audio Amplifier Class D 2.5W Audio Power Amplifier ModuleItem NO.: CJMCU-8302
-
Customized Requirements
- Quantity
-
-
- Product Name: PAM8302 Single Channel Audio Amplifier Class D 2.5W Audio Power Amplifier Module
- Item NO.: CJMCU-8302
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Class D , Audio Power Amplifier Module , PAM8302 , Single Channel , Audio Amplifier , 2.5W
- Creation Time: 2024-03-27

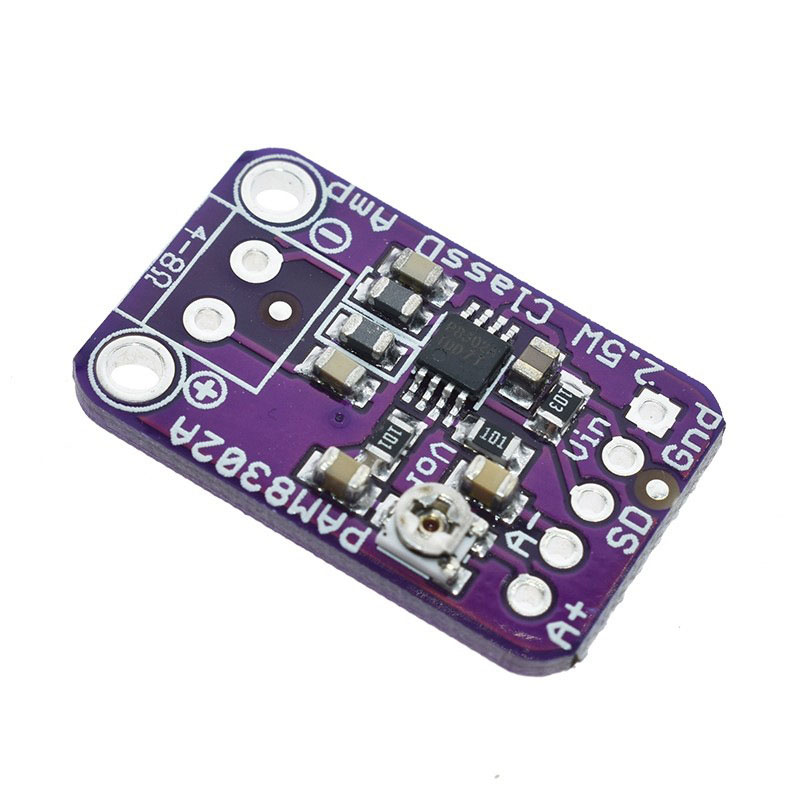

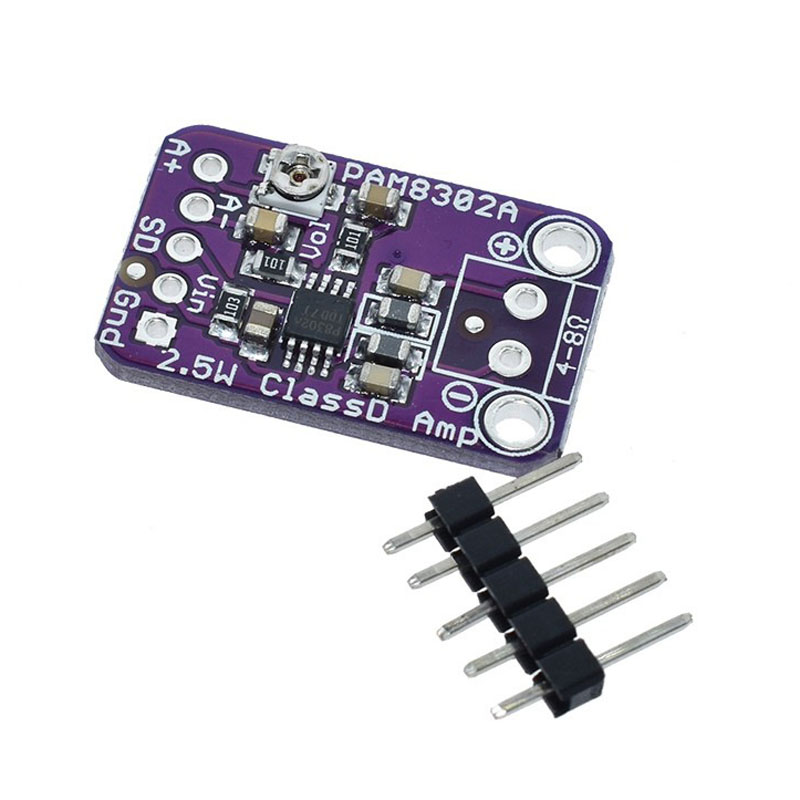

PAM8302A CJMCU-8302 PAM8302
Mono Audio Power Amplifier Module
Product Information:
PAM8302 module is a Class D 2.5W mono channel power amplifier. Its low total harmonic distortion+low noise (THD+N) performance enables it to have higher fidelity during audio amplification. It can directly drive speakers with an efficiency of 88%. It has short circuit protection and thermal protection functions, low static power consumption and low EMI.
Product Parameters:
● Working voltage: 2~5.5V, 2.5W output for 5V power supply, driving 4 Ω load 10% THD
● Operating temperature: - 40 ℃~85 ℃
● Static current:<8mA
● Frequency response range: 20~20KHZ

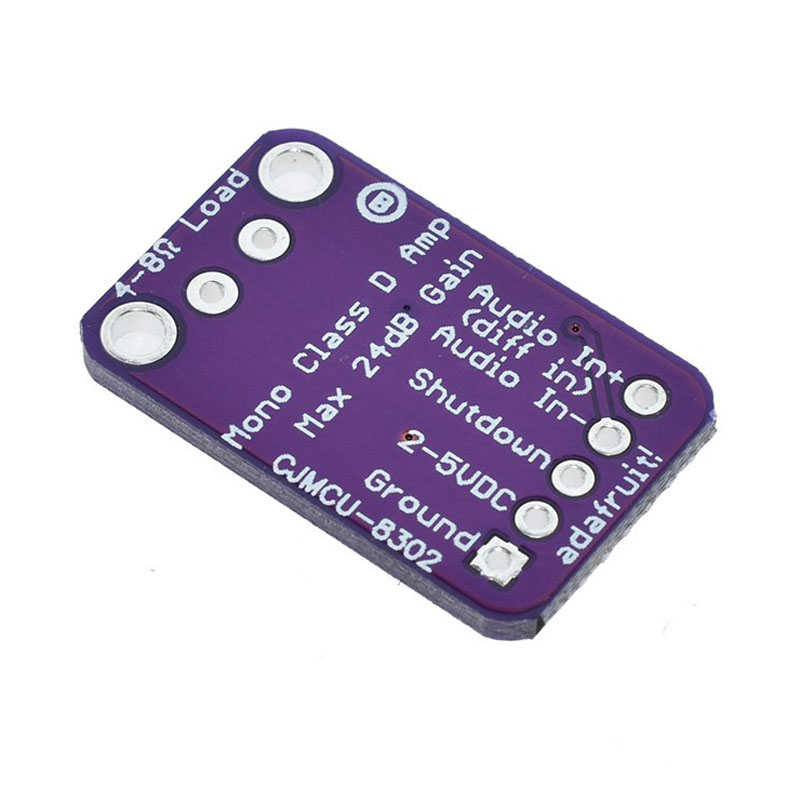

Pin Definition:
● Vin: power supply pin, 5V recommended
● A+: audio signal differential input positive end
● A -: Negative terminal of differential input of audio signal
●/SD: shutdown, effective at low level
● VO+: positive end of power amplifier output
● VO -: power amplifier output negative terminal
