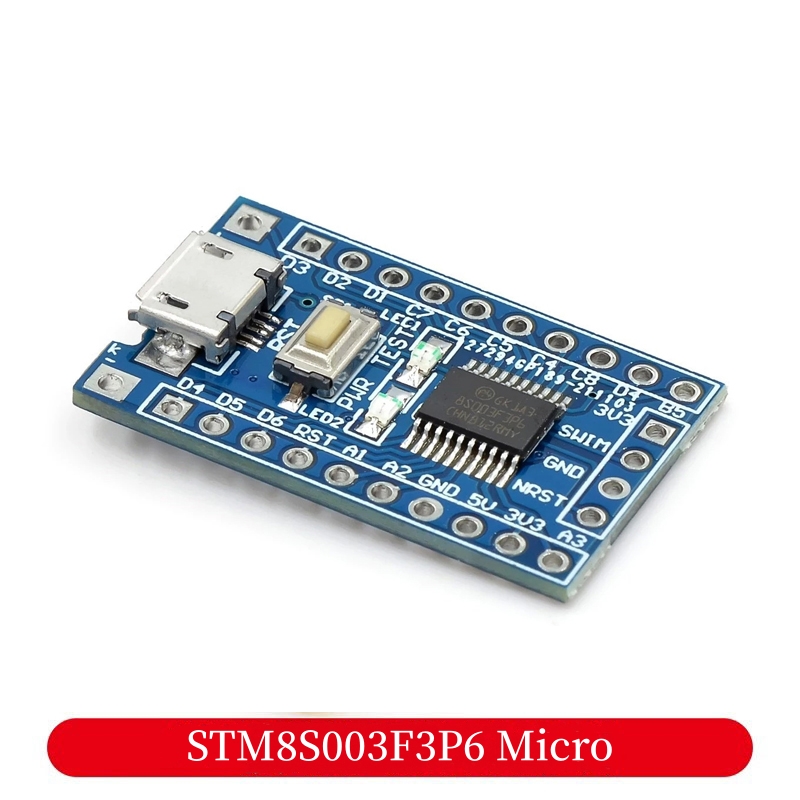

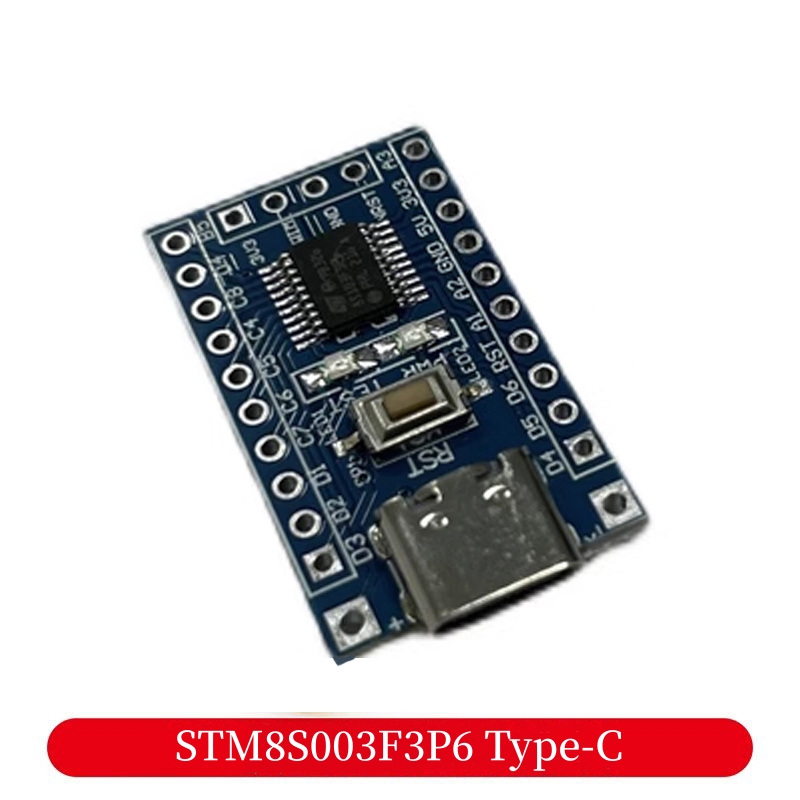

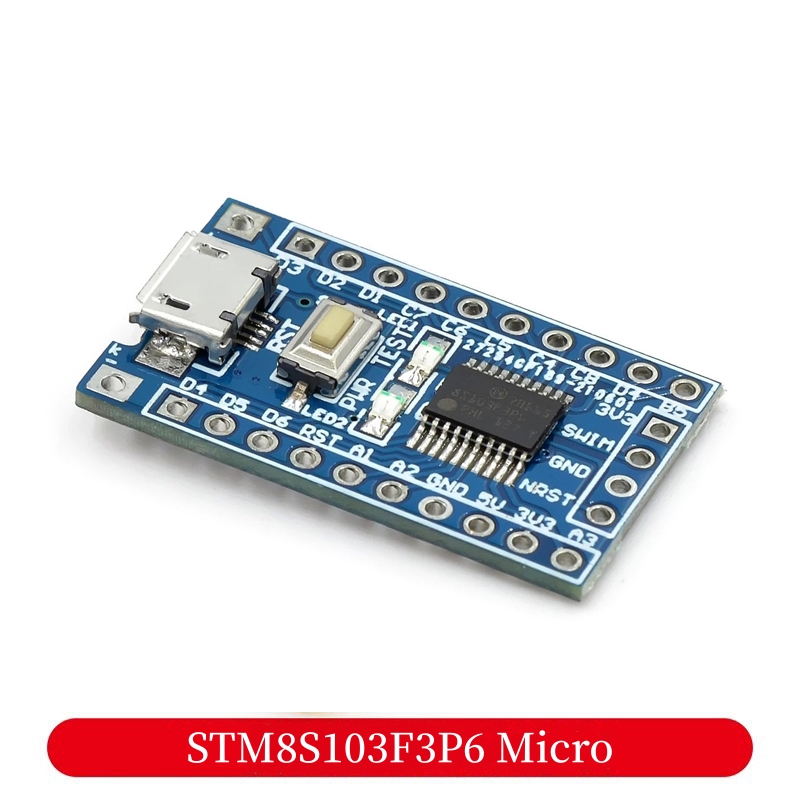

STM8 Development Board Small System Board Core Board STM8S103F3P6 STM8S003F3P6 Micro Type-C InterfaceItem NO.: MK00529
-
Customized Requirements
- Quantity
-
-
- Product Name: STM8 Development Board Small System Board Core Board STM8S103F3P6 STM8S003F3P6 Micro Type-C Interface
- Item NO.: MK00529
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: Development Board , Core Board , MICRO , TYPE-C , STM8 , Small System Board , STM8S103F3P6 , STM8S003F3P6
- Creation Time: 2024-03-21

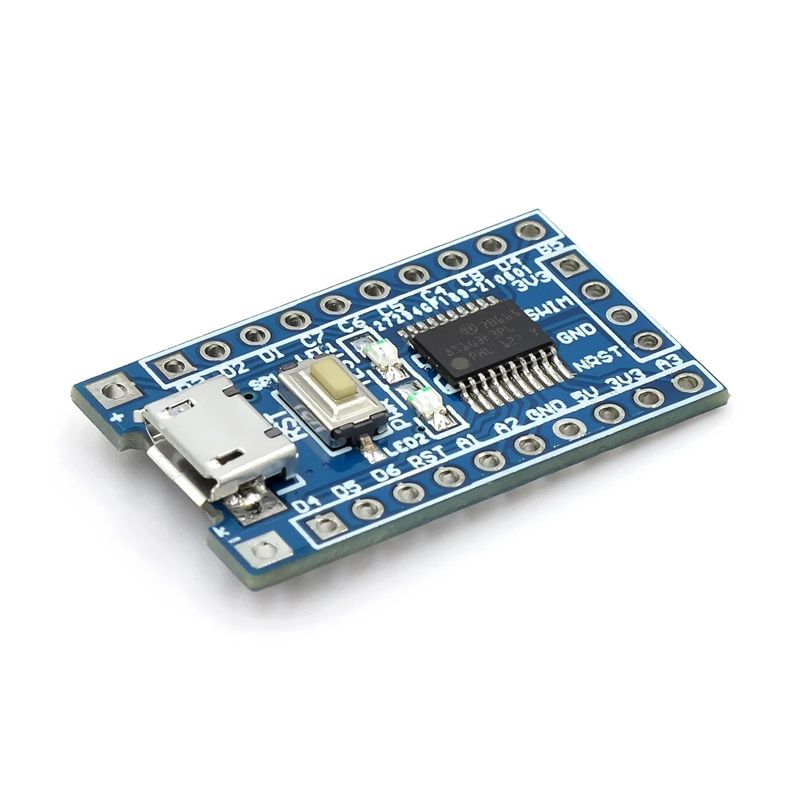

STM8 Development Board Small System Board
Product Information:
This development board uses a MicroUSB cable for power consumption, which is compatible with smartphone data cables. The data cable is simple and easy to obtain, rather than a USB MINI cable for power consumption. The USB MINI cable is difficult to find and has gradually been phased out, which is an important feature that sets this module apart from other home products. Low price, user-friendly design, and a complete set of materials help you save money, time, effort, and worry!
Main Features Of The STM8S Core Board:
1. Use STM8S103F3P6 as the main control IC.
2. You can use the 2.54 pins on the board to power up or the solder pad to power up. When using the solder pad to power up, the input voltage range is 4.5V-15V, and 3.3V can be output externally through the pins at the same time! Attention: The 5V pin is connected to the input power supply of the module.
3. Lead out all pins, with the pin label marked next to them, equipped with a reset button, power indicator light, and program demonstration indicator light. Although the sparrow is small, it has all the necessary features.
4. Support SWIM debugging method.
