SCD40 SCD41 Gas Sensor Module Detects CO2 Temperature And Humidity In One I2C CommunicationItem NO.: SCD
-
Customized Requirements
- Quantity
-
-
- Product Name: SCD40 SCD41 Gas Sensor Module Detects CO2 Temperature And Humidity In One I2C Communication
- Item NO.: SCD
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Gas Sensor Module , SCD40 , SCD41 , Detects CO2 Temperature And Humidity
- Creation Time: 2024-04-15

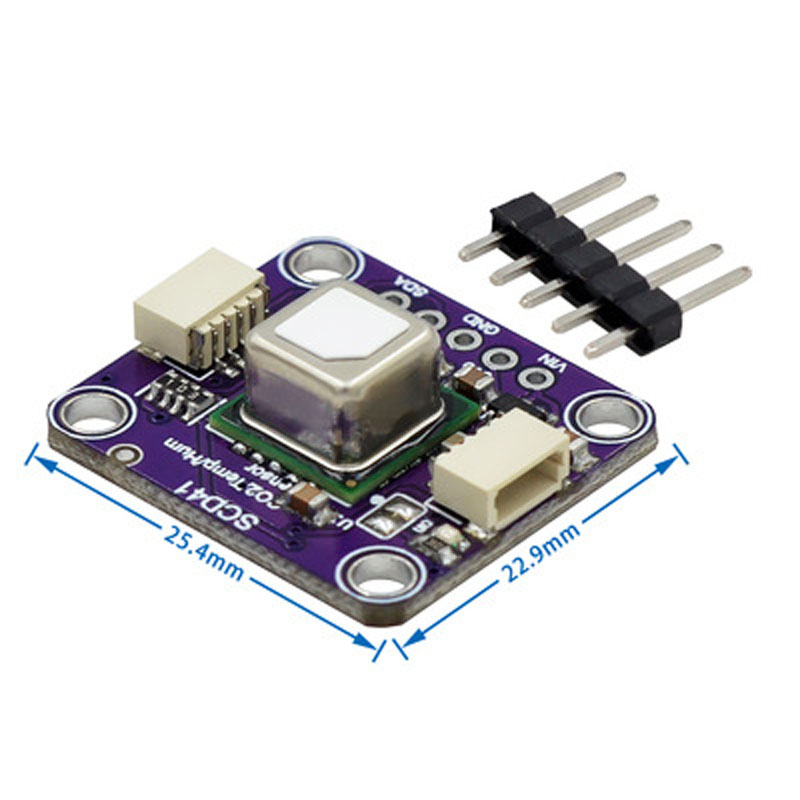

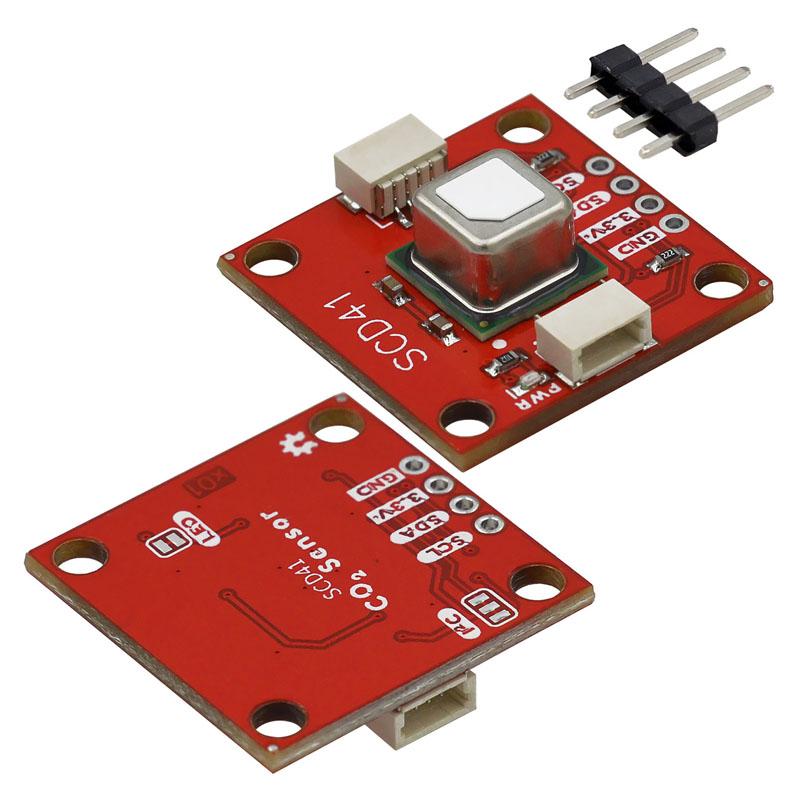

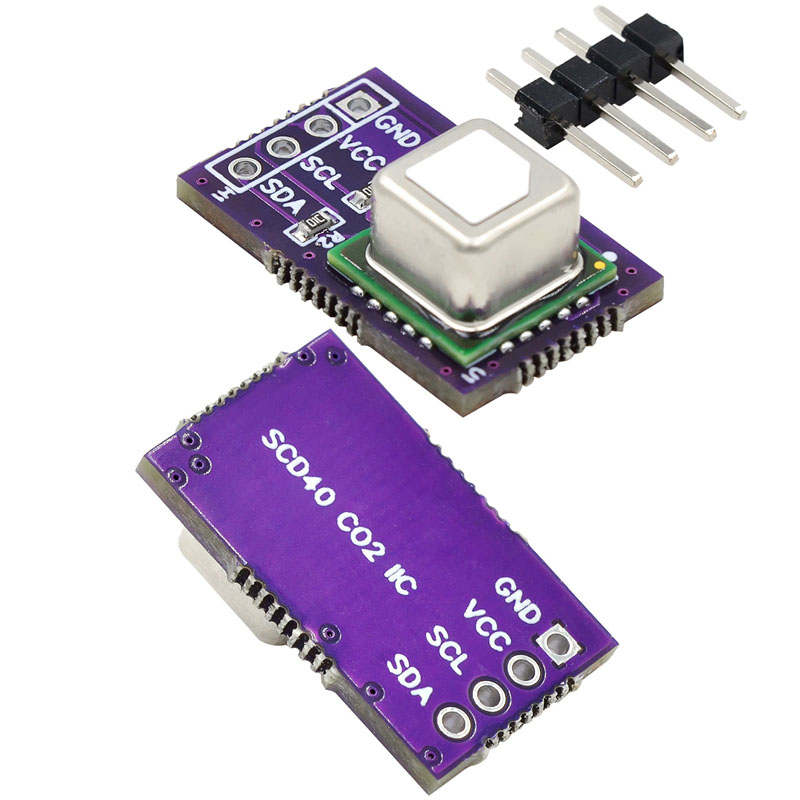

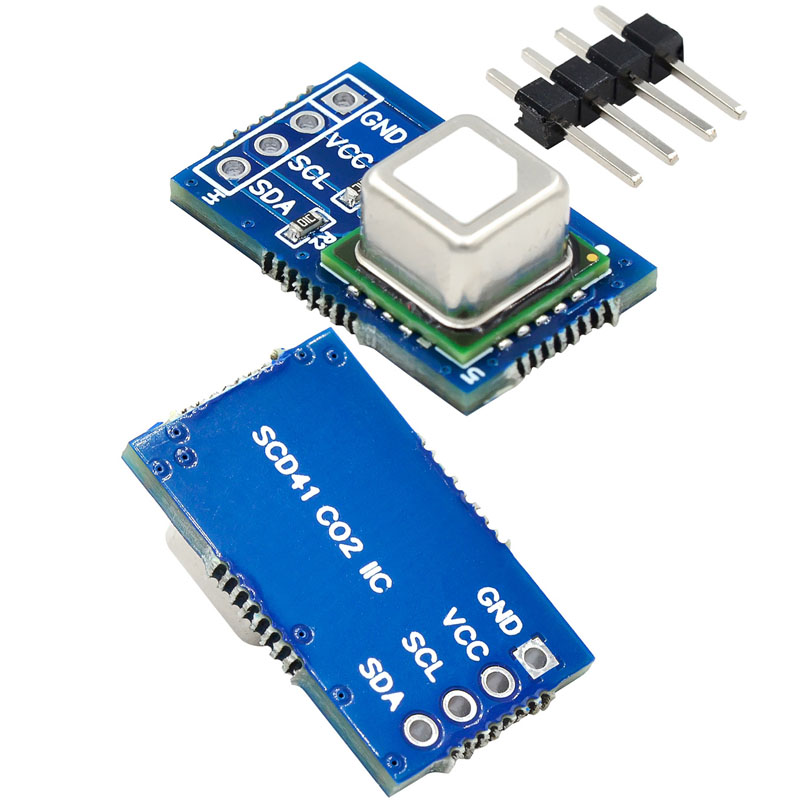

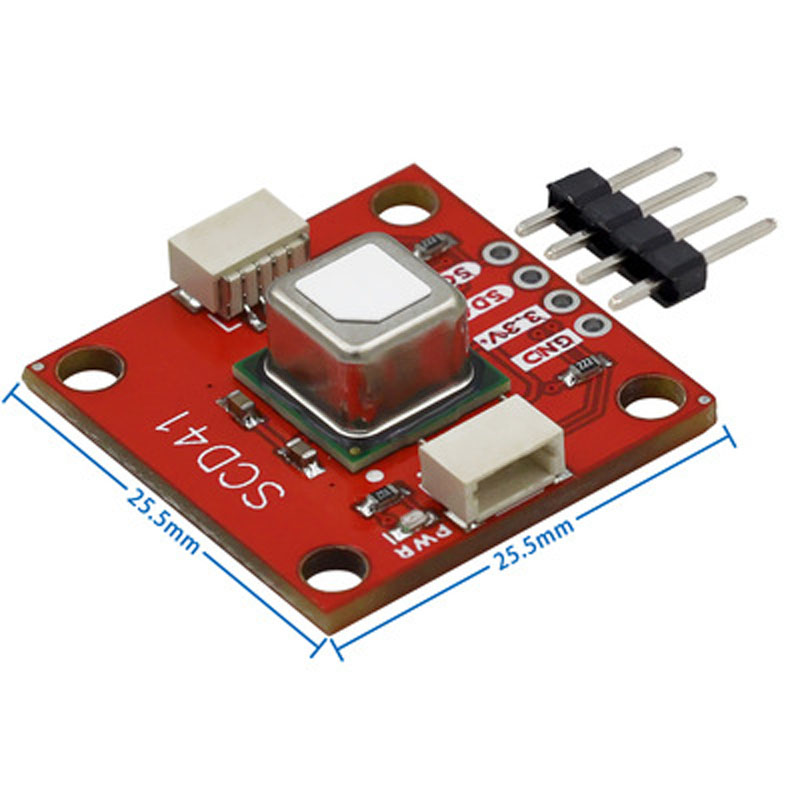

SCD40 SCD41 Gas Temperature and Humidity Sensor Module
Product Introduction:

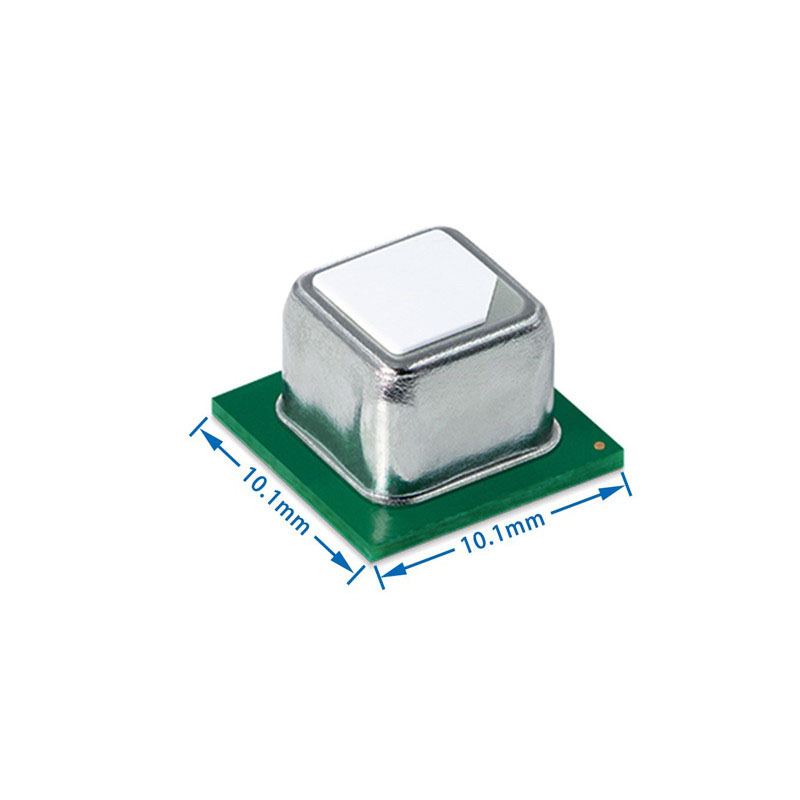

Carbon dioxide is a key indicator of indoor air quality that impairs human cognitive ability and well-being. The SCD40/SCD41 is a miniature carbon dioxide sensor with high accuracy and cost performance. The module uses a 2.54mm pitch pin array interface to lead out power and communication pins. On chip temperature and humidity compensation is achieved through built-in temperature and humidity sensors for humidity and temperature measurement. SCD40/SCD41 can achieve intelligent adjustment of indoor ventilation systems based on carbon dioxide concentration, and indoor air quality helps maintain a healthy and efficient environment with low carbon dioxide concentration for a period of time.
Product Features:
● Reference accuracy, specified range:
SCD40:400-2000 ppm
SCD41:400-5000 ppm
● Power supply voltage range: 2.4 – 5.5 V
● High accuracy: ± (40 ppm+5%)
● Digital I2C interface
● Integrated temperature and humidity sensors
/ 5 minutes

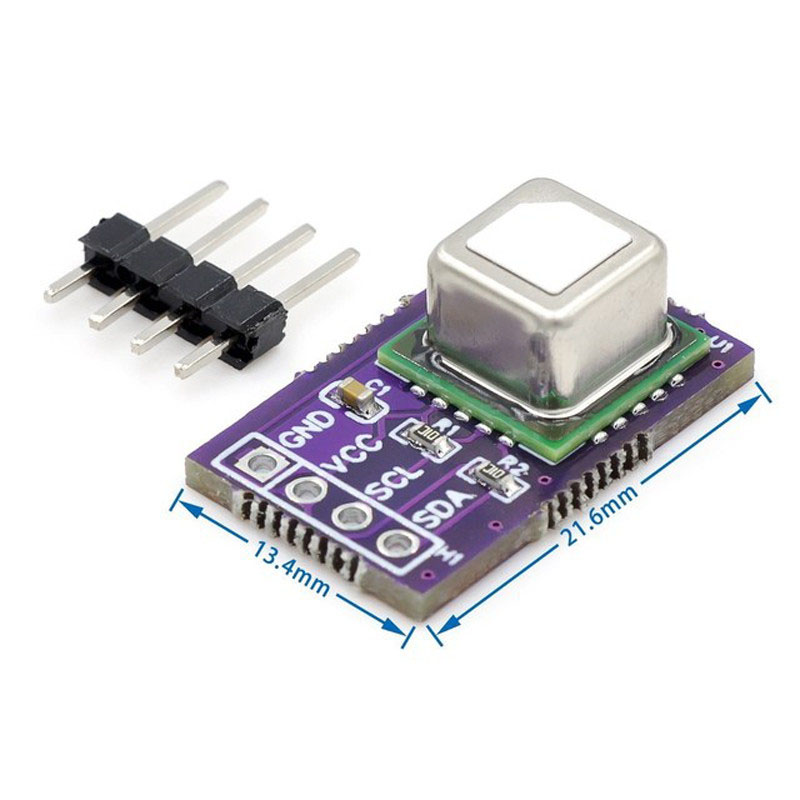

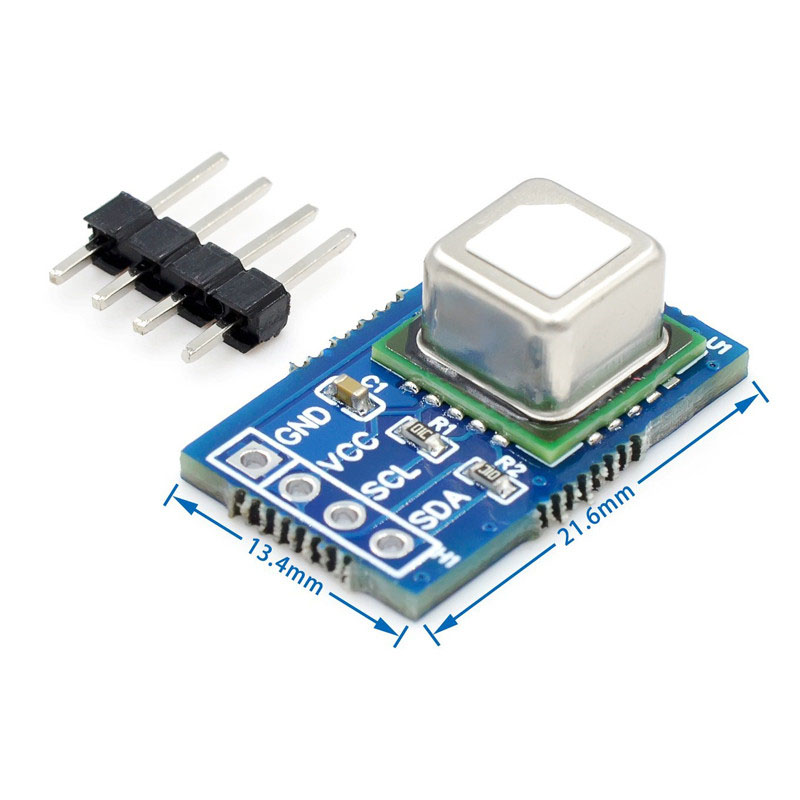

● Board size: 13.4 × 21.6mm
Interface Definition:
1. GND: Power supply negative electrode input port
2. VDD: Power supply positive input port
3. SCL: I2C clock port
4. SDA: I2C data port
