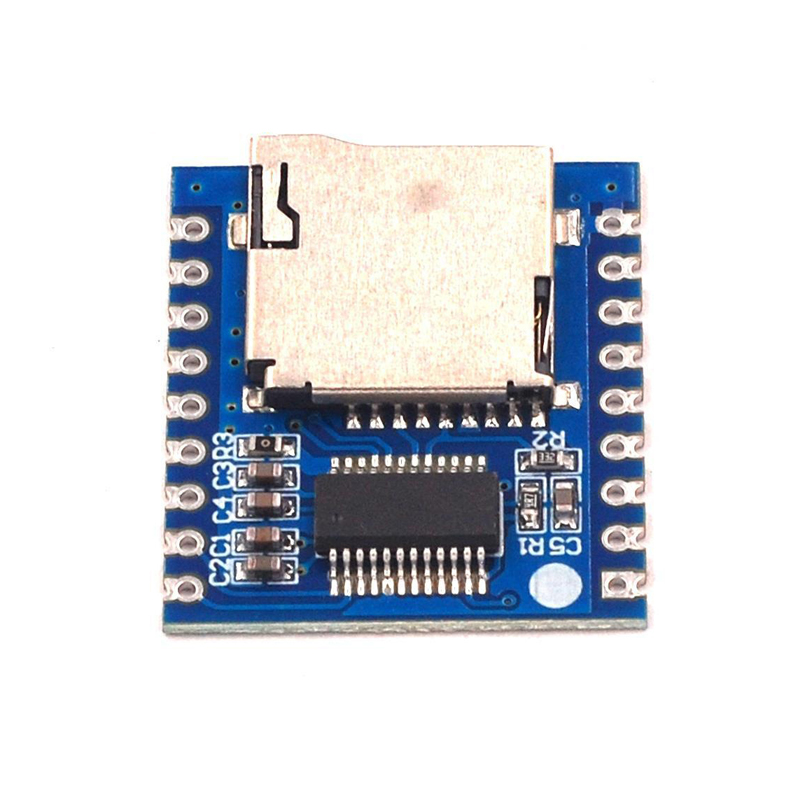

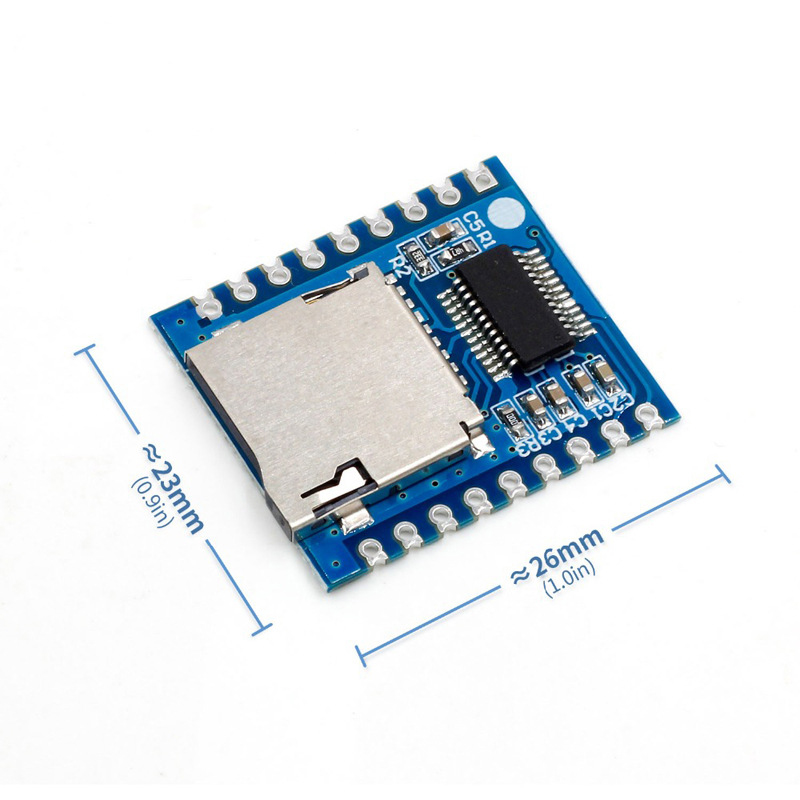

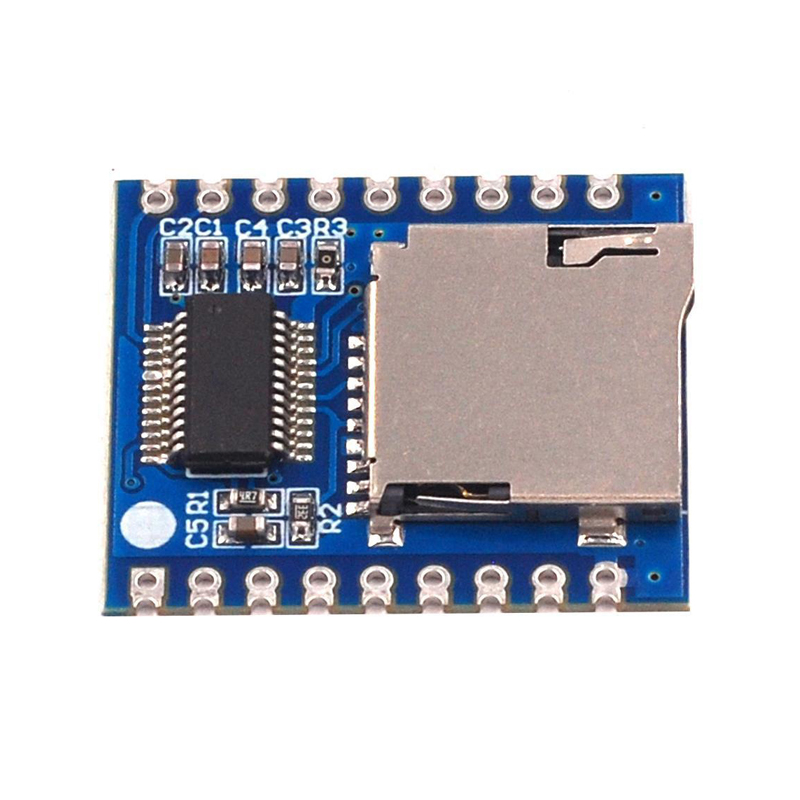

  • XY-V17B Serial Port Control Voice Module



    Product Overview:



    XY-V17B is an intelligent voice module that integrates IO segmented triggering, UART serial port control, ONE_ Line single bus serial port control, standard MP3 and other functions; Supports MP3 and WAV decoding formats, supports up to 32G TF card storage, and can be connected to a computer via USB data cable to update TF card storage audio files.



    Product Characteristics:



    1. Supports MP3 and WAV decoding formats.

    2. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.

    3. 24 bit DAC output, dynamic range supporting 90dB, signal-to-noise ratio supporting 85dB.

    4. Fully supports the FAT16/FAT32 file system, supports up to 32GB TF cards, and supports 32GB USB drives.

    5. Support UART serial port control voice broadcasting function, which can control playback, pause, song selection, volume increase or decrease, and can select up to 65535 tracks with a baud rate of 9600 bit/s.

    6. Supports IO triggering function, with 8 IO ports triggering 8 tracks individually or a combination of 8 IO ports triggering 255 tracks.

    7. Support for One_ Line single bus serial port control, which can control functions such as playback, pause, music selection, volume increase and decrease.

    8. Supports 3 configured IO for mode selection.
