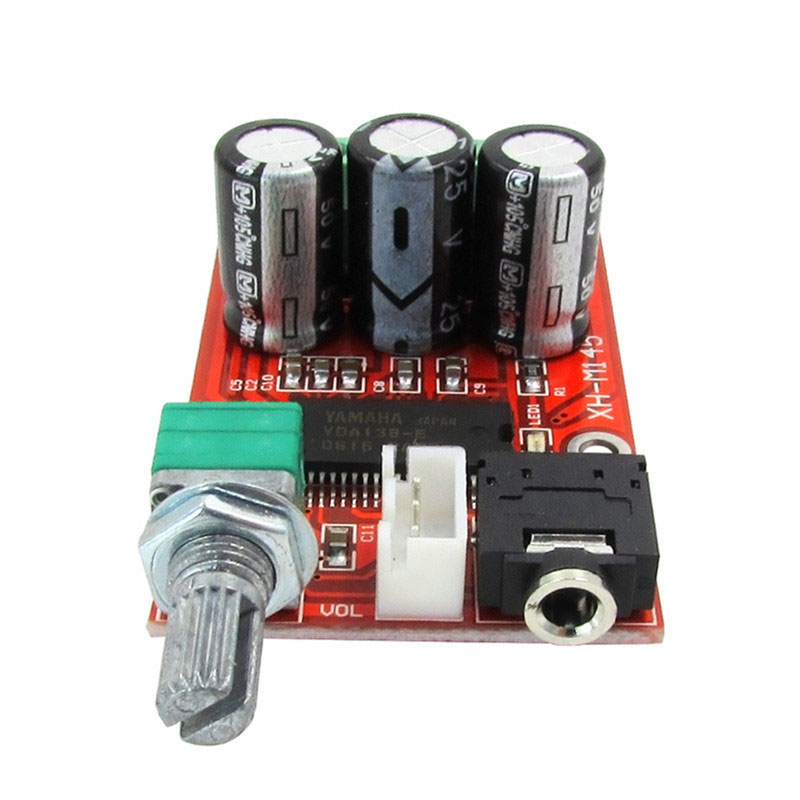

  • XH-M145 Digital Power Amplifier Board



    Product Introduction:



    1. The power amplifier board adopts YD138-E chip, which has the characteristics of over-current protection, thermal protection, noise reduction, etc.

    2. Wide voltage working range, DC 9-14V, current 2A and above can work normally.

    3. Powerful power, large dynamic range, from cricket to cannon, can perform well with little distortion. 8 Ω load is 2 * 8W, 4 Ω load is 2 * 12W.



    Product Parameters:



    ● Product name: digital power amplifier board

    ● Product model: XH-M145

    ● Working mode: Class D (automatic pulse width modulation)

    ● Chip model: YDA138-E

    ● Recommended voltage: 12V 1.5A

    ● Channel type: two-channel stereo

    ● Sex to noise ratio: 92%

    ● Output power: 8W+8W (8-ohm speaker) 12W+12W (4-ohm speaker)

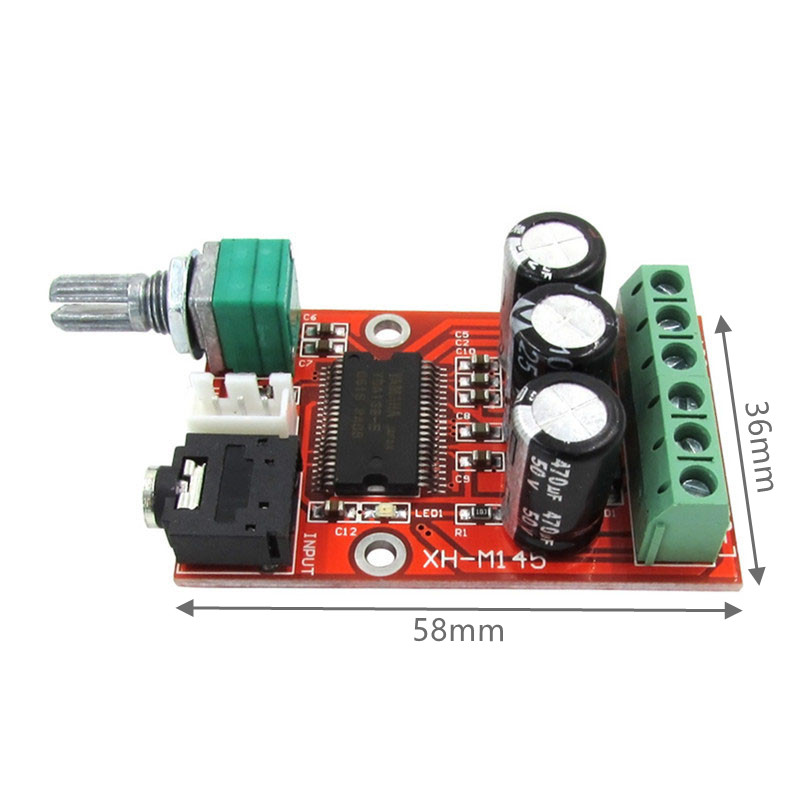

    ● Product size: 58 * 36 * 21MM (excluding the protruding part of potentiometer)
