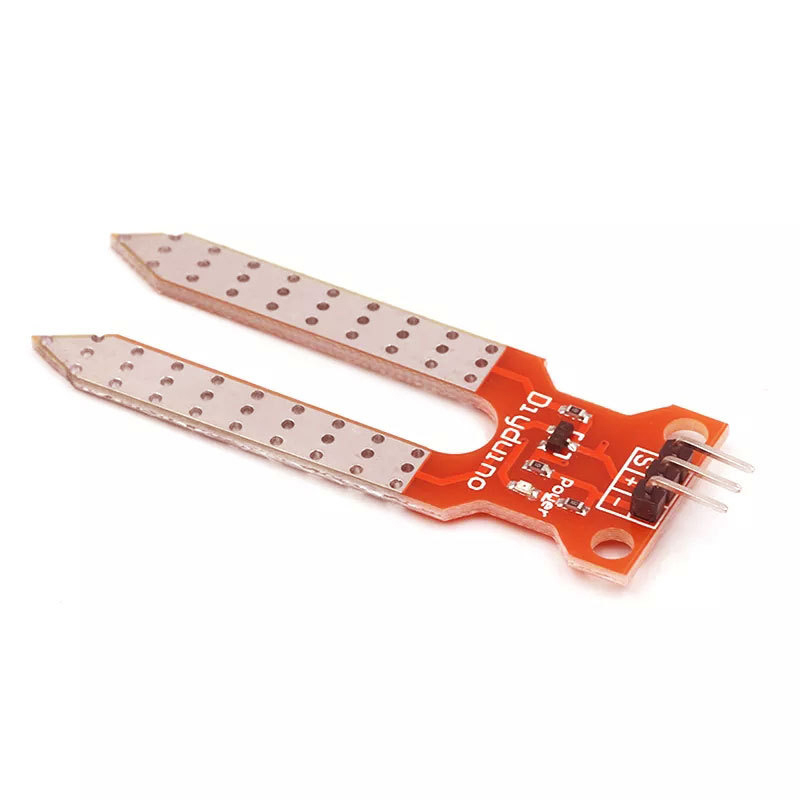

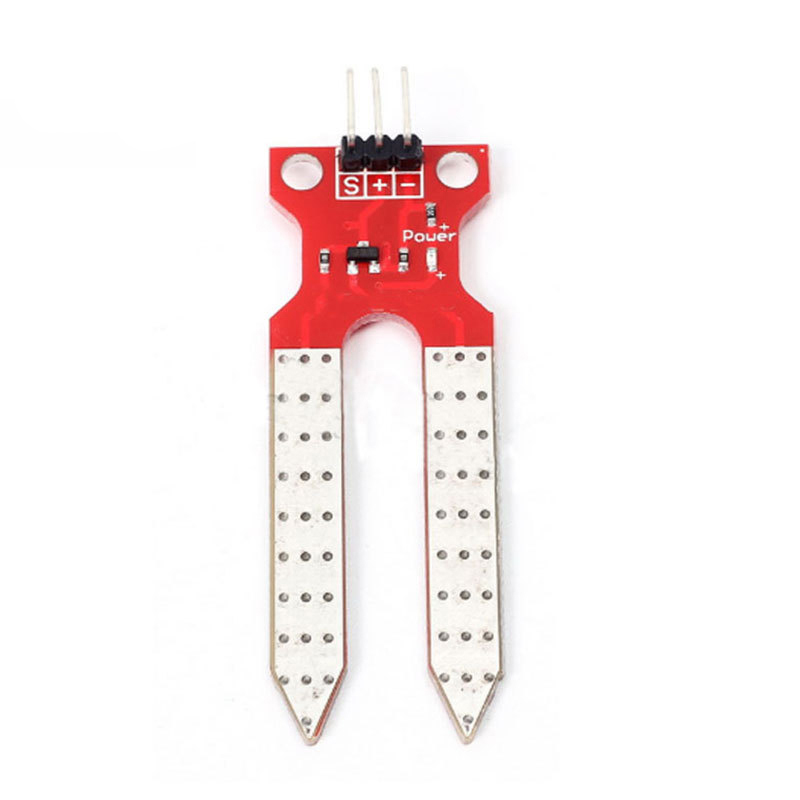

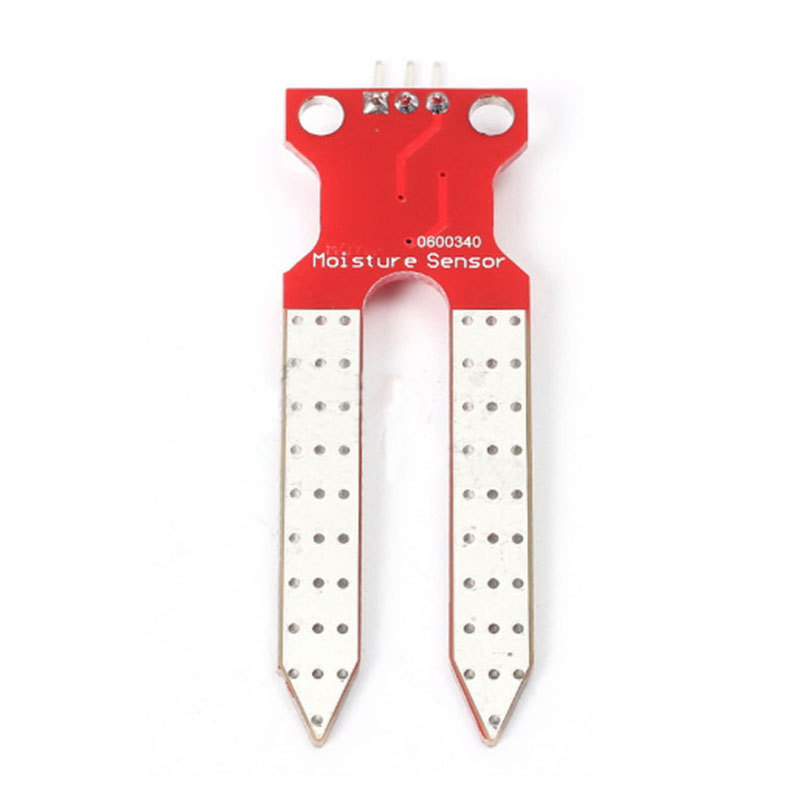

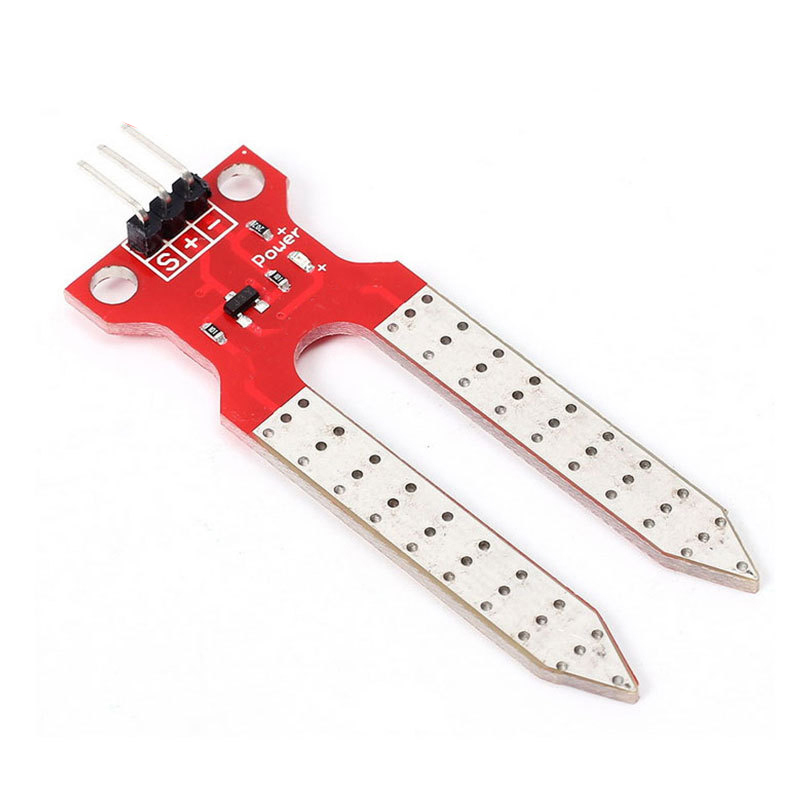

Soil Moisture Sensor Module
Product Information:
This is a simple moisture sensor that can be used to detect soil moisture. When the soil is short of water, the analog value output by the sensor will decrease, and vice versa. Use this sensor to make an automatic watering device. When you are not at home for a long time or the watering time has passed, it can sense whether your plant is thirsty. To prevent plants from withering, it is known that it is caused by water shortage. The Arduino controller makes your plants more comfortable and your garden more intelligent.
The sensor surface has been metallized, which can extend its service life. Insert it into the soil and read it using the AD converter. With its help, the plant will remind you: I need to drink water, please give me some water to drink.
Technical Specifications:
● Power supply voltage: 3.3V or 5V
● Working current: less than 20mA
● Output voltage: 0-2.3V [2.3V is the voltage value completely immersed in water], 5V power supply, the greater the humidity, the greater the output voltage.
● Sensor type: analog output
● Packaging method: sealed with electrostatic bag
● Interface definition: 1-pin signal, 2-pin ground, 3-pin power supply positive
● Service life: about 1 year (the surface is gold-plated to enhance the conductivity and corrosion resistance)
● Module size: 20X60mm
