ICM-20948 Low-power 9-Axis MEMS Motion Tracking Device Sensor 20948Item NO.: ICM-20948 Motion Sensor
-
Customized Requirements
- Quantity
-
-
- Product Name: ICM-20948 Low-power 9-Axis MEMS Motion Tracking Device Sensor 20948
- Item NO.: ICM-20948 Motion Sensor
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 9-axis , ICM-20948 , MEMS Motion Tracking Device Sensor , 20948
- Creation Time: 2024-05-10
ICM-20948
Motion Tracking Sensor Module
Product Overview:
ICM-20948 is specially designed to coordinate the time between ICM-20948 and external sensors. An additional function. In addition to using the dedicated interrupt INT pin of the module, developers can also use the interrupt or synchronization pulse of the external sensor to drive the FSYNC pin of the module to help developers simplify these multisensor designs.
ICM-20948 provides independent external sensors. 12C interface and built-in support. Here the developer connects a 12C compatible smart sensor to the dedicated auxiliary 12C port of the module. When the SPI (or 12C) is connected to the host MCU, developers can use the auxiliary 12C interface (AUX_CL) of the TDK pipe flow transmission InvenSense ICM-20948 module to connect the external sensor to the AUX_DA and manage it through the special register of the auxiliary device of the LCM-20948.
Product Features:
● 9-axis device with the lowest power consumption, and the power is 2.5 mW
● 3-axis gyroscope with programmable FSR
● 250dps, 500dps, 1000dps and 2000dps
● 3-axis accelerometer technology with 2g, ± 4g, 8g and t16g programmable FSR
● 3-axis compass, 4900 T large range
● On board digital motion processor (DMP for Android
● Support auxiliary 2C interface for external sensors
● On chip 16 bit ADC and programmable filter
● 7MHz SPI or 400kHz fast mode IC
● Digital output temperature sensor
● The working range of VDD is 1.71V to 3.6V
● MEMS structures are sealed and bonded at the wafer level

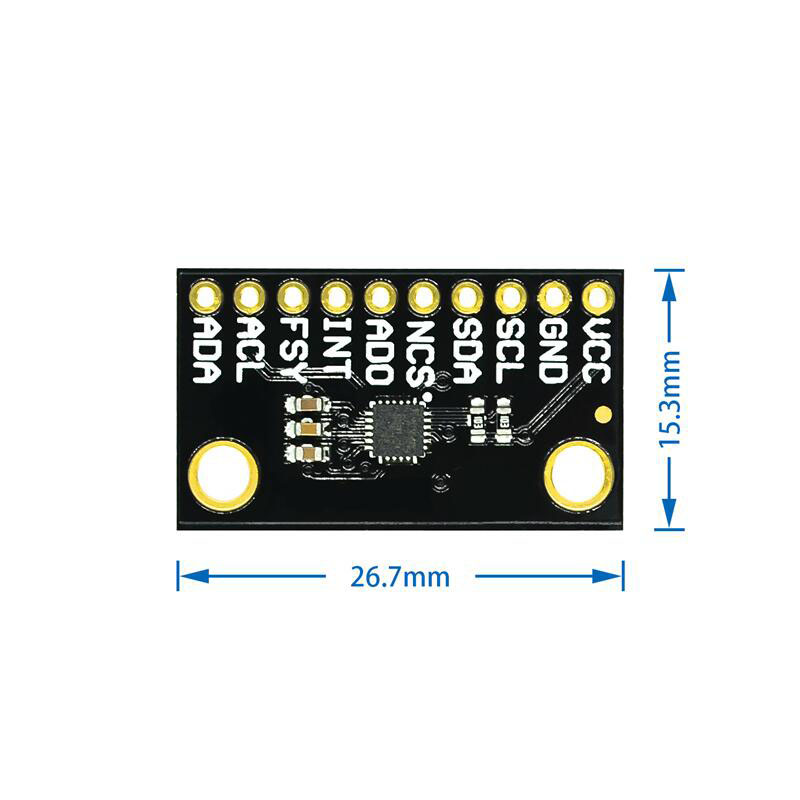

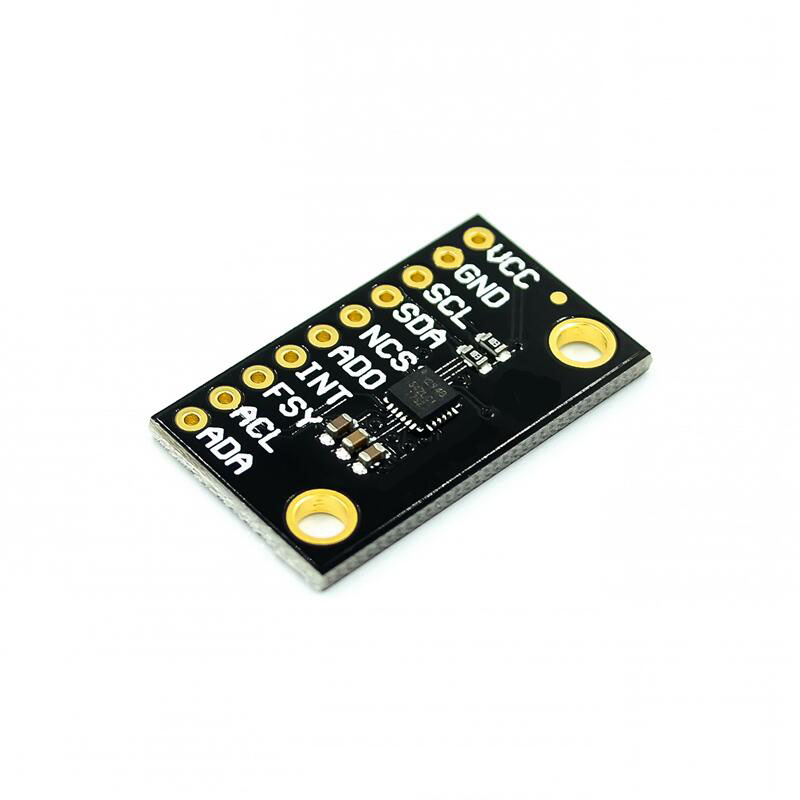

Pin Description:
● VCC: power terminal
● GND: Ground wire
● SCL: I2C serial clock interface
● SDA: I2C serial data interface
● NCS: used to read all data from MPU and configure MPU and external sensors
● ADO: SDO pin if SPI is used
● INT: interrupt pin
● FSY: related to external sensors
● ACL: auxiliary 12C serial clock line
● ADA: auxiliary 12C serial data line
