TA2024 Digital Power Amplifier Board On-Board Computer HIFI Automobile Audio Digital Power Amplifier Board 2*15WItem NO.: TA2024 2X15W
-
Customized Requirements
- Quantity
-
-
- Product Name: TA2024 Digital Power Amplifier Board On-Board Computer HIFI Automobile Audio Digital Power Amplifier Board 2*15W
- Item NO.: TA2024 2X15W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Digital Power Amplifier Board , TA2024 , 2*15W
- Creation Time: 2024-04-30

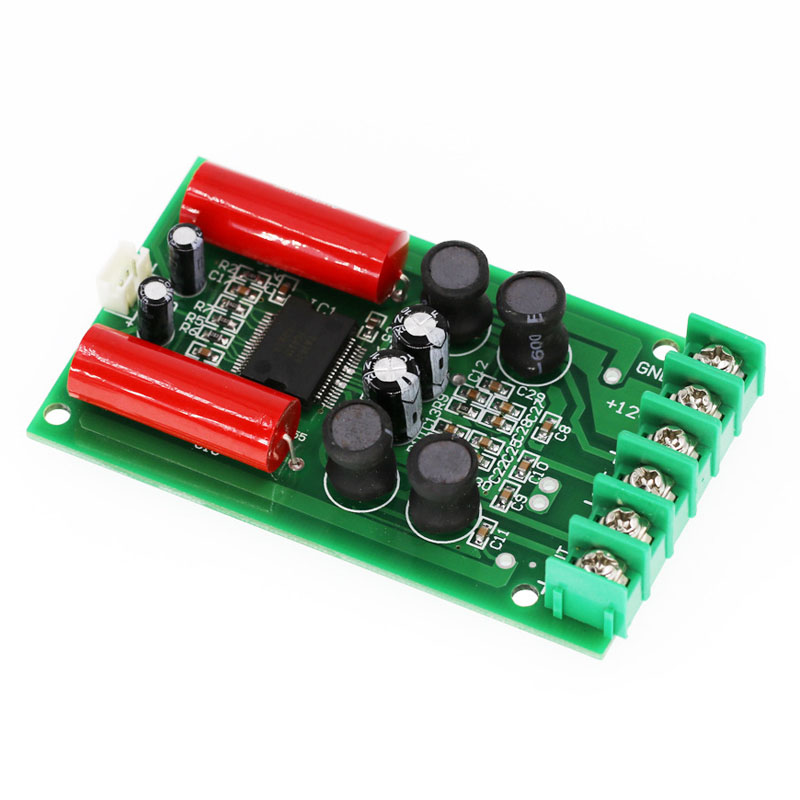

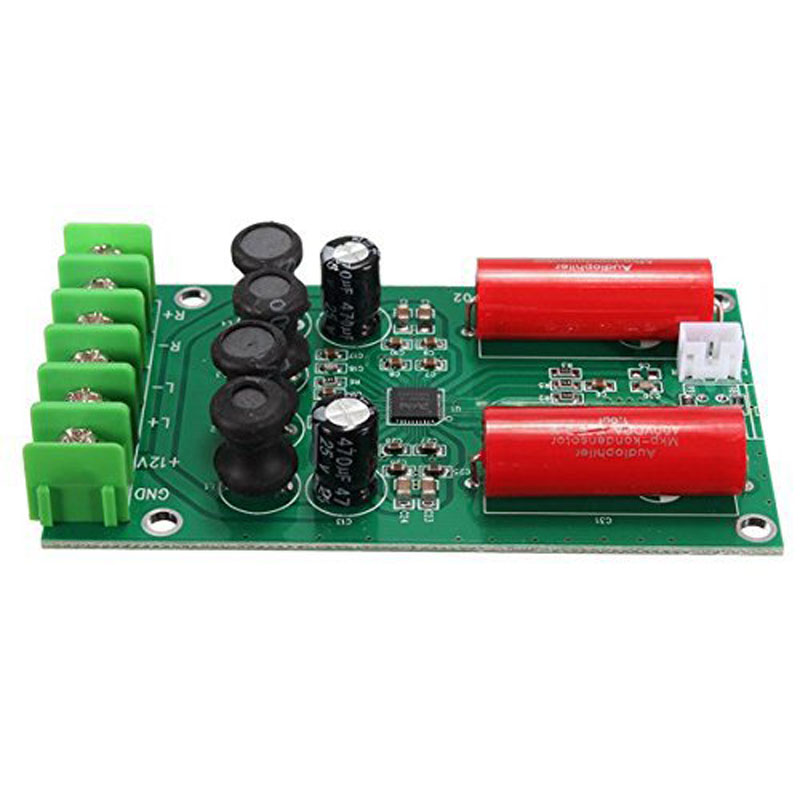

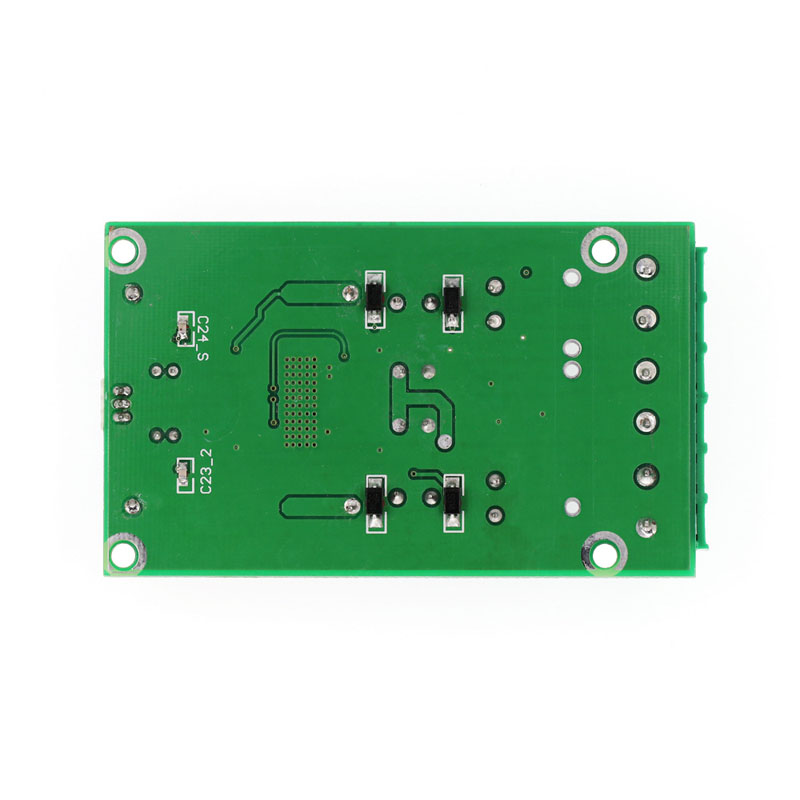

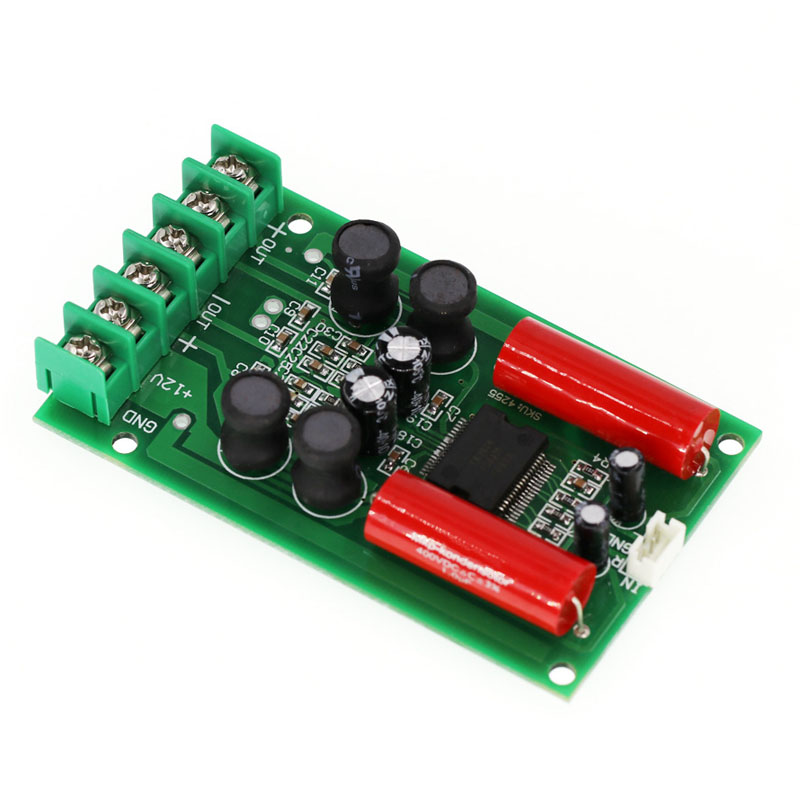

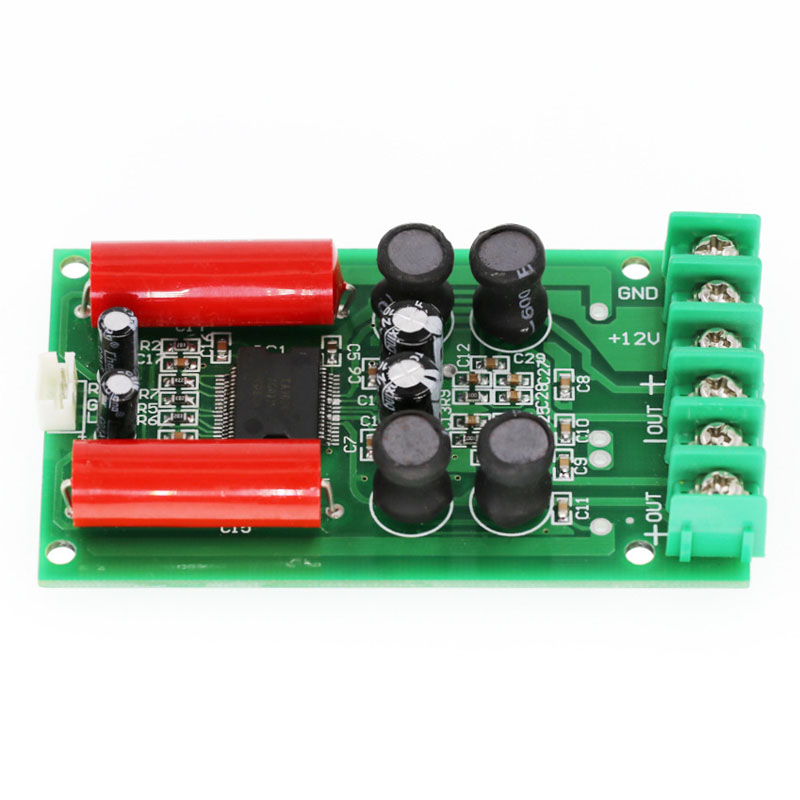

TA2024 Audio Digital Power Amplifier Board
Matters Needing Attention:
1. The power supply should have a 12V current of more than 3A
2. It is better to use the horn with impedance of 4 ohms and higher sensitivity,
3. For some sound sources with relatively low signal level, pre-amplifier should be added to produce the effect
4. Pay attention that the positive and negative poles cannot be connected reversely, and use a regulated power supply
Electrical Characteristics:
● Own digital processing technology
● Requires a single+12V power supply
● Output power (@ VS=12V per channel):
● 15W per channel (4 Ω, 10% total harmonic distortion+noise)
● 10W per channel (4 Ω 0.1%, total harmonic distortion+noise)
● A simple engineering evaluation platform for TA2024C products for Tripath technology.
● "High fidelity performance" generally refers to:
● 0.04% total harmonic distortion+noise (9Wrms, 4 Ω)
● 0.18% intermodulation distortion (1Wrms, 4 Ω)
● Efficiency ->88% @ full power (RL=8 Ω)
● Radiators are not required for each channel up to 15w
● MUTE and SLEEP inputs.
● Integrated circuit that can eliminate knock noise when switching on and off.
● Intelligent short circuit protection.
● Intelligent overheat protection
● It can be connected to any passive 4/8 Ω speaker.
● It is compatible with the standard audio cable of any sound system.
● Economical two-layer PCB design.
● 36-pin power supply SOP package
