- Product Name: TDA7297 Amplifier Module TDA7297 Audio Amplifier Module Dual Channel 15W+15W
- Item NO.: TDA729715W15W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: TDA7297 , 15W+15W , Audio Amplifier Module , Amplifier Module
- Creation Time: 2024-04-30

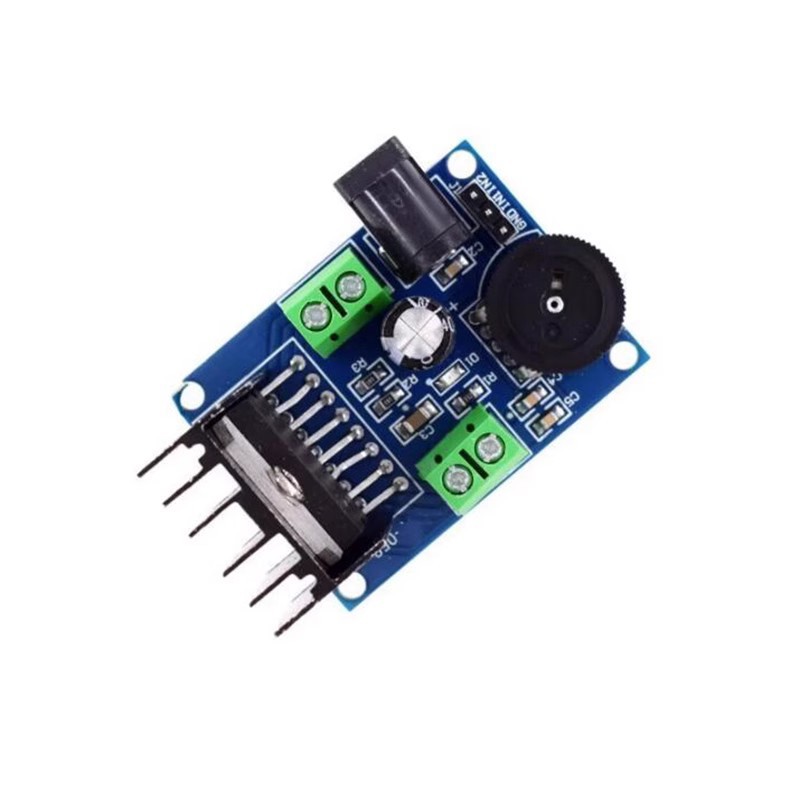

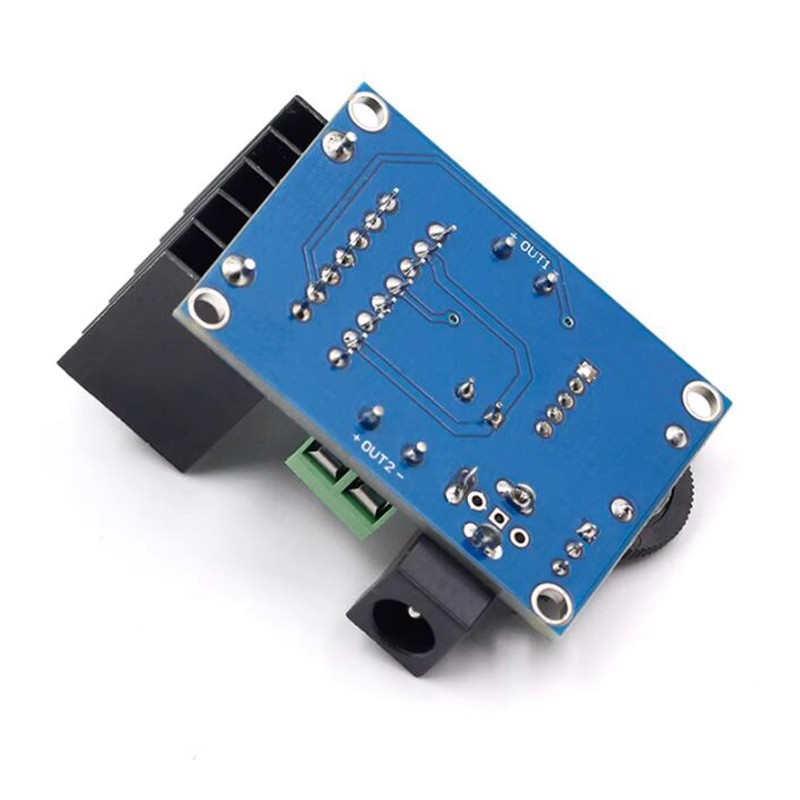

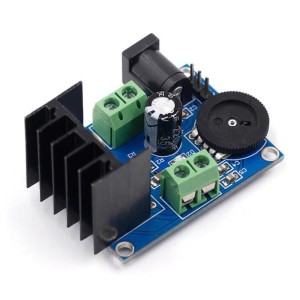

TDA7297 Amplifier Module

Product Description:

1. On board TDA7297 audio amplifier chip, dual channel 15W+15W, suitable for use with 4-8 ohm 10-50W speakers;

2. The main pins of the chip have been led out, making it convenient for external device control. There are two 5.08 (mm) spacing 2P terminals on the board, which are respectively used for left and right channel wiring output;

3. On board dial potentiometer, which can adjust the volume output size;

4. The power input method is DC5.5 * 2.5 seats;

5. Working voltage: 6-18V;

6. Board size: 45 (mm) x 33 (mm)
