TDA7492P Bluetooth Amplifier Board Bluetooth Audio Receiving Amplifier Bluetooth CSR 4.0 Digital Amplifier BoardItem NO.: TDA7492P Bluetooth amplifier
-
Customized Requirements
- Quantity
-
-
- Product Name: TDA7492P Bluetooth Amplifier Board Bluetooth Audio Receiving Amplifier Bluetooth CSR 4.0 Digital Amplifier Board
- Item NO.: TDA7492P Bluetooth amplifier
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Digital Amplifier Board , Bluetooth Amplifier Board , TDA7492P , Bluetooth Audio Receiving Amplifier , CSR 4.0
- Creation Time: 2024-04-30

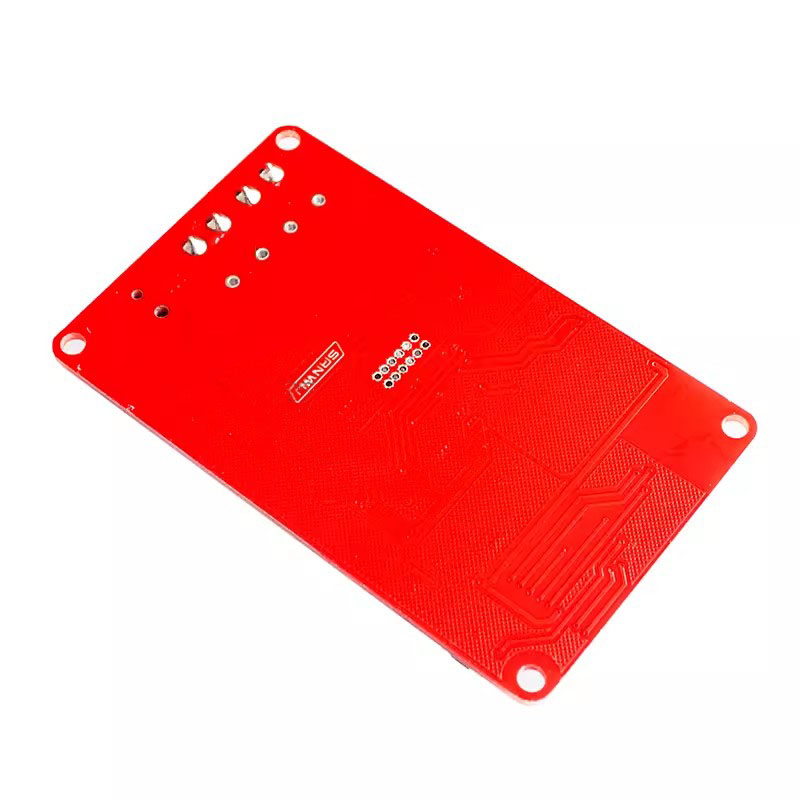

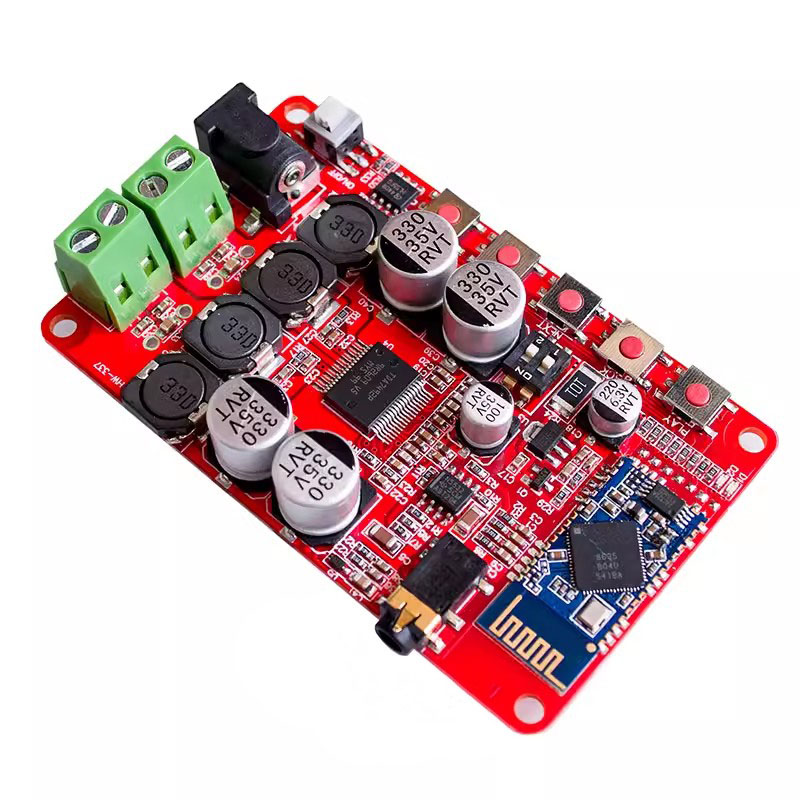

TDA7492P Bluetooth Amplifier Board
Product Information:
● The product has been upgraded with power input reverse connection protection
● This item will automatically enter pairing mode after being powered on, and search and display the device name: SANWU Audio (customized device name can be provided for batch demand)
● Power supply: 2.1 interface DC 8~25V power supply
● Audio source input: Stereo input of various versions of Bluetooth connection, using CSR 8635 Bluetooth chip, Bluetooth V4.0, software compatibility
● Output impedance: 8 ohm is good (it can drive 4, 6, 8, 16 ohm impedance speakers)
● Output power: the output power of the previous stage 5532 is sufficient
● The dial switch can be more convenient to directly adjust the gain of the rear stage power amplifier, and the horn with large driving damping
Specifications:
●Supply Voltage: DC 8-25V
●Power Interface: 2.1 DC Socket
●Audio Input: Bluetooth Receiver V4.0
●Audio Output: Terminals
●Output Power: Add Pre-5532 Output Foot
●Applicable Speaker Impedance: 4/6/8/16 ohm
●Number of Channels: Two-channel Stereo
●PCB Board Size: 82 * 50mm / 3.23 * 1.97in
●Weight: 37g / 1.32oz
Note:
If you use external audio, you need connect 3.5mm audio line;
If you directly use Bluetooth, when power on, wait 3-10s, until LED blue and red light flashing alternately, then you can use your device to find the Bluetooth module then connect it. You can directly use it.
Package List:
1 * Bluetooth 4.0 Audio Power Amplifier Board
