Home>Electronic Modules>Development Board>UNO R3 V5.0 Sensor Expansion Board Sensor Shield V5.0 Robot Accessories Electronic Building Blocks Blue Version
UNO R3 V5.0 Sensor Expansion Board Sensor Shield V5.0 Robot Accessories Electronic Building Blocks Blue Version

UNO R3 V5.0 Sensor Expansion Board Sensor Shield V5.0 Robot Accessories Electronic Building Blocks Blue VersionItem NO.: MK01963

US$ 3.75
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
UNO R3 V5.0 Sensor Expansion Board Sensor Shield V5.0 Robot Accessories Electronic Building Blocks Blue Version
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

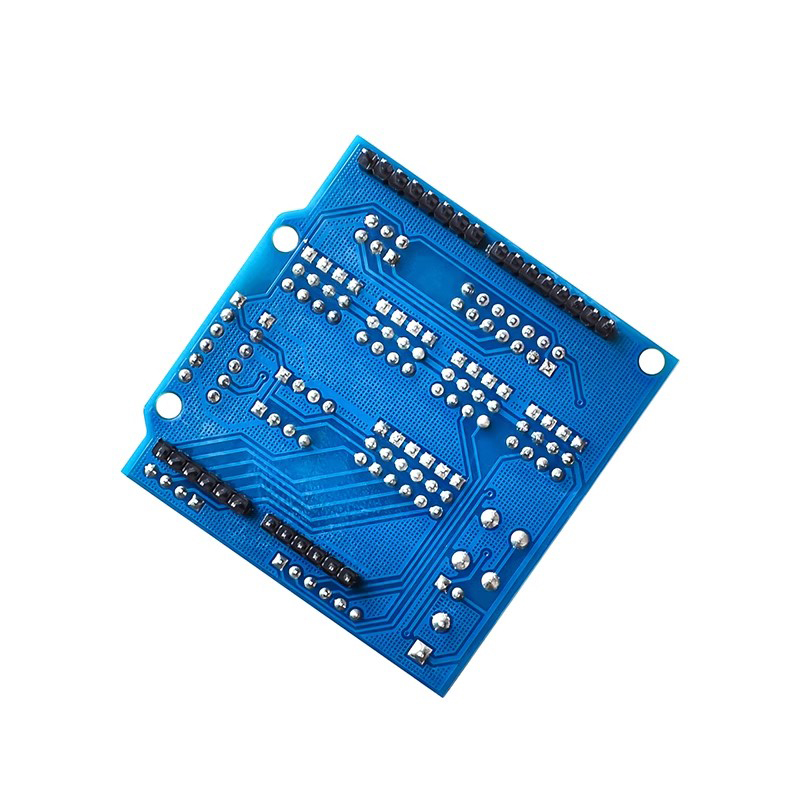

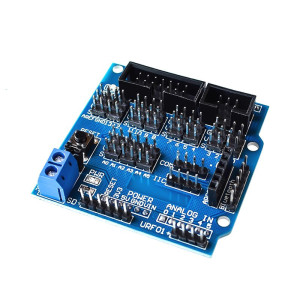

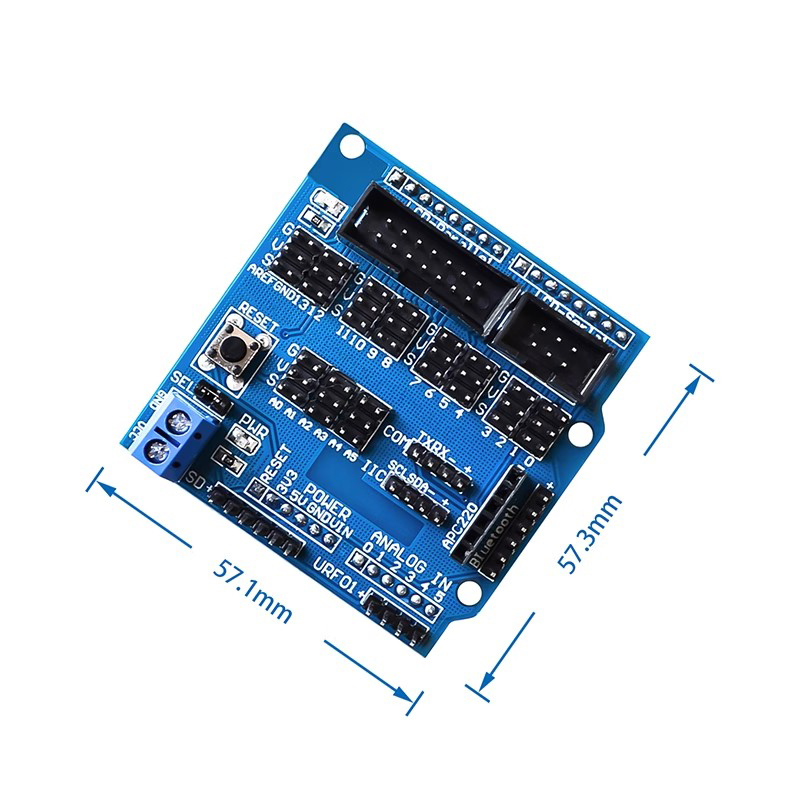

  • UNO R3 V5.0 Sensor Expansion Board



    Product Information:



    The newly launched Arduino Sensor Shield V5.0 sensor expansion board retains the advantages of the V4.0 version, but still adopts a stacked design and PCB sinking process processing.



    The motherboard not only extends all the digital and analog interfaces of the Arduino Duemilanove 2009 controller in the form of servo wire sequence, but also has special IIC interfaces, 32 channel servo controller interfaces, Bluetooth module communication interfaces, SD card module communication interfaces, APC220 wireless RF module communication interfaces, RB URF v1.1 ultrasonic sensor interfaces, 12864 LCD serial and parallel interfaces, which are independently expanded for easier and more convenient use.



    For Arduino beginners, there is no need to worry about cumbersome and complex circuit wiring. This sensor expansion board truly simplifies the circuit and can easily connect commonly used sensors. A sensor only requires a universal 3P sensor connection line (regardless of digital or analog connection lines). After completing the circuit connection, Write the corresponding Arduino program and download it to the Arduino Duemilanove controller to read sensor data or receive wireless module feedback data. After calculation and processing, you can easily complete your own interactive work.
