RCWL-1005 10MM Integrated Open Ultrasonic Ranging Module GPIO Serial Port IIC Single BusItem NO.: RCWL-1005
-
Customized Requirements
- Quantity
-
-
- Product Name: RCWL-1005 10MM Integrated Open Ultrasonic Ranging Module GPIO Serial Port IIC Single Bus
- Item NO.: RCWL-1005
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: RCWL-1005 , 10MM , Integrated Open Ultrasonic Ranging Module
- Creation Time: 2024-04-12

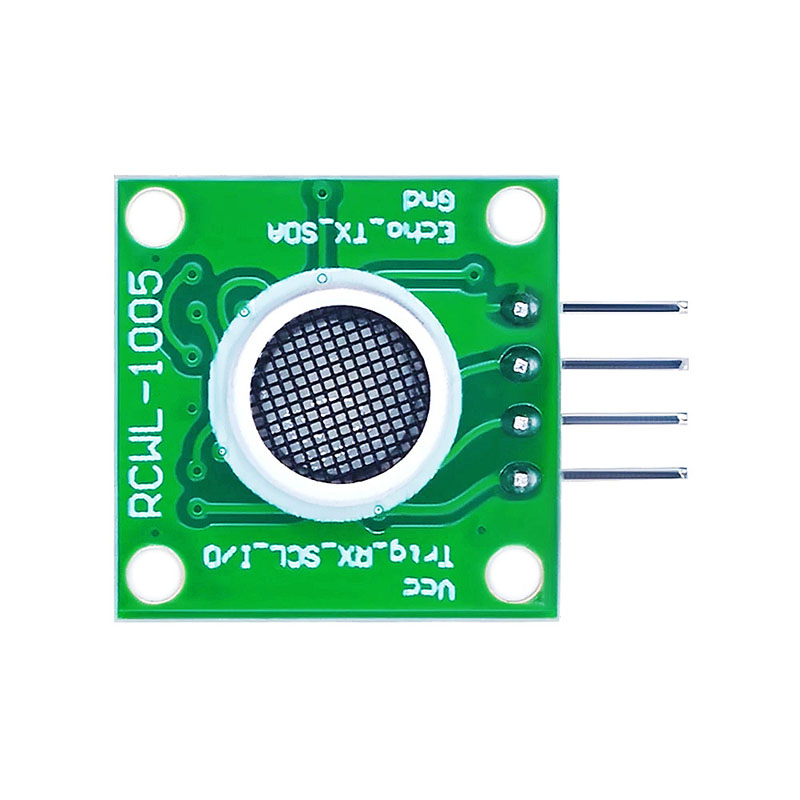

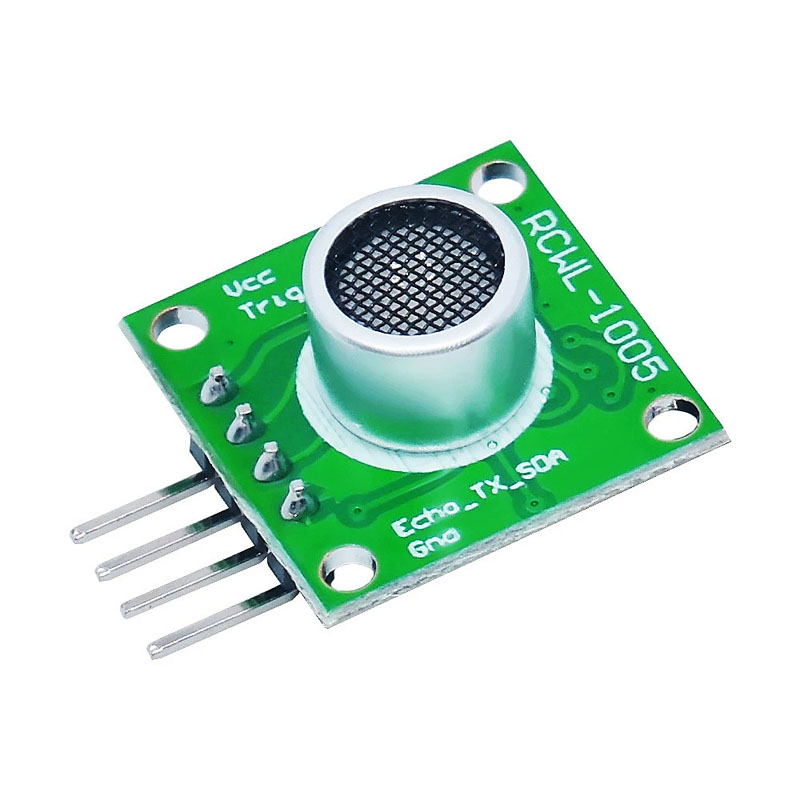

RCWL-1005 10MM Integrated Open Ultrasonic Ranging Module
Product Introduction:

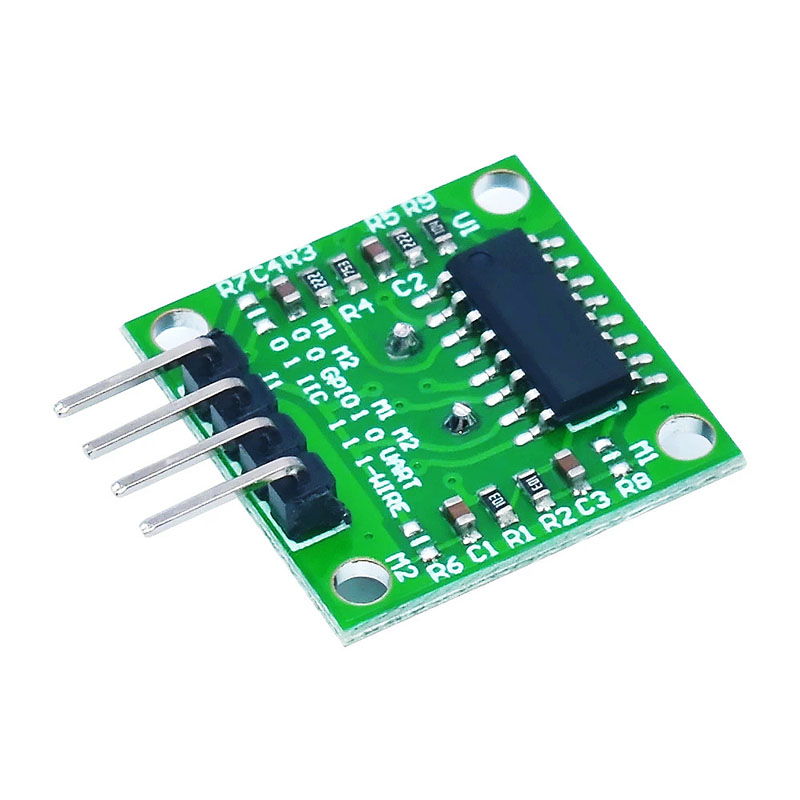

RCWL-1005 is a transceiver integrated ultrasonic ranging module designed using RCWL-9624.
By default, the software is fully compatible with HC-SR04, and can be set to UART, 1IC, or single bus mode through a resistor. The 25CM ultra small blind zone, 4.5M typical farthest range, and 2mA ultra low operating current are used. The chip RCWL-9624 is used to make its periphery more concise, with a wider operating voltage (2.8-5V), and more interface functions.
Main Features:
● Adopt professional chip RCWL-9624
● Working voltage: 2.8-5V
● Working current: 2mA
● Support multiple output modes of GPI0, UART, 1IC, and 1-WIRE, and the default output mode is compatible with HC-SR04
● 50mS cycle

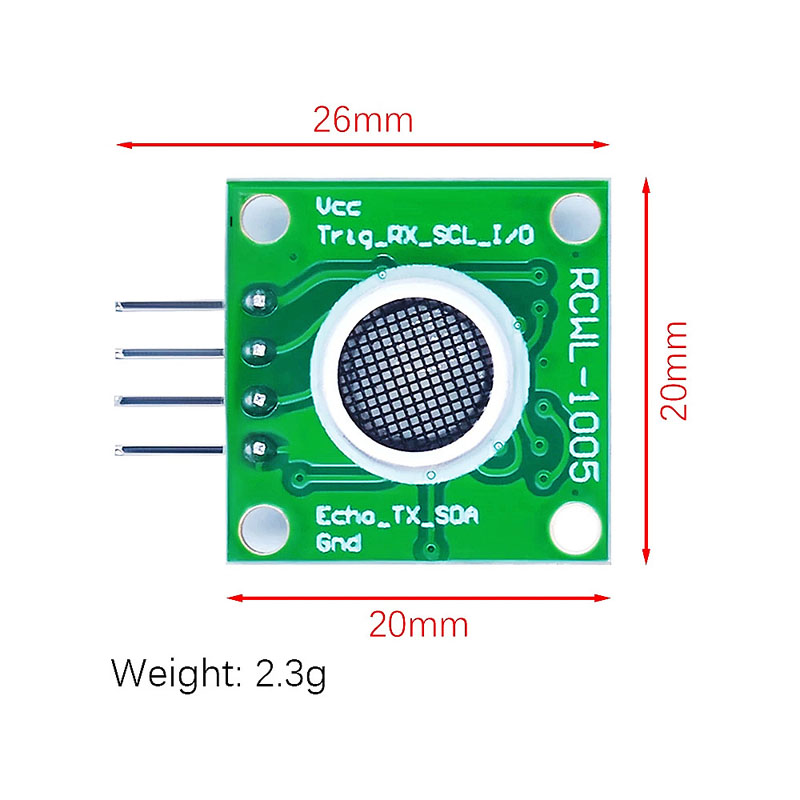

● Size: 20 * 20MM
