Customized Requirements
- Quantity
-
-
- Product Name: UV Sensor Module UV Detection Module
- Item NO.: UV sensor module
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: UV Sensor Module , UV Detection Module
- Creation Time: 2024-05-05

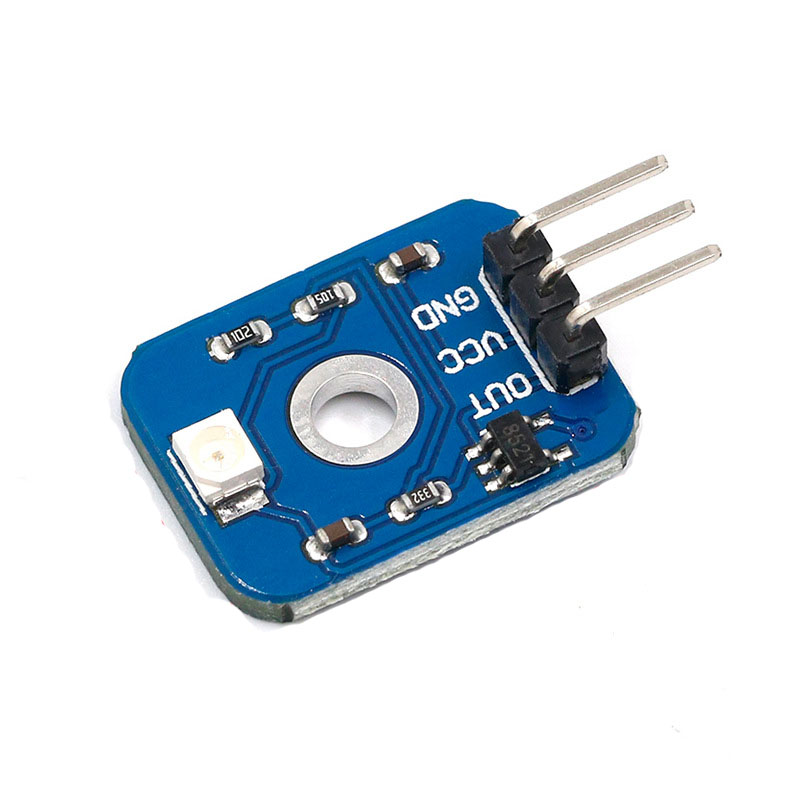

UV Sensor Module
Product Overview:
● It is specially designed for occasions requiring high reliability and accuracy to measure ultraviolet index (UVI);
● Suitable for measuring the total ultraviolet intensity of sunlight;
● Compare with the World Health Organization UV index grading standard
● Detection UV wavelength: 200-370nm;
● Very fast response and full interchangeability;
Product Parameters:
● Working voltage: 3.3V~5V
● Output voltage: DC 0~1V (corresponding to UV index level 0~10)
● Test accuracy: ± 1UV INDEX
● Response wavelength: 200nm~370nm
● Working temperature: - 20 ℃~85 ℃
● Response time: less than 0.5 seconds
● Working current: typical value 0.06mA, maximum value 0.1mA

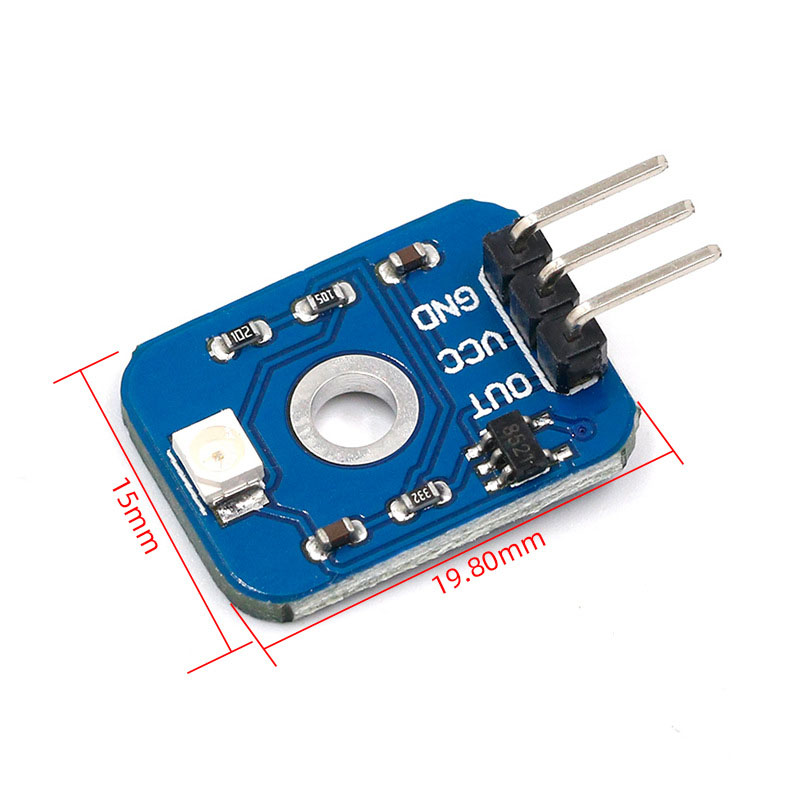

● Size: 19.8mm * 15mm

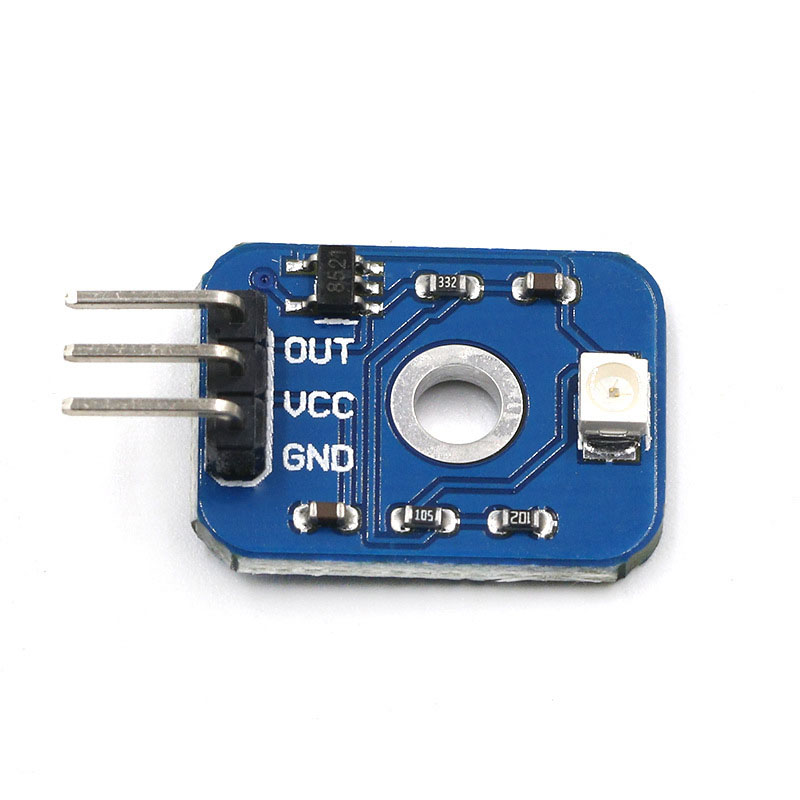

Wiring Mode:
● VCC - positive input port of power supply, connected with 3.3V-5V voltage
● GND-GND is the negative input port of power supply
● OUT-OUT is the analog signal output port, which links the I/O port of MCU
Be Careful:
Arduino players should set the I/O port of MCU to input mode/receive mode, otherwise it cannot be used. Other MCUs, or more advanced control boards such as Arm, must be set to input mode/receive mode if I/O port is set to input/output mode, otherwise it cannot be used. 51 series single chip microcomputer can be used directly without setting input and output mode.
