IRF520 Driver Module MOS Transistor Field-effect Transistor Microcontroller Driver Module PWM RegulationItem NO.: IRF520 MOS
-
Customized Requirements
- Quantity
-
-
- Product Name: IRF520 Driver Module MOS Transistor Field-effect Transistor Microcontroller Driver Module PWM Regulation
- Item NO.: IRF520 MOS
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: IRF520 , Driver Module , MOS Transistor Field-effect Transistor , Microcontroller Driver Module
- Creation Time: 2024-04-18

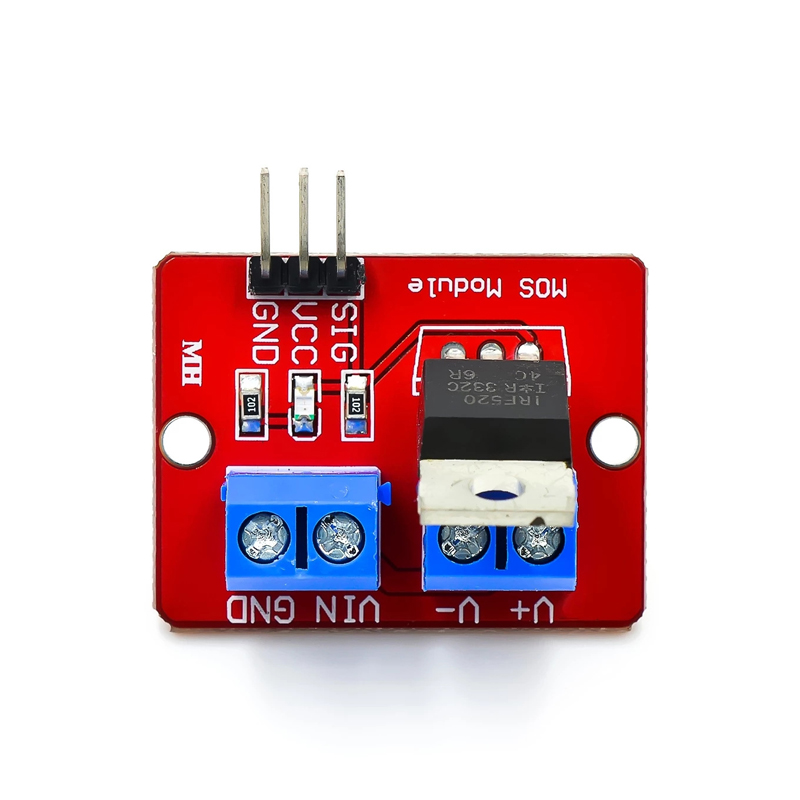

IRF520 Driver Module MOS Transformer
Product parameters:

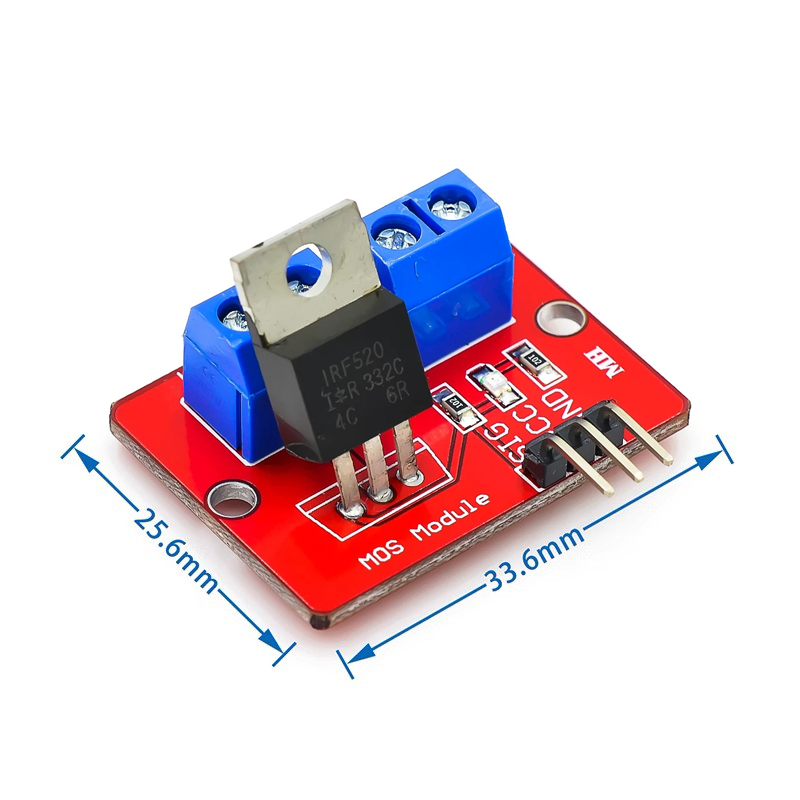

Size: 33 * 24mm
Weight: 10g
Voltage: 3.3V, 5V
Port: Digital level
Output load voltage: 0-24V
Output load current:<5A (above 1A, heat dissipation fins need to be added)
Platform: Arduino, microcontroller, ARM, Raspberry Pi
Product characteristics:
Using the original IRF520 power MOS transistor, PWM adjustable output can be achieved
Arduino can drive loads up to 24V, such as LED light strips, DC motors, micro water pumps, and solenoid valves
By using PWM modulation, LED stepless dimming and motor stepless speed regulation can be achieved
Attention: For loads above 1A, heat dissipation fins need to be installed
