Voice Module Plays Serial Port Voice Broadcast Recognition Module Voice Chip Control Module JR6001Item NO.: JR6001

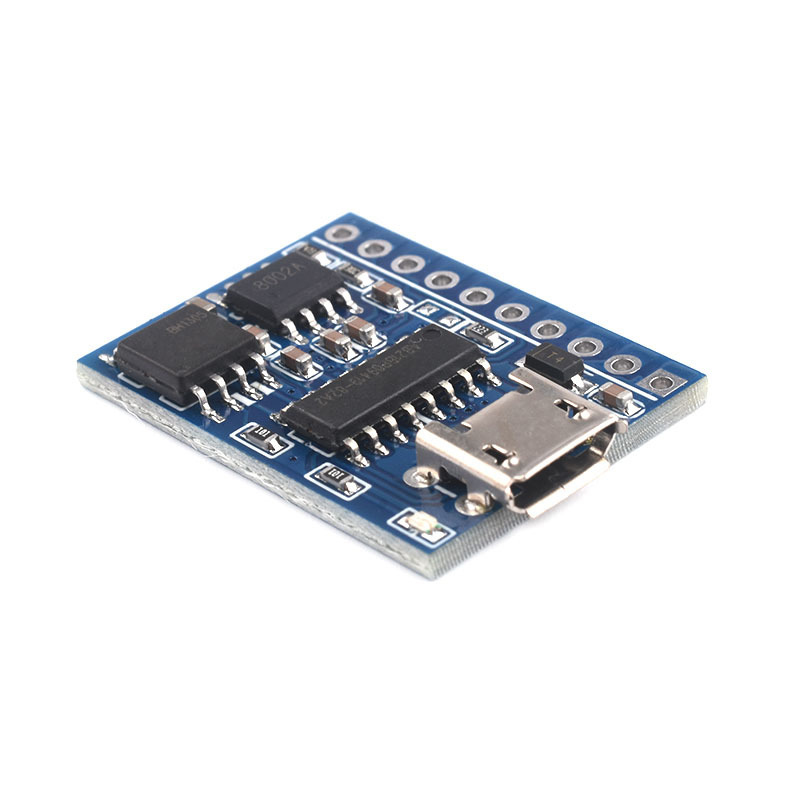

JR6001 Voice Module

Product Introduction:

This module comes with a built-in USB interface, which allows for flexible replacement of voice content within the SPI flash, eliminating the hassle of traditional voice chips requiring the installation of an upper computer to replace voice. The SPI flash is directly simulated as a USB drive, just like copying a USB drive, which is very convenient. Any computer system can support it, while other ordinary copywriting can only support voice updates for XP and WIN7 systems.

Connect the USB data cable to the module, plug it into the computer, and the computer will automatically recognize it. Then double-click on the new disk and copy the sound you want to place.

Product Parameters:

● MP3 and WAV file formats: supports audio files with sampling rates of 8-48K and bit rates of 8-320kbps

● USB interface: 2.0 standard (supports any computer operating system)

● UART interface: standard serial port, 3.3TTL level, baud rate 9600

● Input voltage: DC3.6-5.2V (4.2V recommended)

● Rated current: 10mA

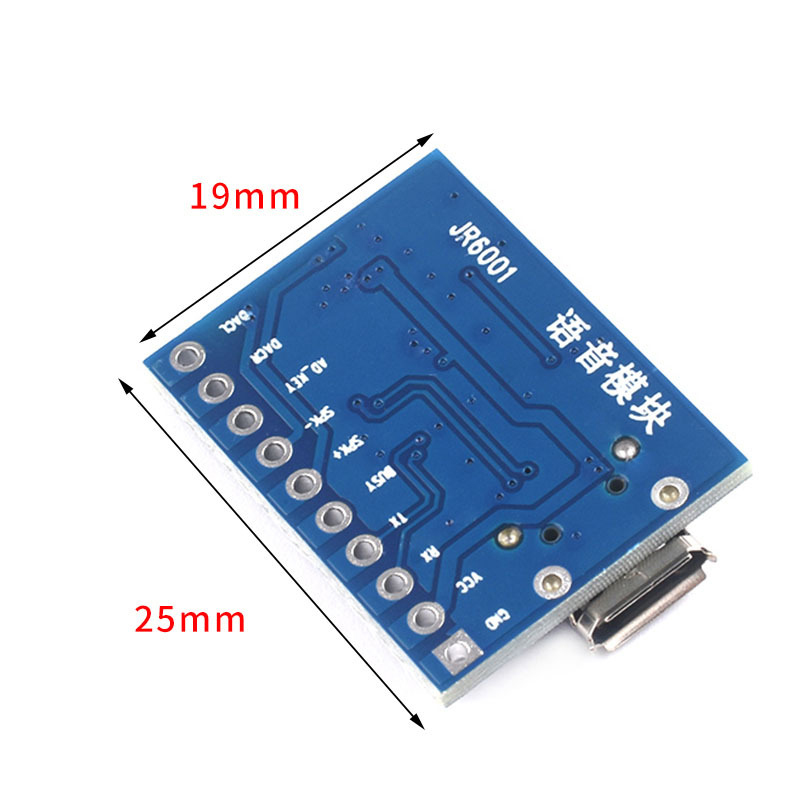

● PCB size: 19 * 25mm

● Operating temperature: -40 ° C~85 ° C

● Humidity: 5%~95%

Product Features:

1. Supports MP3 WAV high-quality audio format with beautiful sound

2. 24 bit DAC output, dynamic range support of 90dB, signal-to-noise ratio of 85dB

3. Supports two line serial port control and AD control

4. USB updates voice files without the need to install drivers or software, copying directly is fast and convenient. Supports XP systems, WIN7, WIN8, and WIN10 systems.

5. Support control of common functions such as previous track, next track, playback, pause, stop, song selection, etc.

6. Support for free combination playback

7. Supports 30 level volume adjustment

8. Support for cycle setting, more applications, and more user-friendly

9. Dedicated BUSY signal output indication

10. Mature instructions and instruction parsing, making applications more stable

11. Dedicated supporting upper computer, quick to get started, convenient for debugging, and automatic generation of instructions.

Product Application:

1. Industrial control field: industrial equipment, control equipment, etc

2. Intelligent transportation equipment: toll stations, parking stations, and in car voice prompts

3. Advertising industry, advertising language broadcasting

4. Access control, attendance: door opened, verification passed, etc

5. Security industry: human sensing prompts, safety voice prompts, and warm prompts

6. Game industry: swing machines, bumper cars, basketball machines, etc

7. Medical electronics: pagers, troubleshooting machines, etc

8. Educational communication: educational equipment, communication electronics
