Voltmeter Display DC-DC Adjustable Regulated Power Supply Buck Module With Digital Tube LM2596Item NO.: MK02405
-
Customized Requirements
- Quantity
-
-
- Product Name: Voltmeter Display DC-DC Adjustable Regulated Power Supply Buck Module With Digital Tube LM2596
- Item NO.: MK02405
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , Buck Module , Voltmeter Display , LM2596 , Adjustable Regulated Power Supply , With Digital Tube
- Creation Time: 2024-05-13

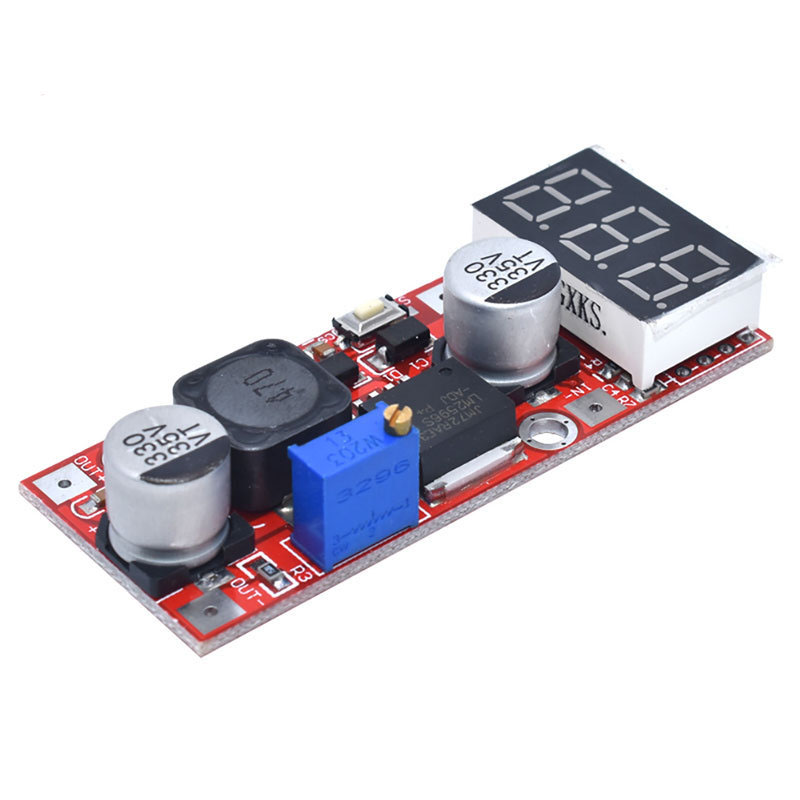

DC-DC Adjustable Buck Module With Digital Tube LM2596
Technical Indicators:
● Input voltage range: 4.5-28V Note: 28V is the maximum voltage limit, please leave room for use, otherwise it will be damaged
● Output voltage range: 1.3V-25V (in step-down mode, the input must be greater than the output voltage by more than 2V)
● Output current: continuous 1.5A output
● Output power: maximum 15W
● Ripple frequency: around 150Khz
● Ripple peak value: around 100mV
● Size: 62mm * 26mm * 14mm
● Weight: 20g/piece
● Accuracy of voltmeter: ± (5 ‰+1 word)
● Static power consumption: typically about 20ma (closely related to input voltage, output voltage and Nixie tube color, the actual current will have deviation)

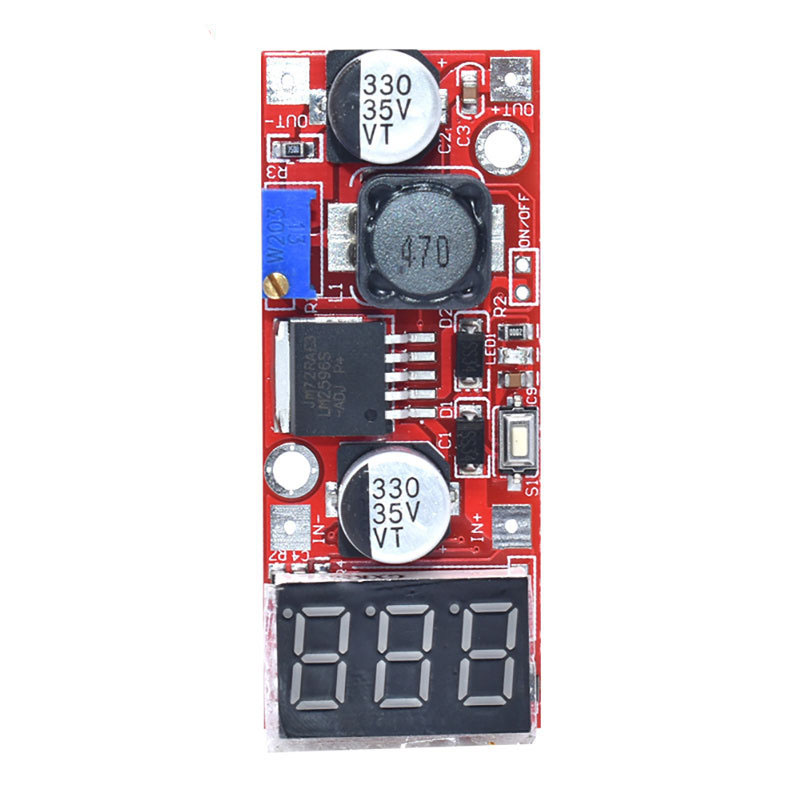

● IN+: Input positive IN -: Input negative OUT+: Output positive OUT -: Output negative
Features:
1: The input and output voltages can be displayed alternately.
2: The startup status can be freely defined.
3: Equipped with button shutdown function to reduce power consumption.
4: ON/0FF output working state, high level represents closed output, low level represents open output. Note: High level (3.3V) can output a maximum current of 5ma
Operating Mode Description:
● Output voltage mode: The default mode for startup is output voltage mode, and the LED indicator light is off
● Input voltage mode: Press the switch once to switch to input voltage mode, and the LED indicator light will light up
● Alternating mode: Press the switch again to alternately display the input/output voltage for 3 seconds (press again to restore to the output voltage display mode)
