XH-M802 Passive Tuner Front Panel Front Panel Tuner High and Low Bass Adjustment HIFI Fever Level Finished ProductItem NO.: XH-M802
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M802 Passive Tuner Front Panel Front Panel Tuner High and Low Bass Adjustment HIFI Fever Level Finished Product
- Item NO.: XH-M802
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: HIFI , XH-M802 , Passive , Tuner Front Panel Front Panel , Tuner High and Low Bass Adjustment , Fever Level Finished Product
- Creation Time: 2024-03-27

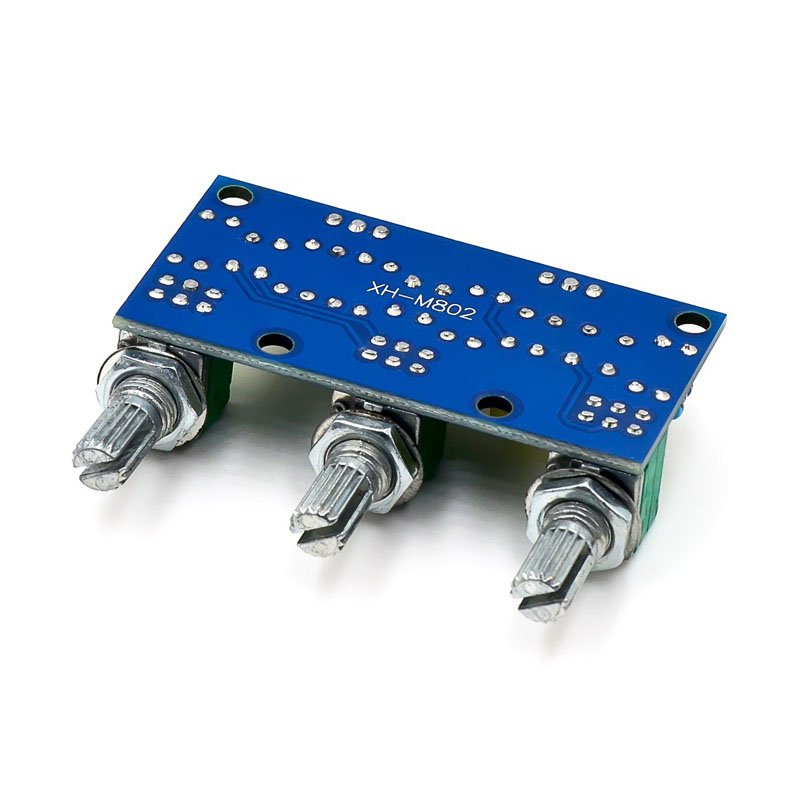

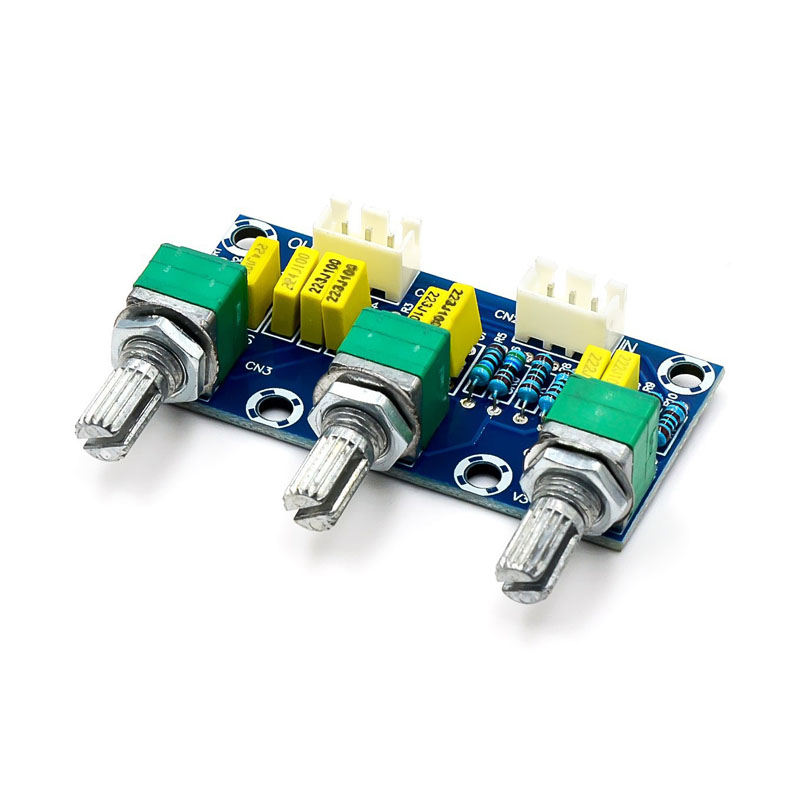

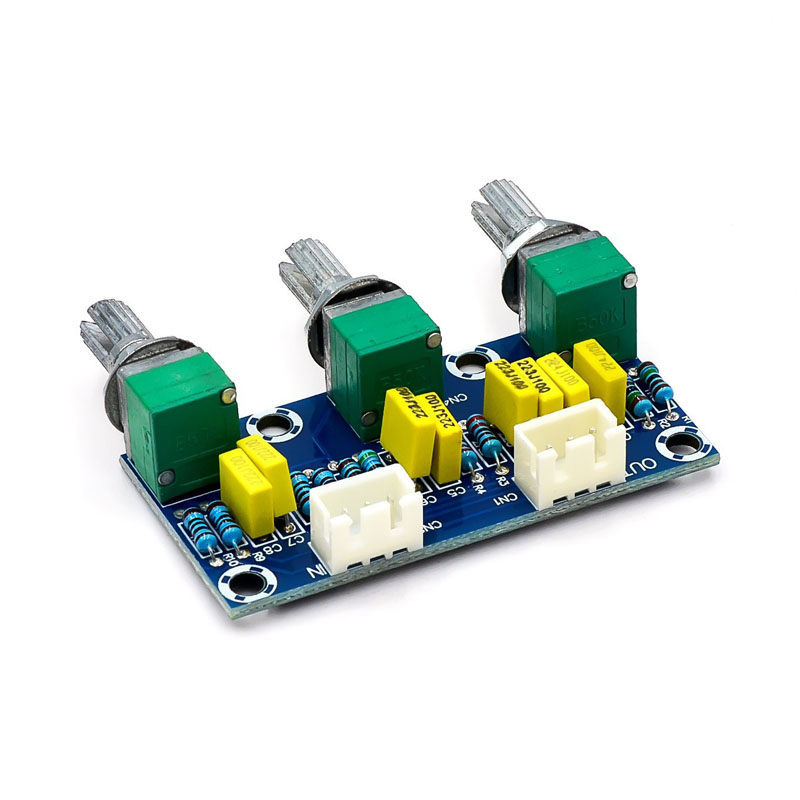

XH-M802 Passive Tone Board Front Board
Product Overview:
This type of mixer is a passive one. Its main function is to adjust the high and low volume of the input audio signal, and then send it to the power amplifier board for amplification
The principle of the product is to filter the audio signal directly through the resistance capacitance element to obtain the desired high and low pitch. The tone board does not need power, but the volume will become much smaller after processing
Main Parameters:
● Product name: Passive tone board bare board
● Adjustable items: total volume, bass and treble
● Number of channels: two channels
● Knob spacing: 22.5MM
● Socket type: 2.54-3P

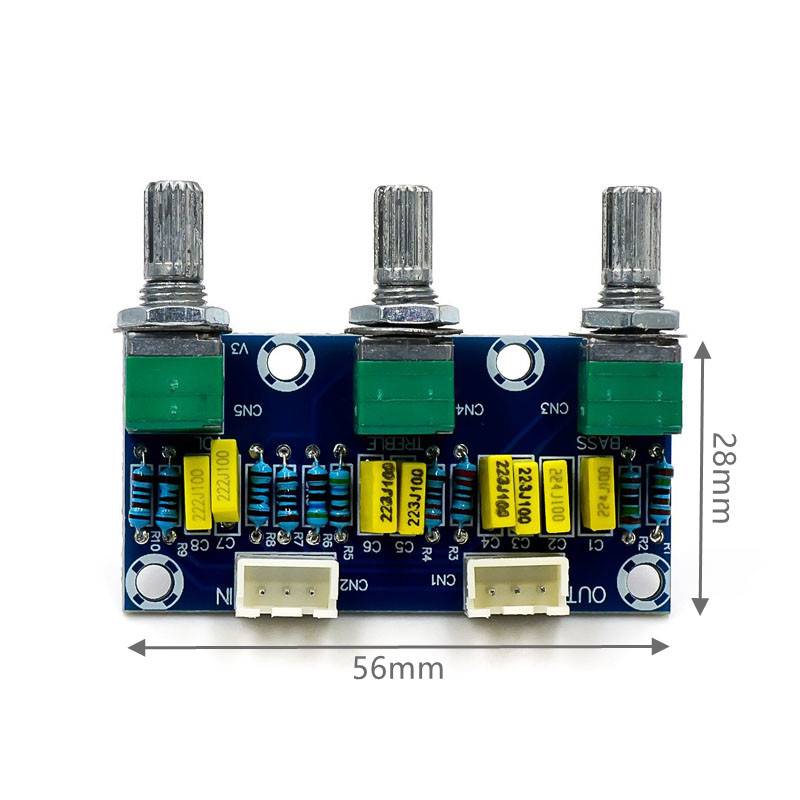

● Appearance dimension: 56 * 28MM
● Product weight: 28g
