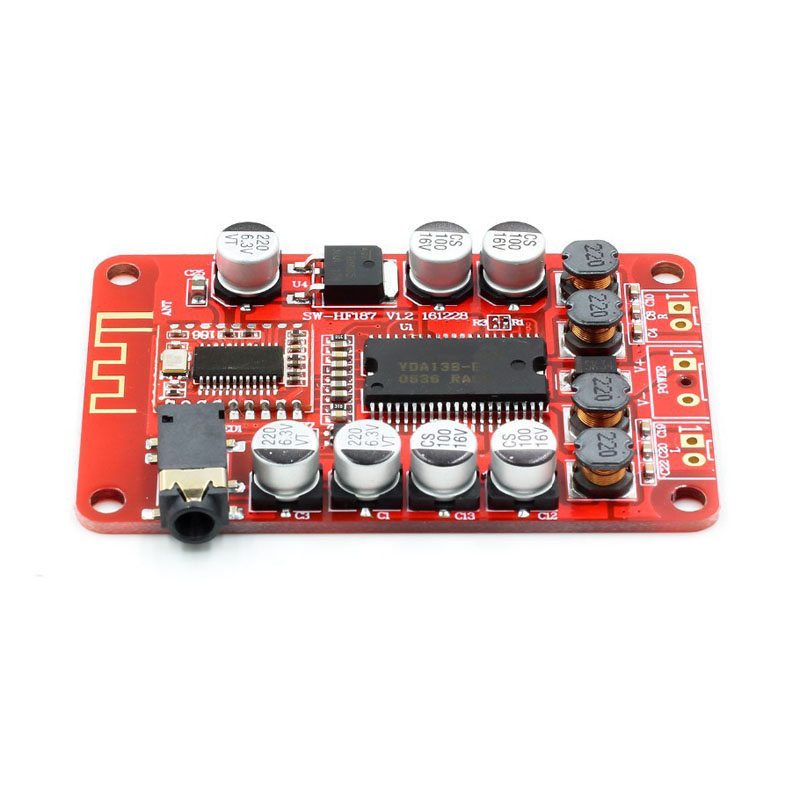

YDA138 Class D Bluetooth Digital Power Amplifier Board
Product Parameters:
● Specification and model: SW-HF187
● Power amplifier chip: YDA138
● Working voltage: 8.5~14VDC (power input with polarity protection)
● Recommended power supply: 12V DC current 2A
● Output power: 2 * 10W (8 Ω), 15W+15W (4 Ω)
● Output impedance: 4~10 Ω

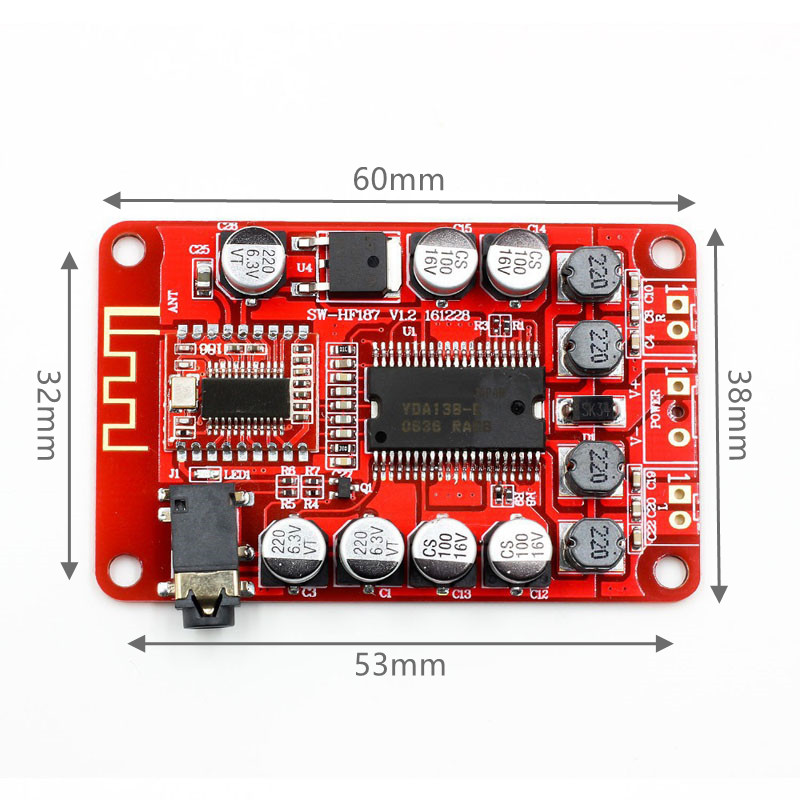

● Size: 60 * 38 * 8.8mm (length * width * height)
● Hole spacing: length 53mm * width 32mm
