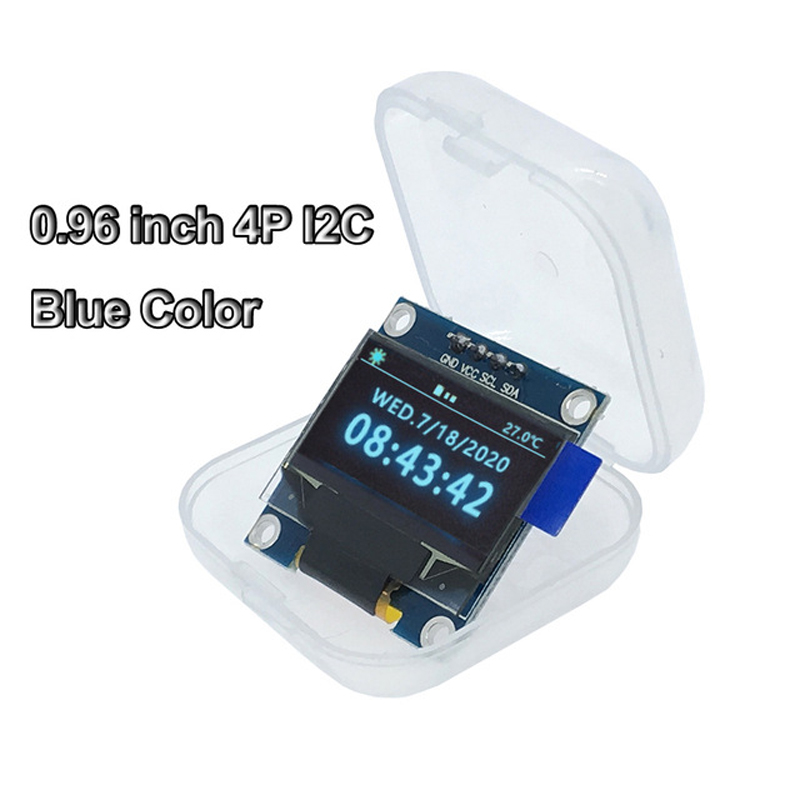

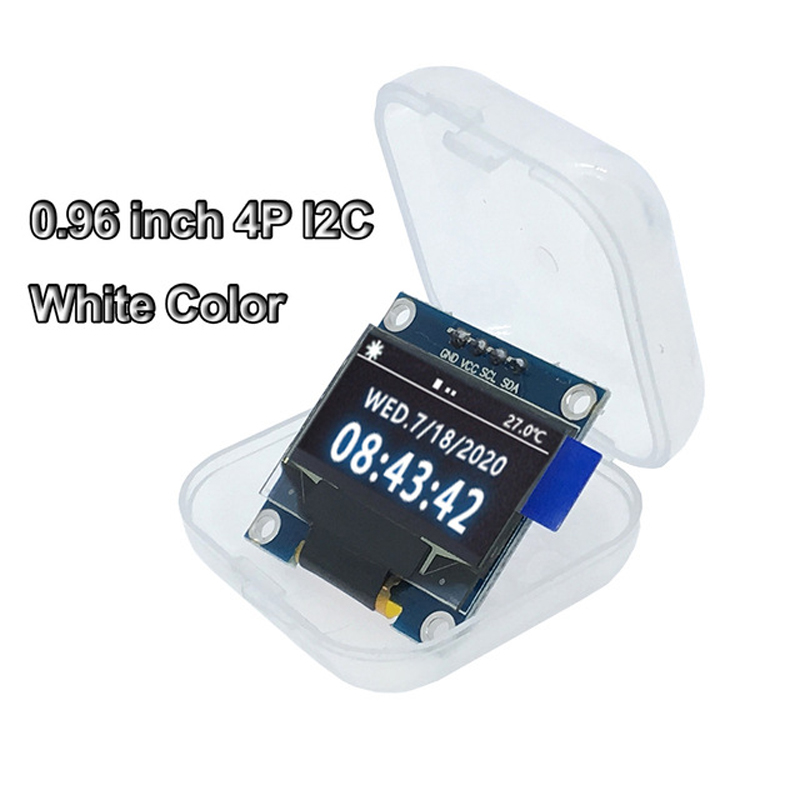

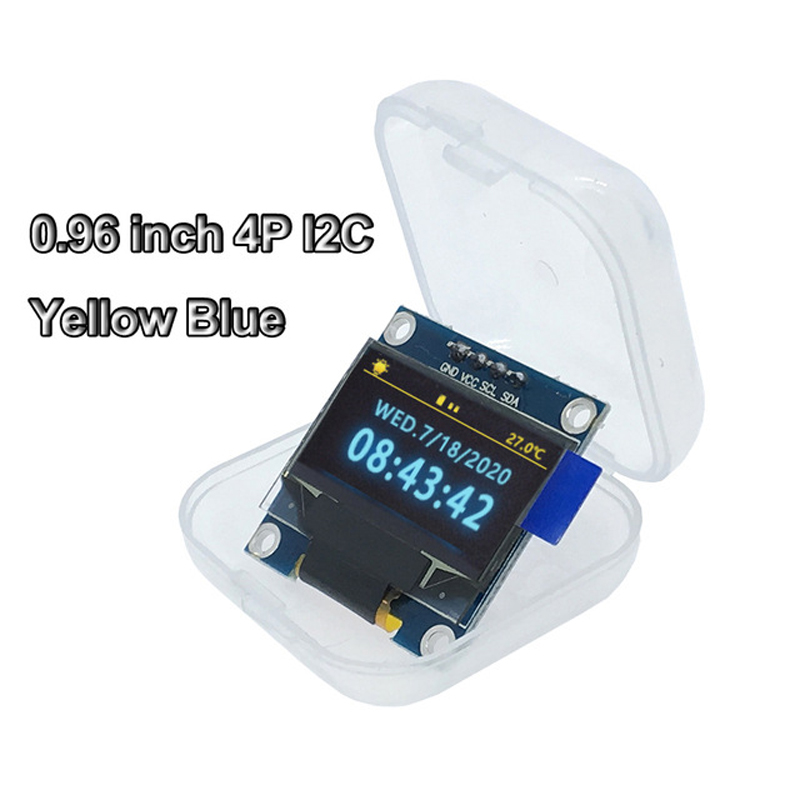

0.96 inch OLED Display Screen I2C IIC Communication 4Pin 12864 LCD Screen Module Blue/White/Yellow Blue Dual ColorItem NO.: OLED0.96-4PIN

US$ 4.22

Model

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 149999985 )

Estimate Shipping Cost

Adding to cart succeed

0.96 inch OLED Display Screen I2C IIC Communication 4Pin 12864 LCD Screen Module Blue/White/Yellow Blue Dual Color

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: 0.96 inch OLED Display Screen I2C IIC Communication 4Pin 12864 LCD Screen Module Blue/White/Yellow Blue Dual Color
- Item NO.: OLED0.96-4PIN
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: I2C , OLED , IIC , 0.96 inch , Display Screen , 4Pin , 12864 , LCD Screen Module
- Creation Time: 2024-03-27
0.96 inch OLED Display Screen 4-Pin

Main Parameters:

1. High resolution; 128 * 64 (with the same resolution as 12864LCD, but the OLED screen has more pixels per unit area).

2. Wide viewing angle:>160 degrees.

3. Low power consumption: 0.04W during normal display.

4. Wide power supply range: DC 3.3V~5V

5. Industrial grade: Working temperature range: -30 ° C~70 ° C.

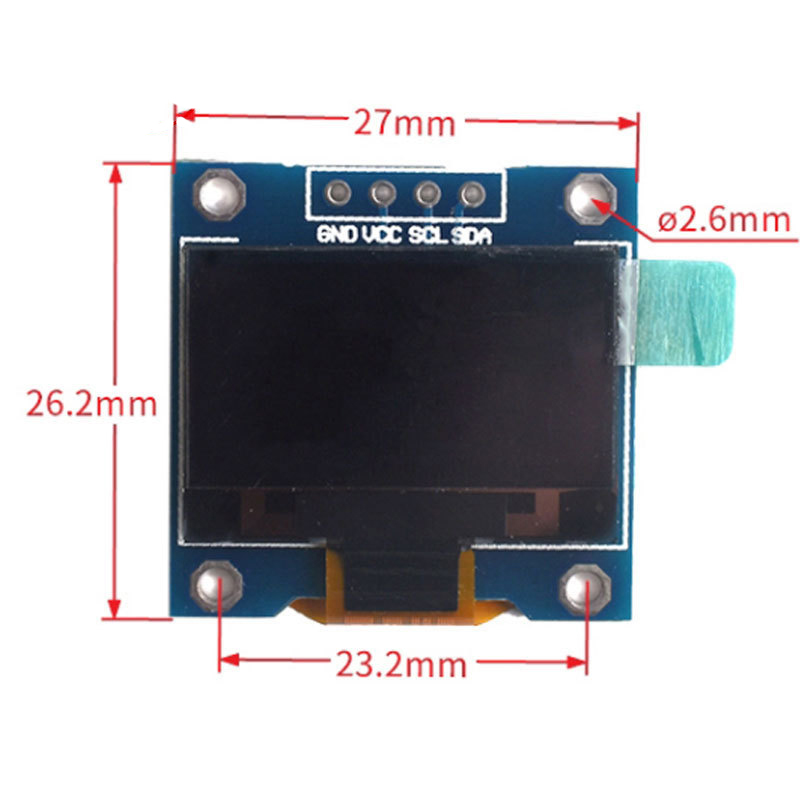

6. Small size: 27mm * 26.2mm

7. Communication method: IIC.

8. Brightness and contrast can be controlled through program instructions.

9. OLED screen internal driver chip: SSD1315

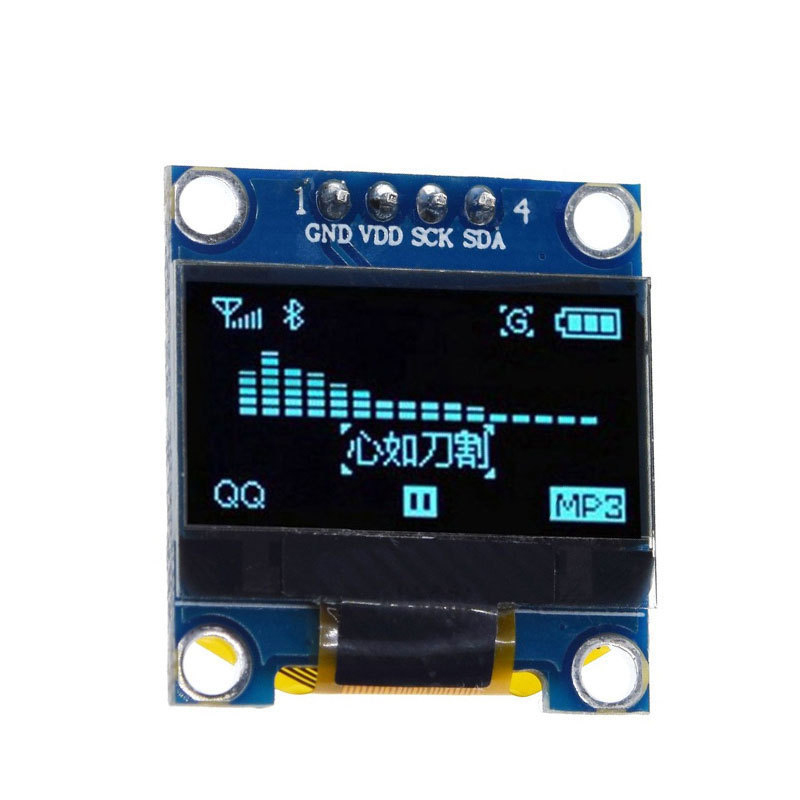

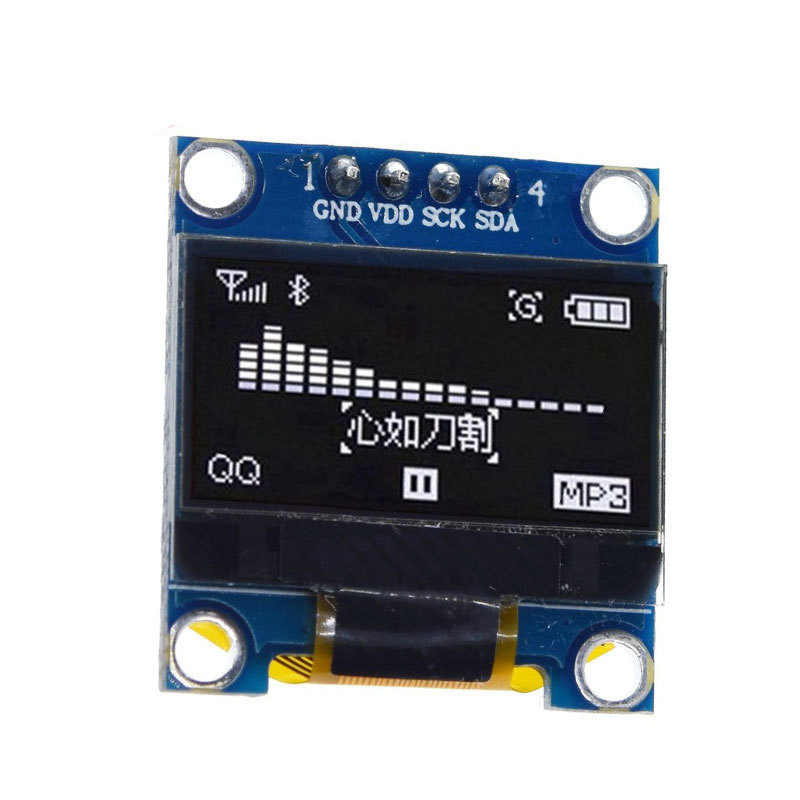

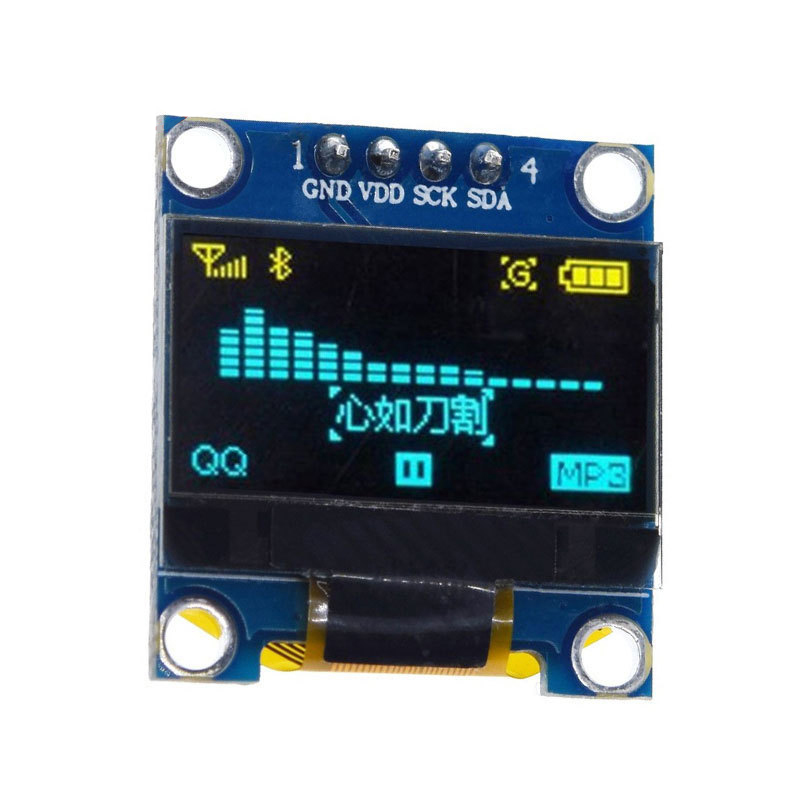

Pin Definition:

1. VCC: Power supply positive 3.3V~5V.

2. GND: Power supply negative

3. SCL: Clock signal line.

4. SDA: Bidirectional data cable.
