- Product Name: LCR-T4 Graphical Transistor Tester Resistor Capacitor ESR Thyristor Inductor MOSFET LCD Display Screen
- Item NO.: LCR-T4
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: LCR-T4 , LCD Display Screen
- Creation Time: 2024-03-27

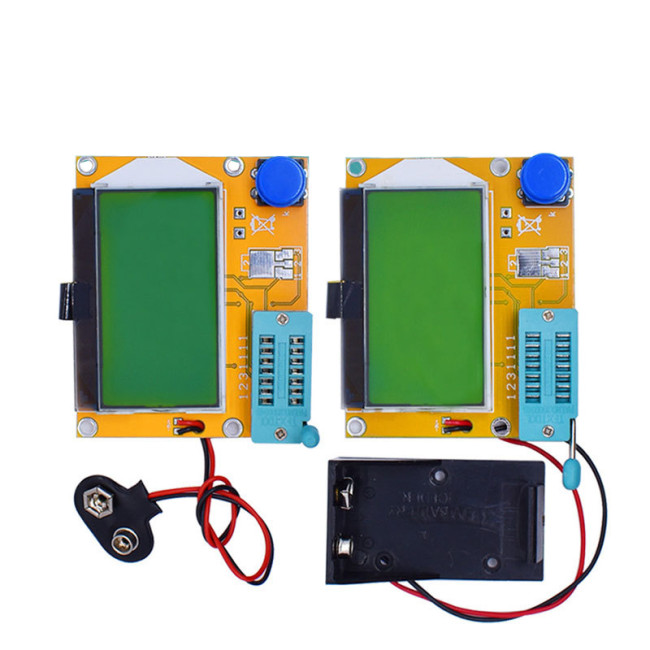

LCR-T4 Graphical Transistor Tester

Product Information:

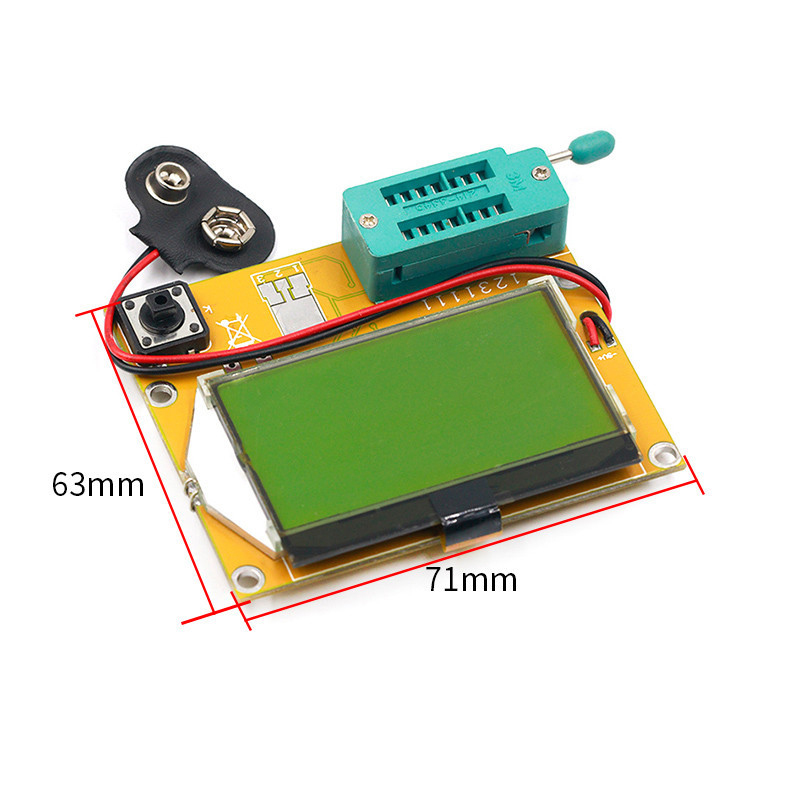

● PCB size: 63 * 71 mm Weight: about 48g

● LCR-T4 graphical multifunctional tester resistor+capacitor+diode+thyristor+inductor+transistor+mos transistor

● The LCD is 12864 LCD with backlight, and the backlight color is generally chartreuse.

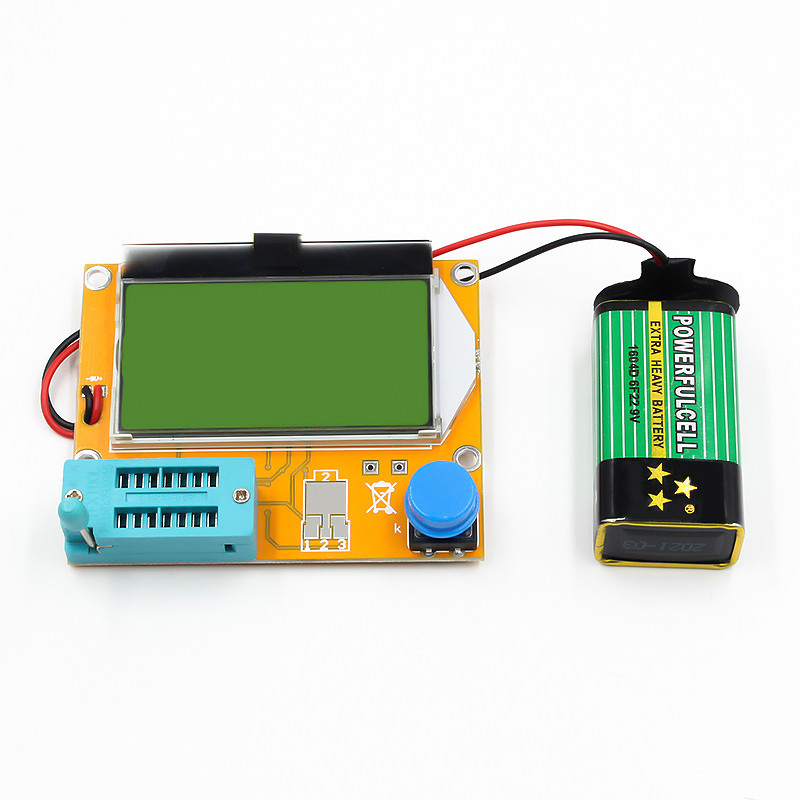

● The power supply is a 9V stacked battery. If the power is supplied for a long time, two lithium batteries can be used to form an 8.4V battery pack for power supply.

Function:

*New startup voltage detection function added

*Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors, capacitors, and other components,

*Automatically test the pins of the components and display them on the LCD

*Determine the forward bias voltage of the emitter transistor by detecting the amplification coefficient and cardinality of transistors, MOSFET protection diodes, etc

*MOSFET for measuring gate threshold voltage and gate capacitance

*Display using 12864 LCD (128 * 64 characters)

*High testing speed, validity period for component testing: within 2 seconds (except for larger capacitors, measuring large capacitors requires a longer time, and a measurement time of 1 minute is normal)

*One click operation, boot test, one click completion.

*Power consumption off mode: less than 20 nA

*The automatic shutdown function can avoid unnecessary waste, save battery energy, and improve battery life.
