2.42 Inch OLED LCD Display Module Connector 128*64 LCD Screen IIC4 Cable SPI1309 White/Yellow/Blue/GreenItem NO.: OLED2.42
-
Customized Requirements
- Quantity
-
-
- Product Name: 2.42 Inch OLED LCD Display Module Connector 128*64 LCD Screen IIC4 Cable SPI1309 White/Yellow/Blue/Green
- Item NO.: OLED2.42
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: OLED , LCD Display Module , LCD Screen , 128*64 , 2.42 Inch
- Creation Time: 2024-03-27

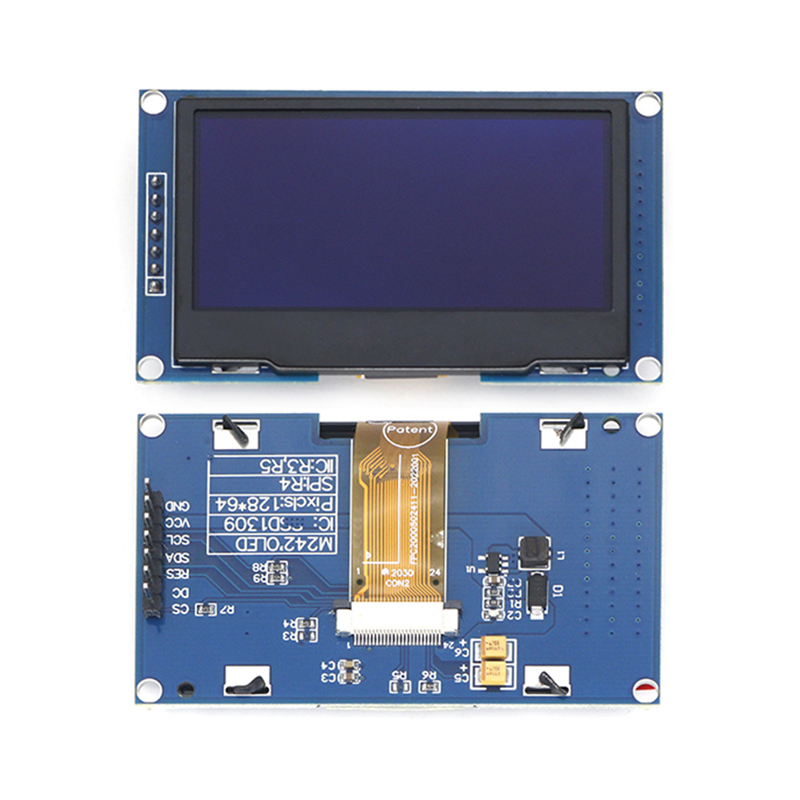

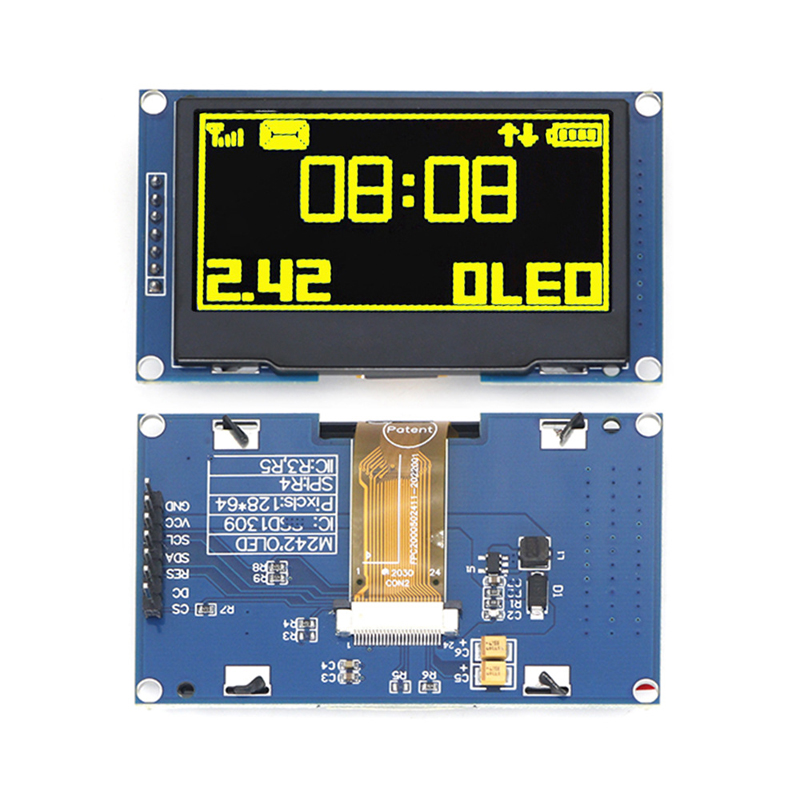

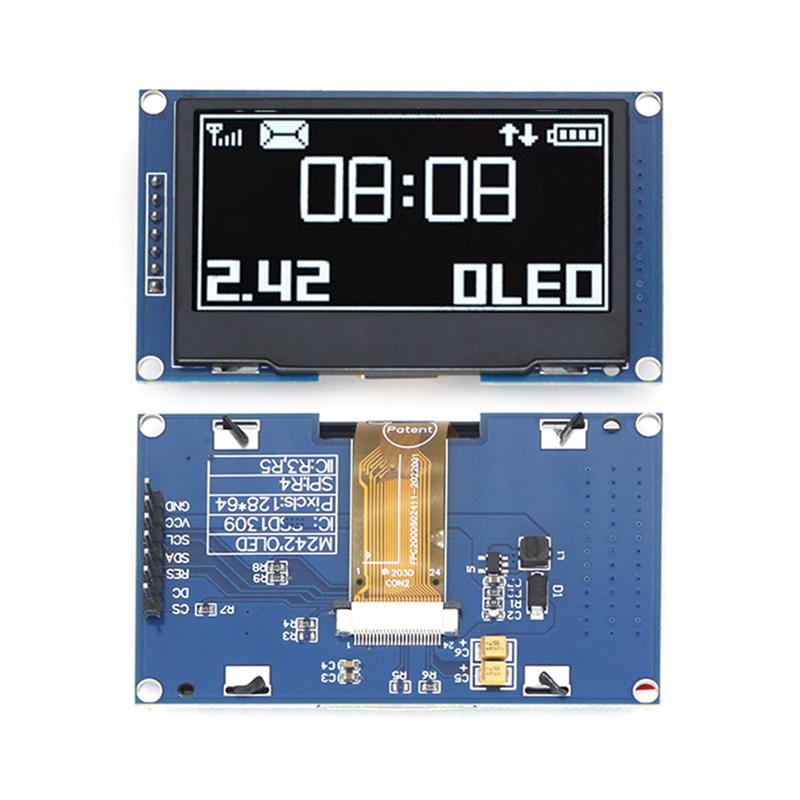

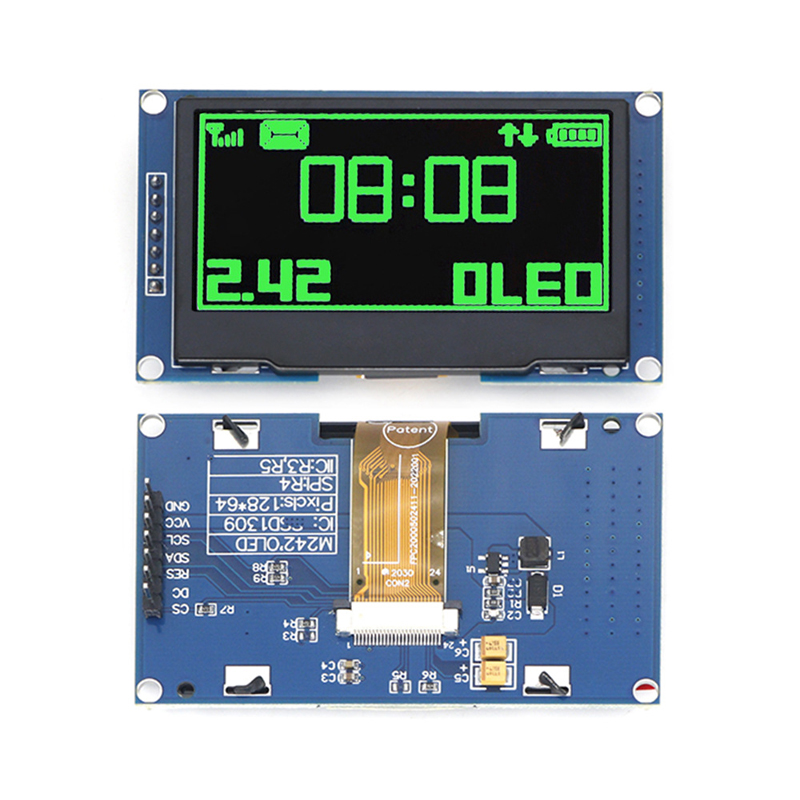

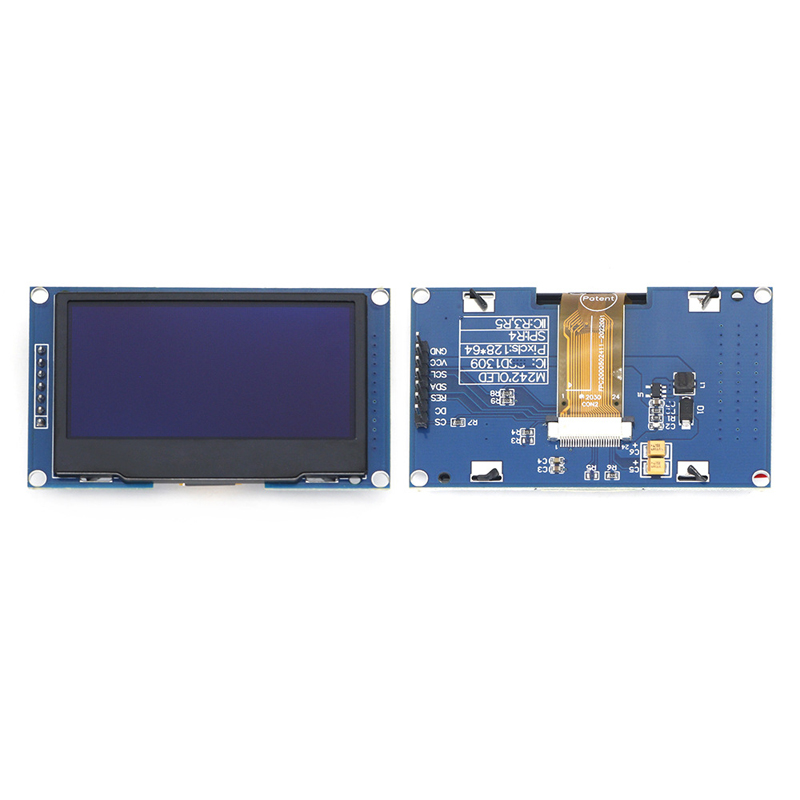

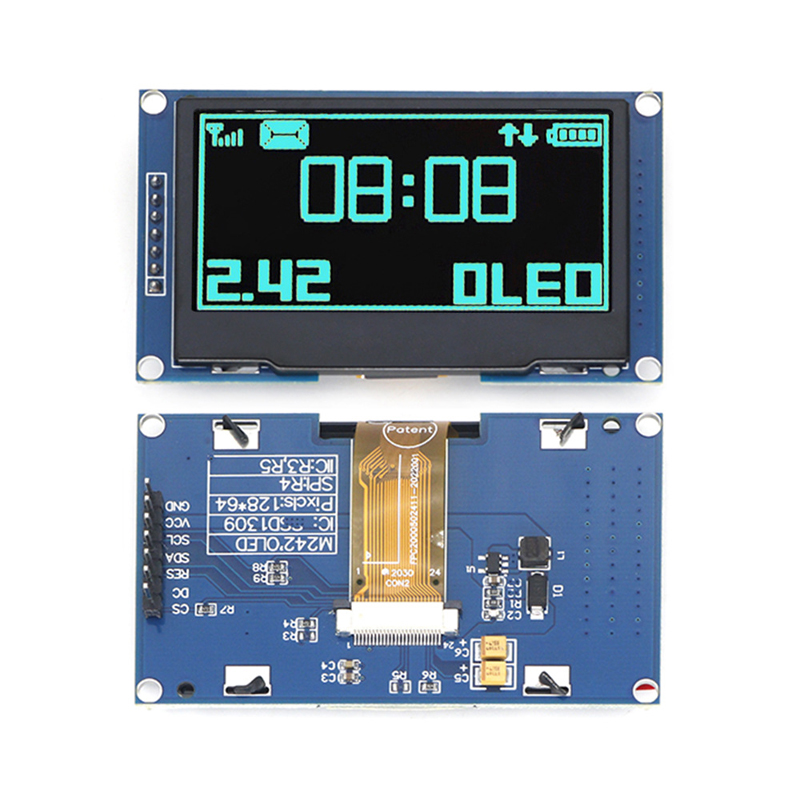

2.42 Inch OLED LCD Display Module
Specification Parameters:
● Driver chip: SSD1309
● Support interface: IIC/SPI
● Resolution: 128 × sixty-four
● Display size: 2.42 inches

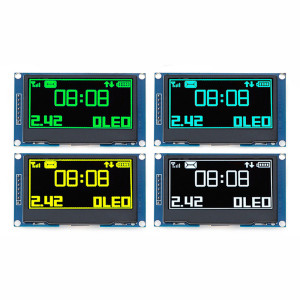

● Display color: white light/blue light/yellow light/green light
● Module size: 71 × 43.5(mm)
● Glass size: 60.5 × 37(mm)
● Display area: 55.02 × 27.49(mm)
● Drive voltage: 3.3-5V
● Number of pins: 7 pins
● Perspective:>160 degrees
● Operating temperature: -40 ℃~70 ℃
● Storage temperature: -40 ℃~80 ℃
Interface Definition:
● GND: Power ground
● VDD: Power supply positive
● SCK: Clock line
● SDA: Data cable
● RES: reset line
● DC: Data/Command
● CS: Film Selection
