1.44/1.8/2.0/2.2/2.8 Inch Serial Port TFT SPI LCD Touch/Color Screen Module Only Requires 4 IO

1.44/1.8/2.0/2.2/2.8 Inch Serial Port TFT SPI LCD Touch/Color Screen Module Only Requires 4 IOItem NO.: TFT Small

US$ 5.46
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
1.44/1.8/2.0/2.2/2.8 Inch Serial Port TFT SPI LCD Touch/Color Screen Module Only Requires 4 IO
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 1.44/1.8/2.0/2.2/2.8 Inch Serial Port TFT SPI LCD



    Module Features:



    1. Supports multiple single-chip microcontrollers for direct insertion, without the need for any wiring

    2. Integrated voltage stabilizing IC, supporting 5V or 3.3V power supply

    3. Onboard level conversion scheme, compatible with 5V/3.3V IO levels, supporting various microcontroller IO connections

    4. Integrated SD card expansion circuit,

    5. Reserve SPI FLASH word library circuit for easy expansion of applications



    1.44-inch SPI Serial Port Screen With Backplane Module, Only Requiring 4 IO Drives:



    ● Screen size: 1.44 inch SPI serial bus

    ● Resolution: 128 * 128

    ● Drive IC: ST7735

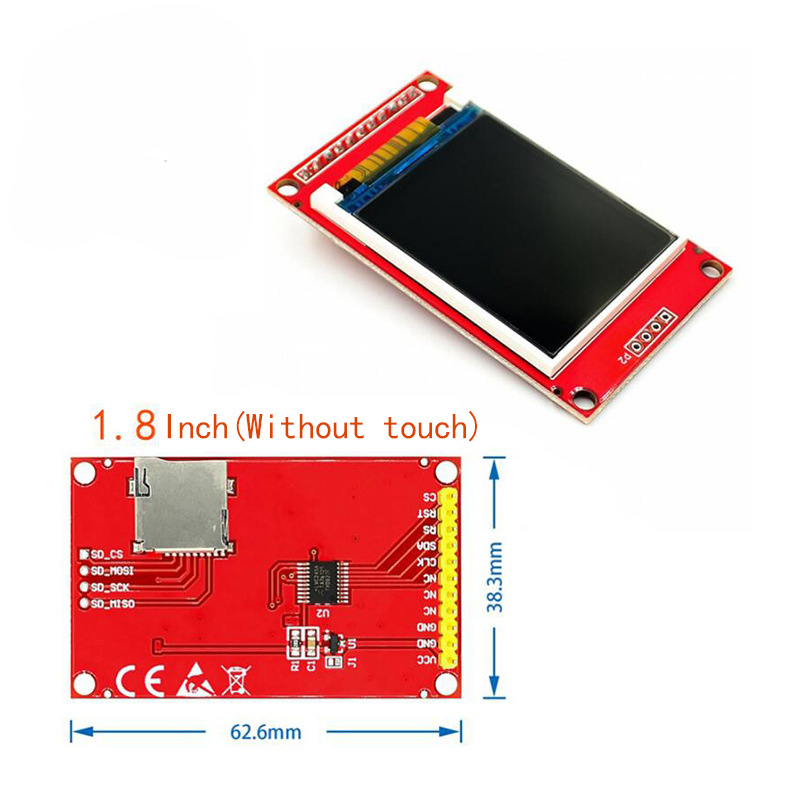

    1.8-inch SPI Serial Port Screen With Backplane Module, Only Requiring 4 IO Drives:



    ● Screen size: 1.8 inch SPI serial bus

    ● Resolution: 128 * 160

    ● Drive IC: ST7735

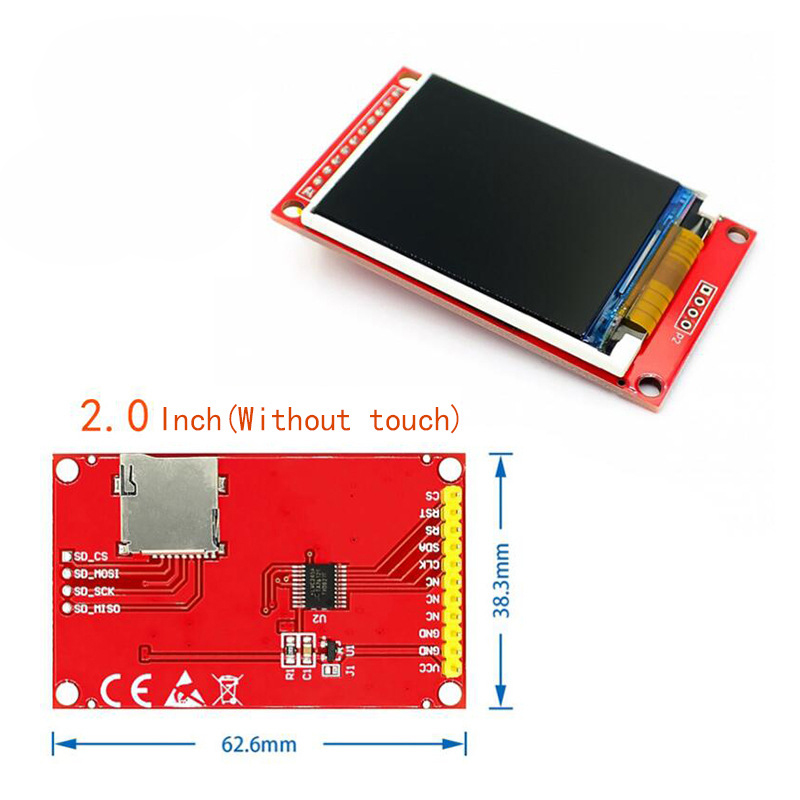

    2.0 inch SPI Serial Port Screen With Backplane Module, Only Requiring 4 IO Drives:



    ● Screen size: 2.0 inch SPI serial bus

    ● Resolution: 176 * 220

    ● Drive IC: ILI9225

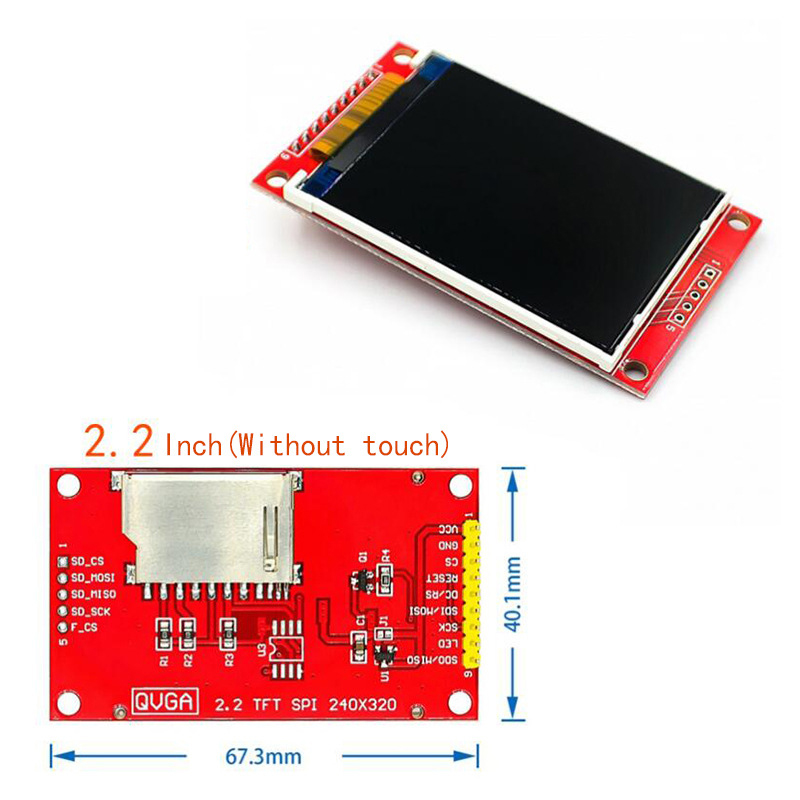

    2.2 inch SPI Serial Port Screen With Backplane Module, Only 5 IO Drives Are Required:



    ● Screen size: 2.2 inch SPI serial bus

    ● Resolution: 240 * 320

    ● Drive IC: ILI9341

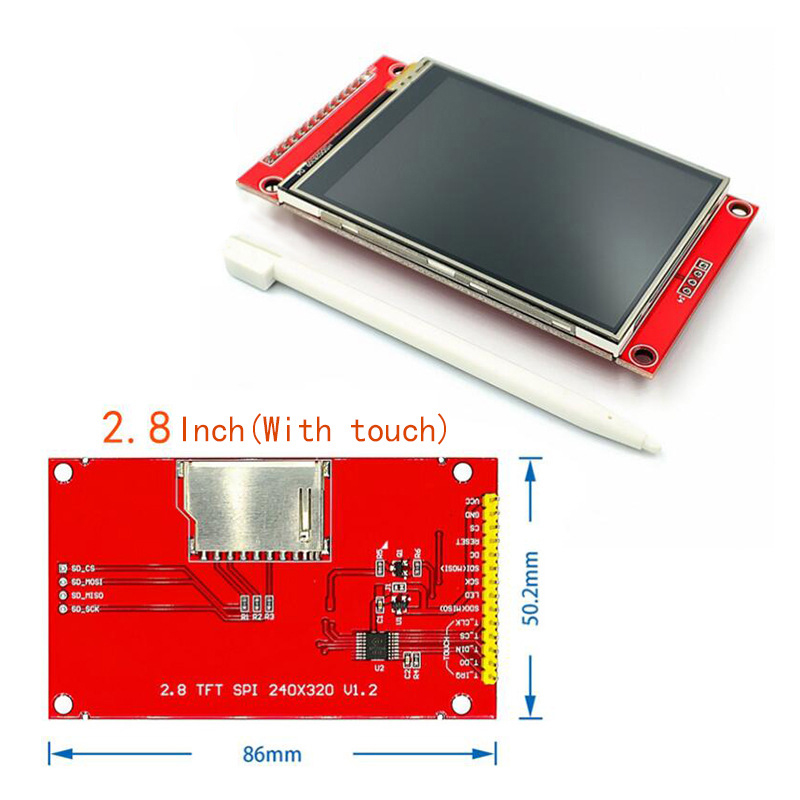

    2.8 inch SPI Serial Port Screen With Backplane Module, Only 9 IO Drives Are Required:



    ● Screen size: 2.8 inch SPI serial bus

    ● Resolution: 240 * 320

    ● Drive IC: ILI9341
