- Product Name: 1-Circuit Relay Module Isolation Module Home Appliance Control 5V 12V
- Item NO.: MK00855
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: 5V , 12V , Relay Module , 1-Circuit , Isolation Module
- Creation Time: 2024-03-27

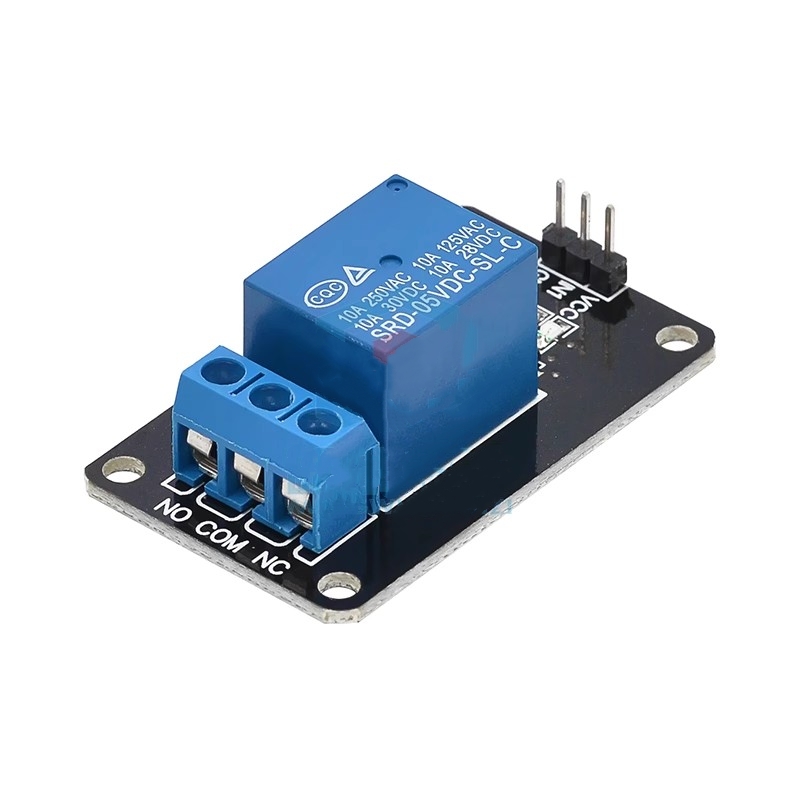

1-Circuit Relay Module 5V 12V
Module parameters:

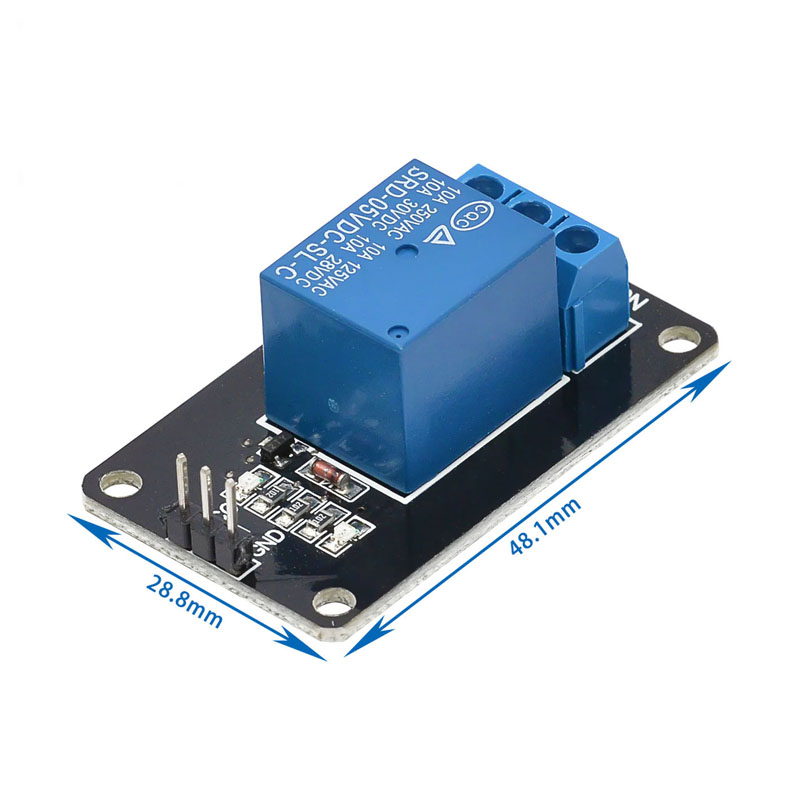

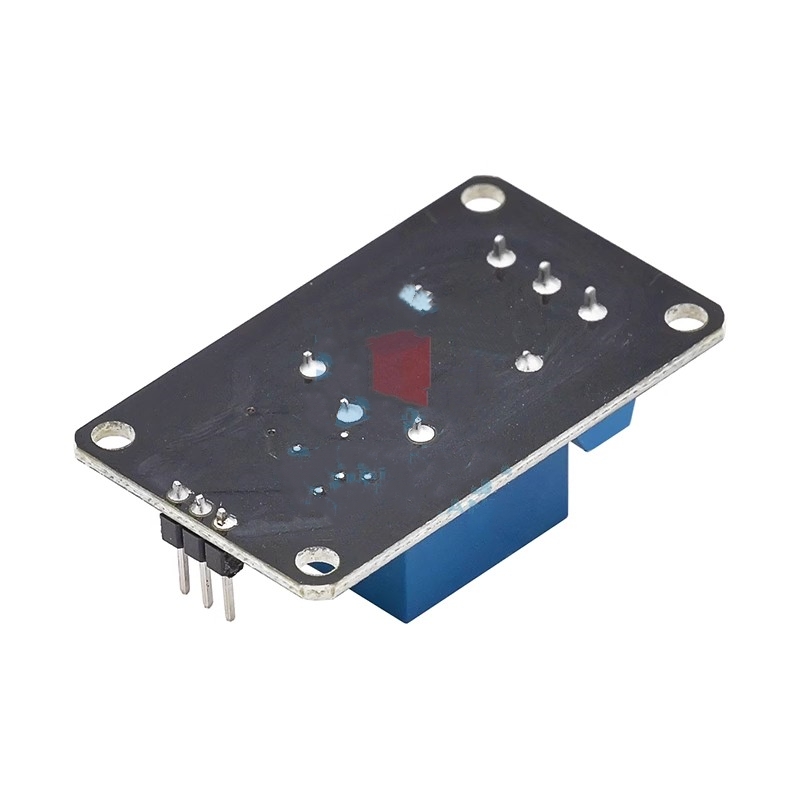

1. Size: 48.1mm (length) * 28.8mm (width) * 19.3mm (height)
2. Weight: 18g
3. PCB color: black

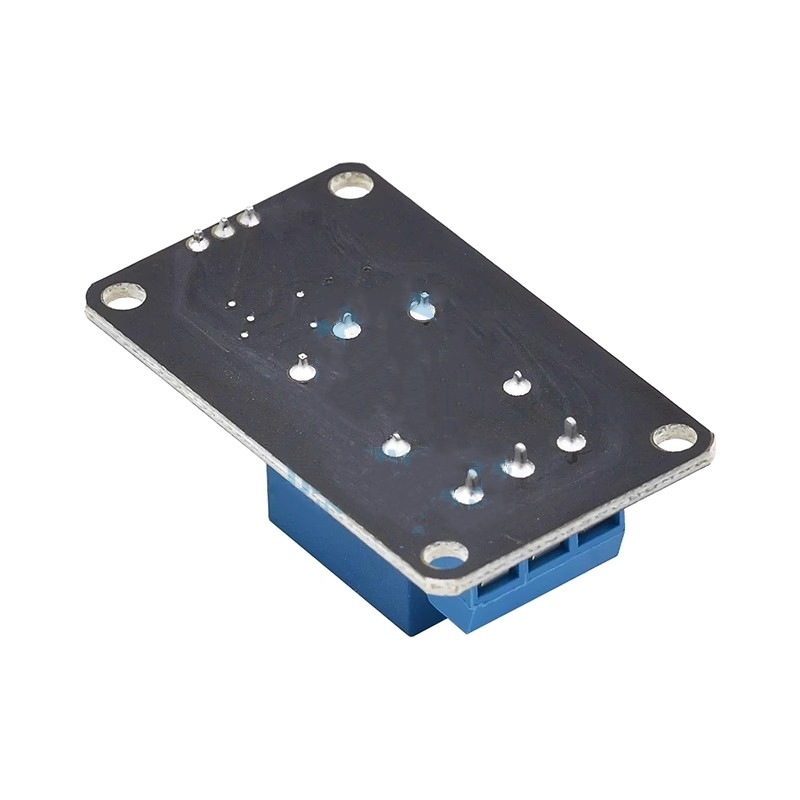

4. The board is equipped with 4 fixing screw holes around it, with a diameter of 3.1mm, for easy installation and fixation

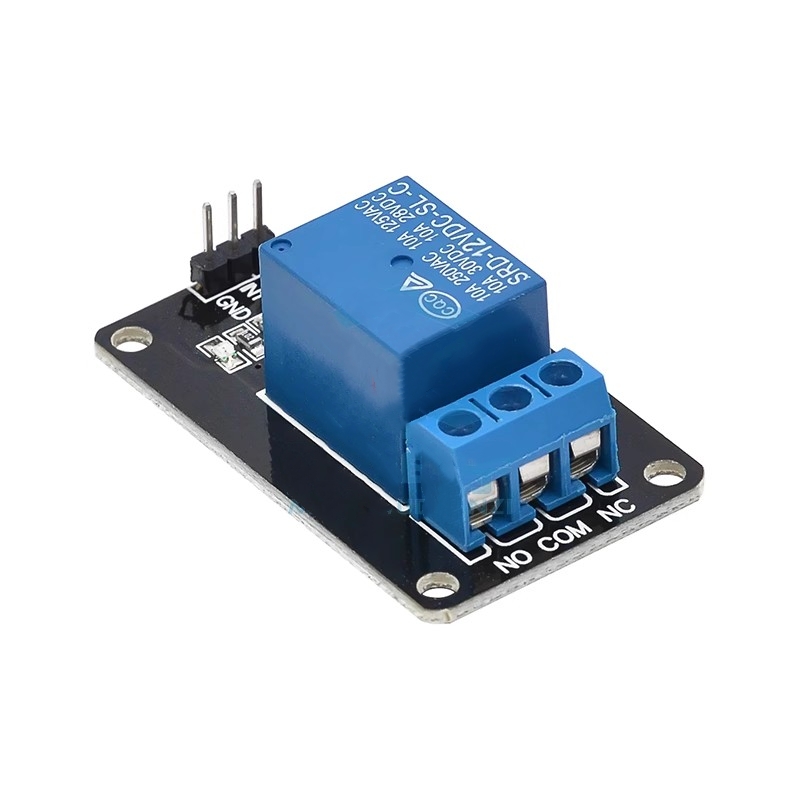

5. The relay adopts high-quality Songle relay, single pole double throw. One common end, one normally open end, one normally closed end
6. Optocoupler isolation with good anti-interference performance
7. Low level pull in, high level release. When closing, the status indicator light D1 is on, and when releasing, the status indicator light D1 is off
8. VCC is the system power supply, JD_ VCC is the relay power supply. By default, a 5V relay can be triggered by plugging in the jumper cap
9. Relay large output: DC 30V/10A, AC 250V/10A
Wiring instructions:
VCC: System power supply positive pole
GND: negative pole of system power supply
IN1: Relay control port
Shipping list:
1 circuit with optocoupler relay module (anti-static packaging)
