Home>Electronic Modules>Wireless Module>12V Learning Wireless Remote Control Switch Module Electronic Control Door Access Control Remote Door Opener
12V Learning Wireless Remote Control Switch Module Electronic Control Door Access Control Remote Door Opener

12V Learning Wireless Remote Control Switch Module Electronic Control Door Access Control Remote Door OpenerItem NO.: 12V Remote

US$ 9.08
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
12V Learning Wireless Remote Control Switch Module Electronic Control Door Access Control Remote Door Opener
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 12V Learning Wireless Remote Control Switch

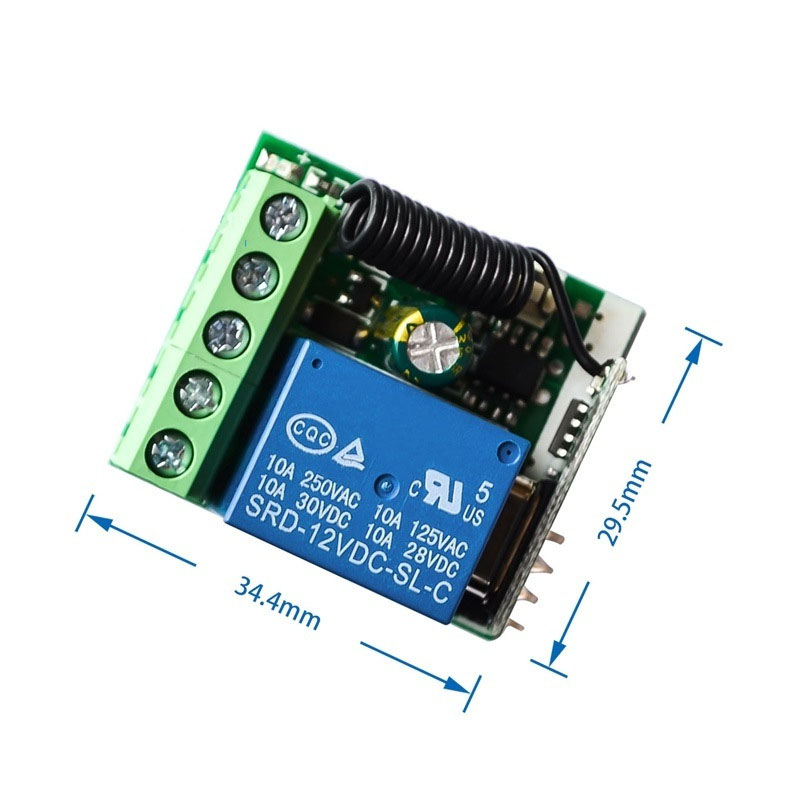

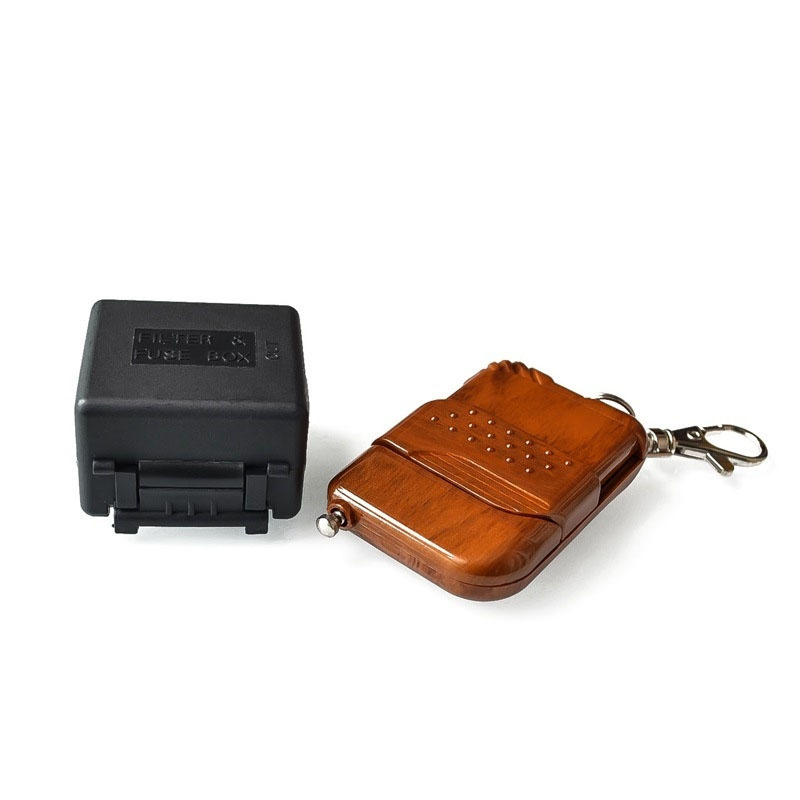

    Configuration: A set of remote control switches including a receiving board (with black casing) and a remote control



    Basic parameters:



    Product model: MBS-YK

    Working voltage: DC12V

    Power supply current of the receiving board itself: 0.5A~2A

    Working frequency: 315MHZ

    Contact capacity: ≤ 10A/250VAC; 10A/30VDC

    Receiving sensitivity:>-105dB

    Remote control distance: 100 meters (no interference in open space), which is the theoretical distance for no interference in open space,

    During use, interference and partitions may be reduced according to different environments.

    Number of control channels: 1 normally open (normally closed) contact

    Encoding type: learning code; Spaceless pairing

    Learning method: Turn on the power indicator light and turn it on for 3 seconds. After the indicator light goes out, press the learning button once. At this time, the indicator light lights up. Press the remote control button to turn off the indicator light, and the learning is successful.

    Code clearing method: Turn on the power supply and the indicator light will light up for 3 seconds. After it goes out, press and hold the learning button and the indicator light will light up. After 8 seconds, the indicator light will go out, and code clearing is successful.

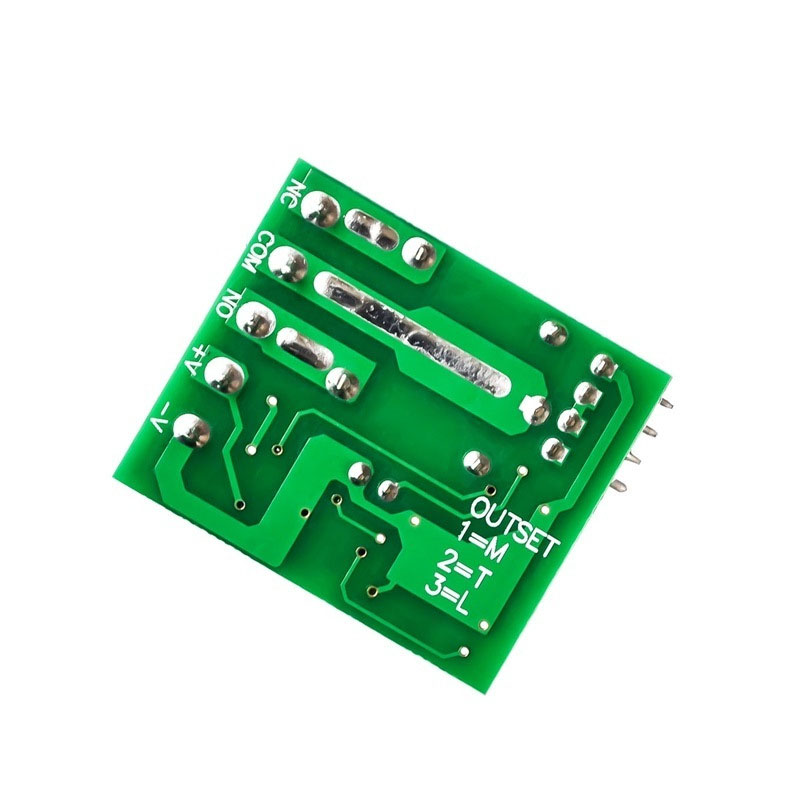

    Working mode: self-locking/interlocking/inching, users can freely choose. (Insert cap selection, T is self-locking, M is inching, and M and T are not inserted as interlocking)
