High Power MOS Tube Field Effect Tube Trigger Switch Drive Module PWM Adjustment Electronic Switch Control Board

High Power MOS Tube Field Effect Tube Trigger Switch Drive Module PWM Adjustment Electronic Switch Control BoardItem NO.: High power MOS tube

US$ 2.62
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
High Power MOS Tube Field Effect Tube Trigger Switch Drive Module PWM Adjustment Electronic Switch Control Board
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

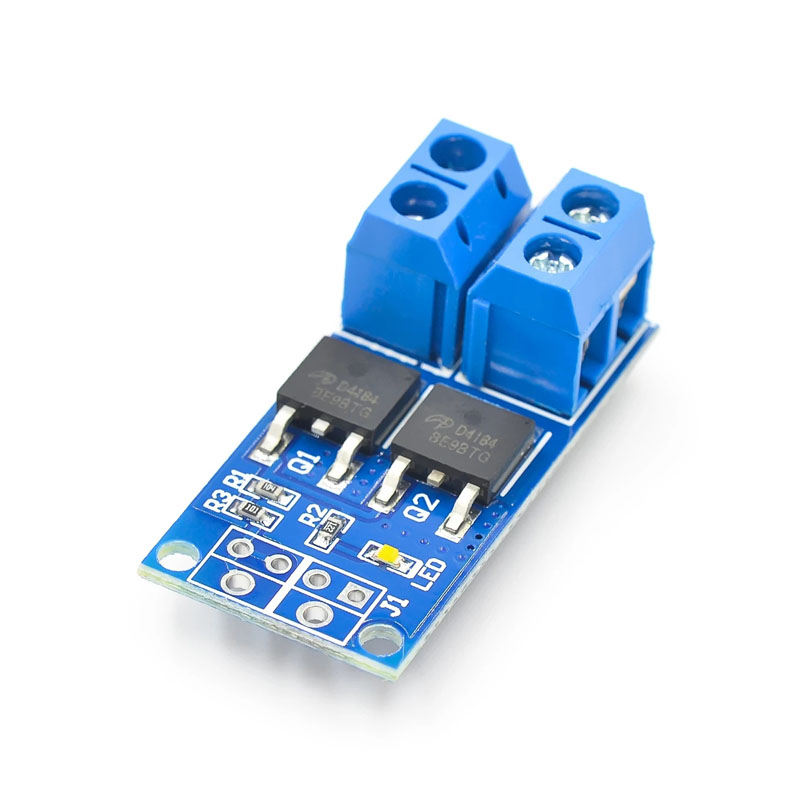

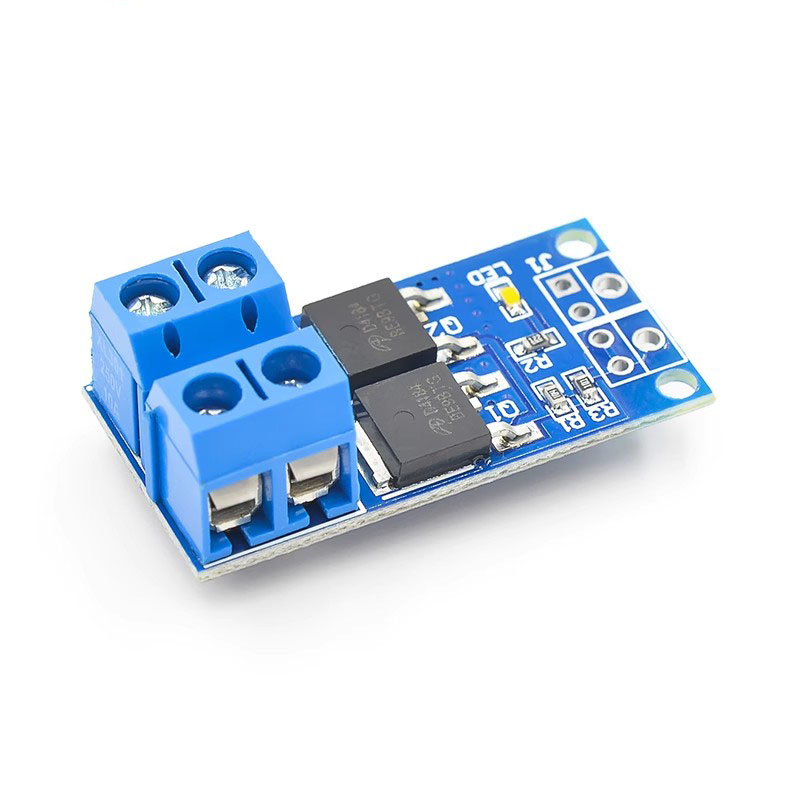

  • High Power MOS Tube



    Module Highlights:



    1. Adopting original imported dual MOS parallel active output, with lower internal resistance, higher current, strong power, 15A, 400W at room temperature, meeting the needs of most equipment;

    2. Wide voltage, supporting PWM;

    3. Easily achieve control of high-power devices.



    Product Parameters And Applications:



    1: Working voltage: DC 5V -36V;

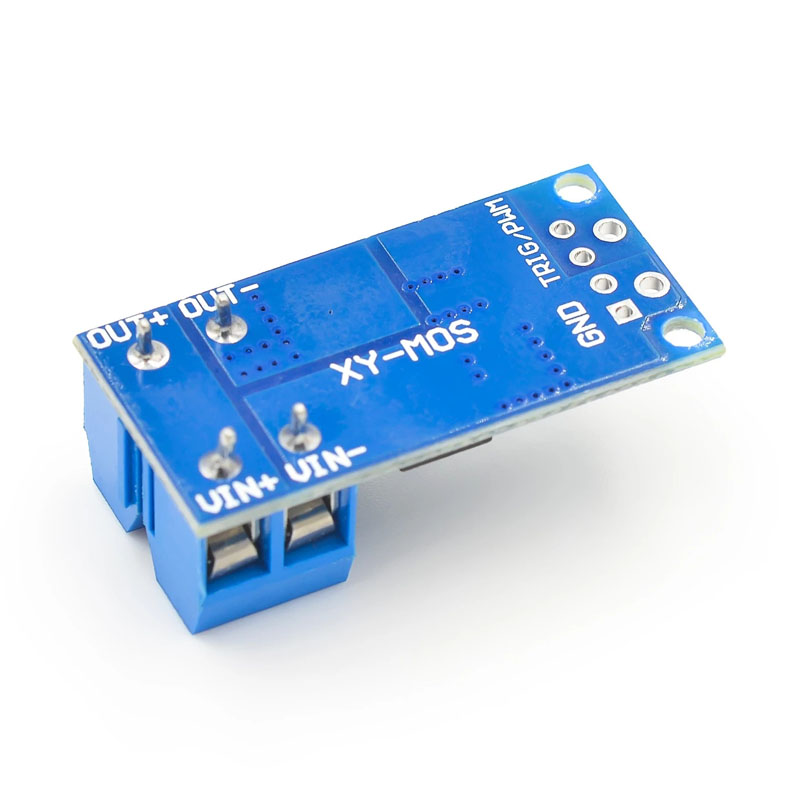

    2: Trigger signal source: Digital high and low level (DC3.3V-20V), can be connected to microcontroller IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-20KHZ. Support.

    3: Output capacity: DC 5V-36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the high current of Z can reach 30A.

    4: Application: The output terminal can control high-power devices such as motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. It can input PWM to control motor speed, lamp brightness, etc.

    5: Service life: unlimited switching times;

    Working temperature: -40-85 ℃;

    Size: 34 * 17 * 12mm
