10W/15W/20W Stereo Bluetooth Amplifier Board 12V/24V High-power Digital Amplifier Module XY-AP15HItem NO.: XY-AP15H
-
Customized Requirements
- Quantity
-
-
- Product Name: 10W/15W/20W Stereo Bluetooth Amplifier Board 12V/24V High-power Digital Amplifier Module XY-AP15H
- Item NO.: XY-AP15H
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Stereo , Bluetooth Amplifier Board , 10W/15W/20W , Digital Amplifier Module , XY-AP15H
- Creation Time: 2024-05-03

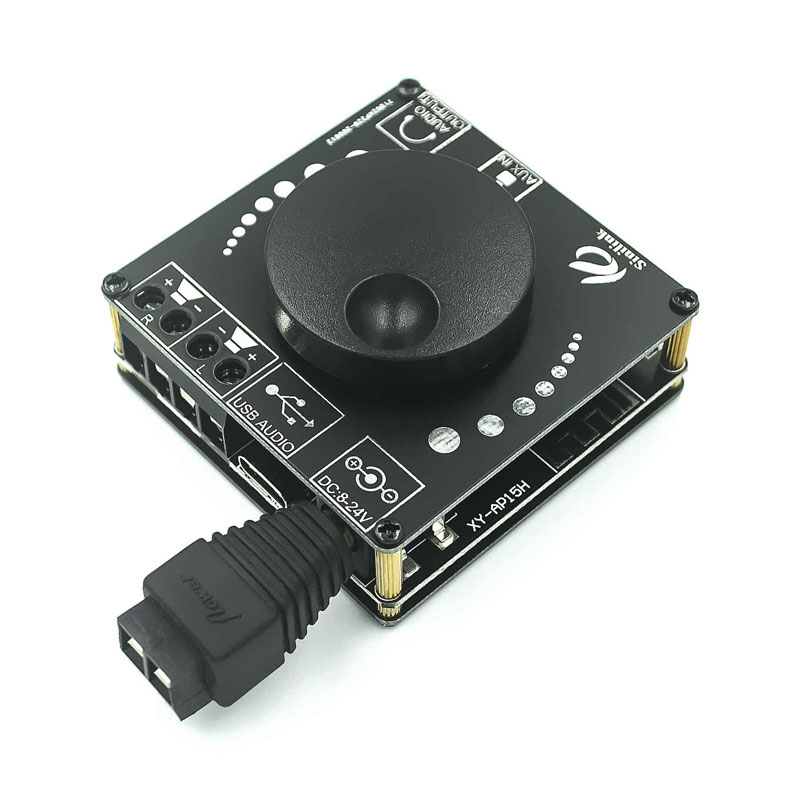

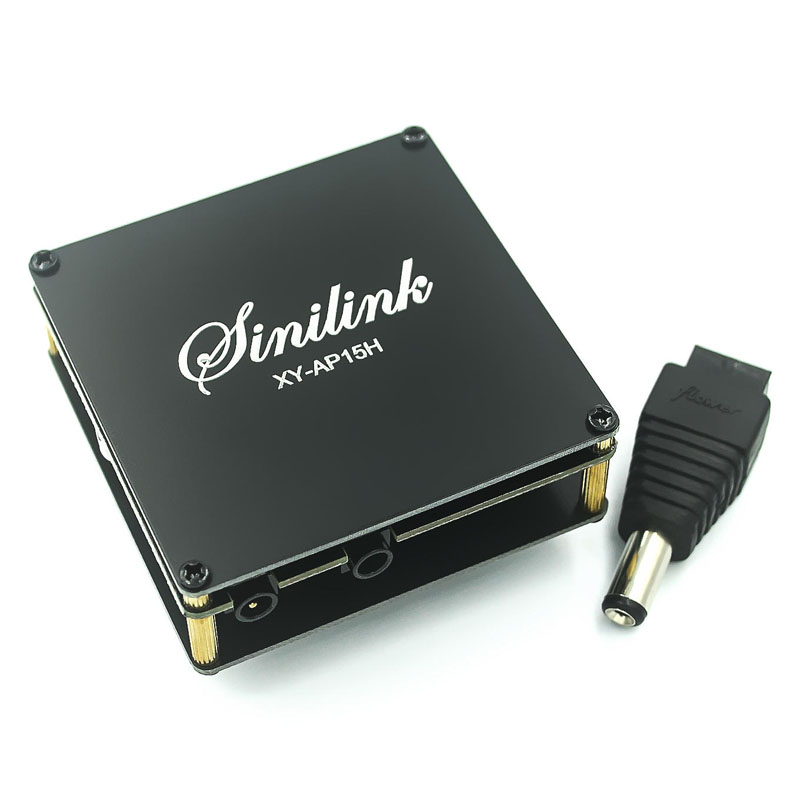

XY-AP15H Bluetooth amplifier board
Product parameters:
Product name: 20W+20W stereo Bluetooth digital amplifier
Product model: XY-AP15H
Power supply voltage: DC: 8-24V (the higher the voltage, the greater the output power)
Bluetooth version: 5.0
Transmission distance: 15 meters (unobstructed)
Number of channels: left and right dual channels (stereo)
Adapted speaker: 30W~200W 4 Ω 8 Ω 16 Ω
Protection mechanism: power reverse protection, short circuit protection, self recovery overheating protection
Attention: The output power of the power supply should be greater than the output power of the amplifier, otherwise it will affect the sound quality. If the output power is greater than 20W+20W, a heat sink should be added
12V → 8Ω/10W+10W, 4Ω/16W+16W
16V → 8Ω/15W+15W, 4Ω/greater than 20W+20W
20V → 8Ω/20W+20W, 4Ω/greater than 20W+20W
24V → 8Ω/30W+30W, 4Ω/greater than 30W+30W
