9-50V PWM DC Motor Speed Controller 3600W 60A with Housing Bulb Dimming Conveyor Belt Treadmill Speed RegulationItem NO.: MK03020
-
Customized Requirements
- Quantity
-
-
- Product Name: 9-50V PWM DC Motor Speed Controller 3600W 60A with Housing Bulb Dimming Conveyor Belt Treadmill Speed Regulation
- Item NO.: MK03020
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 60A , PWM DC Motor Speed Controller , 9-50V , 3600W , with Housing , Bulb Dimming Conveyor Belt Treadmill Speed Regulation
- Creation Time: 2024-04-09

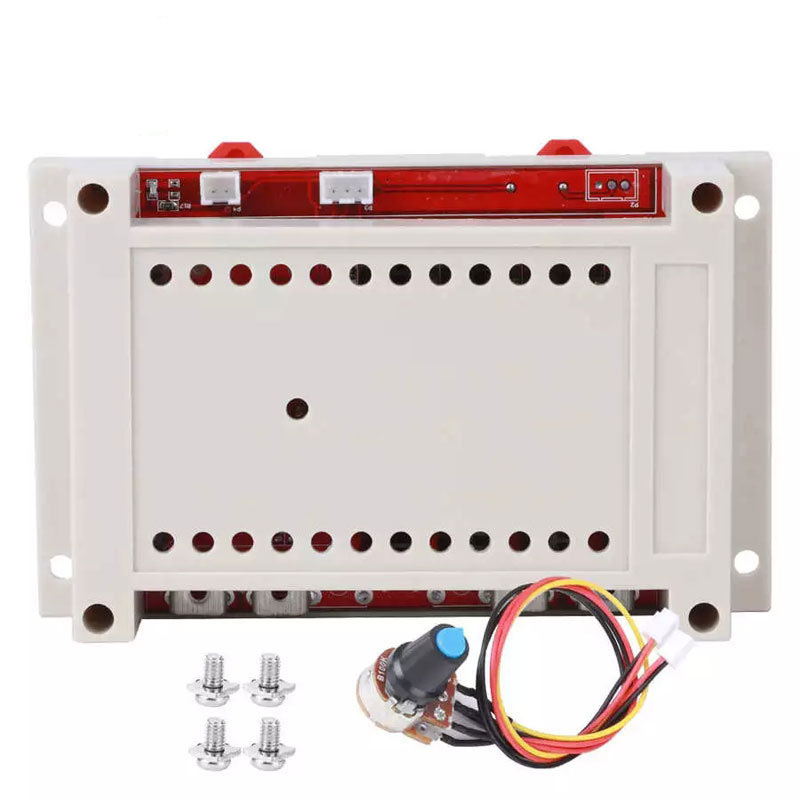

9-50V PWM DC Motor Speed Controller 3600W 60A
Technical Indicators:
(1) Working voltage: DC10V-DC50V wide working voltage range
(2) Control power: 0.01-3000W (maximum rated current 60A) different working voltages correspond to different control powers as follows;
When the working voltage is 12V, 12V*60A =720W
When the working voltage is 24V, 24V*60A =1440W
When the working voltage is 36V, 36V*60A =2160W
When the working voltage is 40V, 40V*60A =2400W
When the working voltage is 50V, 50V*60A =3000W
(3) Quiescent current: 0.04A (when the working voltage is from DC10V to DC50V, the quiescent current will not exceed 40ma)
(4) PWM duty cycle: 5%-
(5) PWM frequency: 15khz
(6) Working temperature: -20 -- 40 (ambient temperature -20 degrees below zero to 40 degrees above zero) This governor is of industrial grade quality and can work stably in an environment below zero, generally a commercial-grade governor It is not possible to work stably below zero.

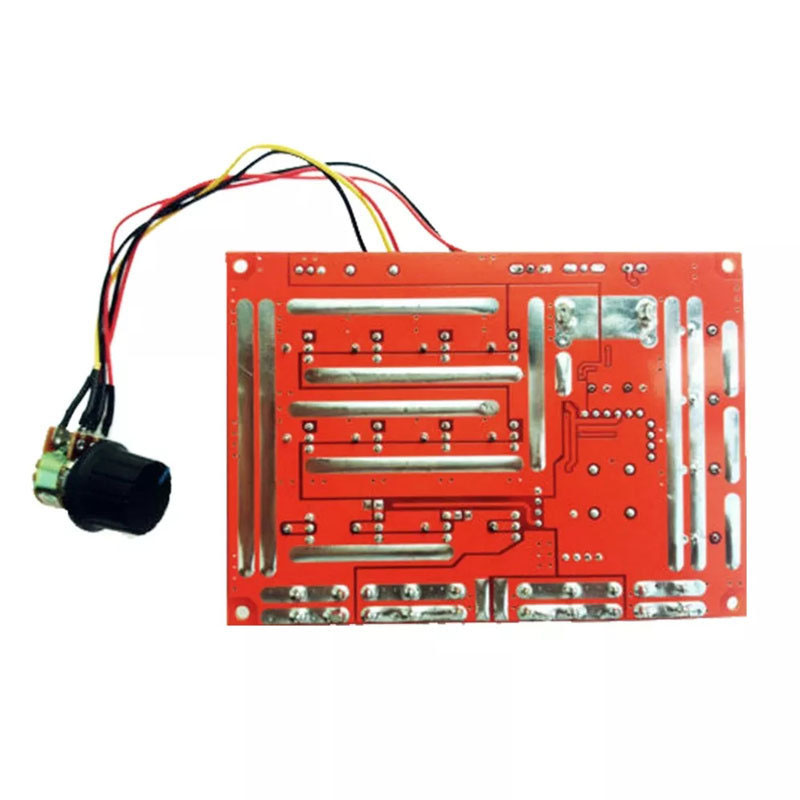

(7) Dimensions of the circuit board: 122mm long, 87mm wide, 32mm high (excluding the potentiometer adjustment part)
The Main Purpose:
1. Speed regulation of various general-purpose DC brush motors
2. Speed regulation of various types of automotive motors (speed regulation of automotive cooling fans, speed regulation of automotive fans, speed regulation of automotive wiper motors, speed regulation of automotive air-conditioning fans)
3. Speed regulation of production line conveyor belt, speed regulation of pipeline exhaust fan, speed regulation of treadmill, parallel speed regulation of multiple computer fans, and speed regulation of electronic fans.
4. Various types of DC bulb dimming, various types of DC heater temperature adjustment.
