10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High-Power Digital Power Amplifier Module XY-P15WItem NO.: XY-P15W
-
Customized Requirements
- Quantity
-
-
- Product Name: 10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High-Power Digital Power Amplifier Module XY-P15W
- Item NO.: XY-P15W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Stereo , Digital Power Amplifier Module , Bluetooth Power Amplifier Board , 10W/15W/20W , XY-P15W
- Creation Time: 2024-05-03

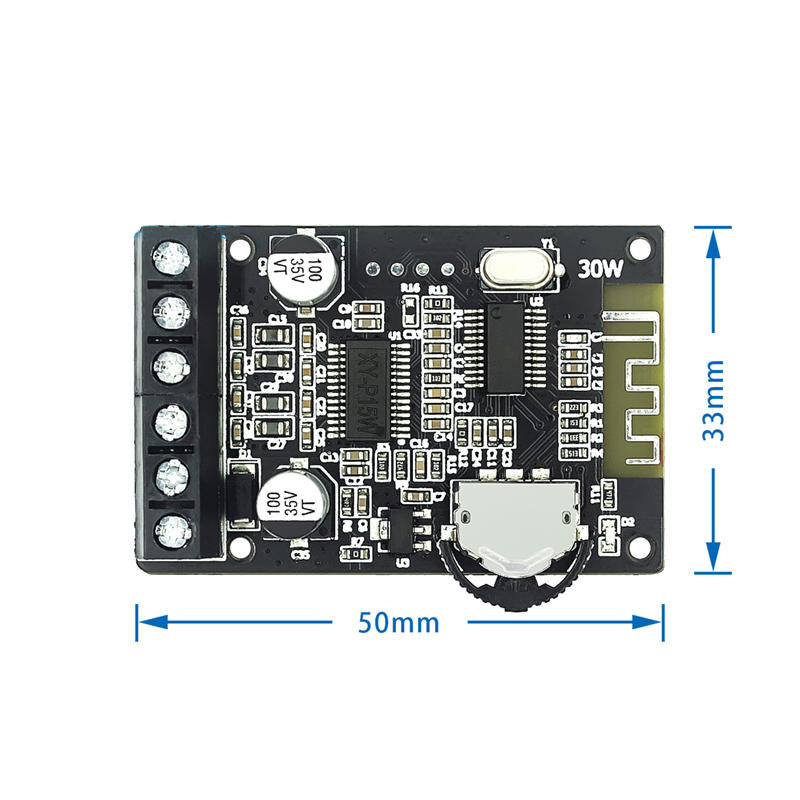

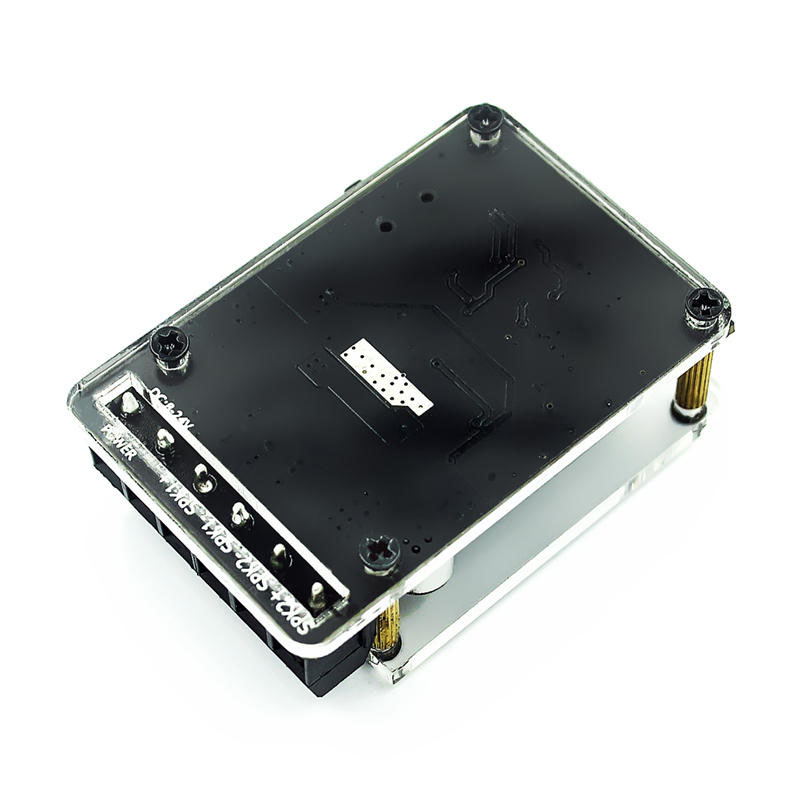

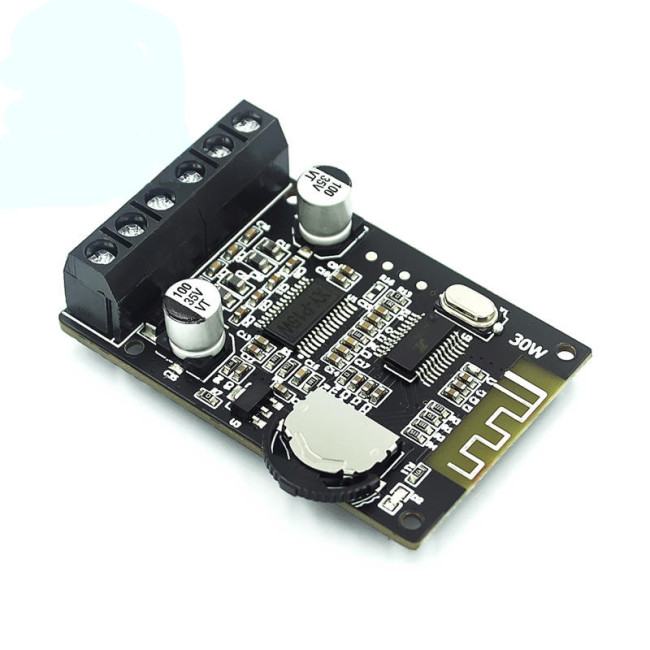

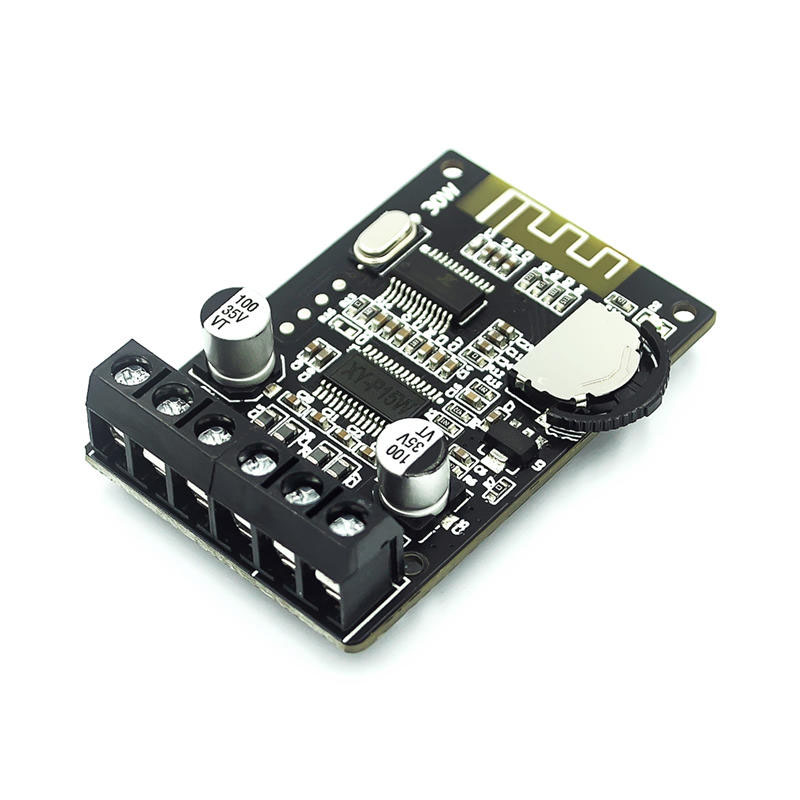

XY-P15W Bluetooth Power Amplifier Board
Product Parameters:
● Product name: Bluetooth digital power amplifier module
● Product model: XY-P15W
● Working voltage: DC: 8~24V
● Bluetooth version: 5.0
● Transmission distance: 15m (visible and unobstructed)
● Number of channels: dual channels (stereo)
● Output power (@ 1KHz): 16W * 2 @ 12V 4 Ω, 10W * 2 @ 12V 8 Ω 15W * 2 @ 16V 8 Ω, 20W * 2 @ 20V 8 Ω, 30W * 2 @ 24V 8 Ω (radiator is required)
● Adaptive horn (30W~150W): 4 ohms (8~12V power supply), 8 ohms (8~24V power supply), 16 ohms (8~24V power supply)
● Module protection mechanism: power reverse connection protection, short circuit protection, self recovery overheat protection
Note: To improve the performance of the module, it is recommended to add a heat sink to the power amplifier chip in the application scenario where the operation exceeds 20W * 2
Operating Instructions:
After the power is turned on, the blue indicator flashes quickly to enter the Bluetooth mode; After broadcasting the "prompt tone", enter the pairing mode and wait for pairing; Mobile phone Bluetooth searches for "XY-P15W" (power amplifier board device name), click "XY-P15W" to connect. After the connection is successful, "prompt tone" will be played, and the indicator light will be on for a long time to play mobile phone music. The indicator light will flash slowly when playing music; After the Bluetooth connection is disconnected, the amplifier board is ready for the next pairing, and after playing the "prompt tone", it enters the pairing mode to wait for pairing.
Precautions:
1. Power amplifier board shall be used as far away from WIFI signal (router) as possible
2. The recommended power supply voltage is 8~24V DC. If it exceeds 26V, the chip will be burned.
3. The power supply shall not exceed 12V when connected with a 4 Ω horn, and 24V when connected with an 8 Ω horn
4. The power supply current is recommended to be above 2A.
5. The working power of the module exceeds 20W * 2, and heat sink is required
6. The horn cable shall not be too long, and it shall be suitable within 1m
7. Pay attention to electrostatic protection. Before touching the power amplifier board, release the static electricity on your hands to prevent the chip from being broken down by static electricity. The Bluetooth chip is sensitive to static electricity.
8. It is recommended to adapt the rated power of the horn to 30W or above to avoid the horn burning due to heating
