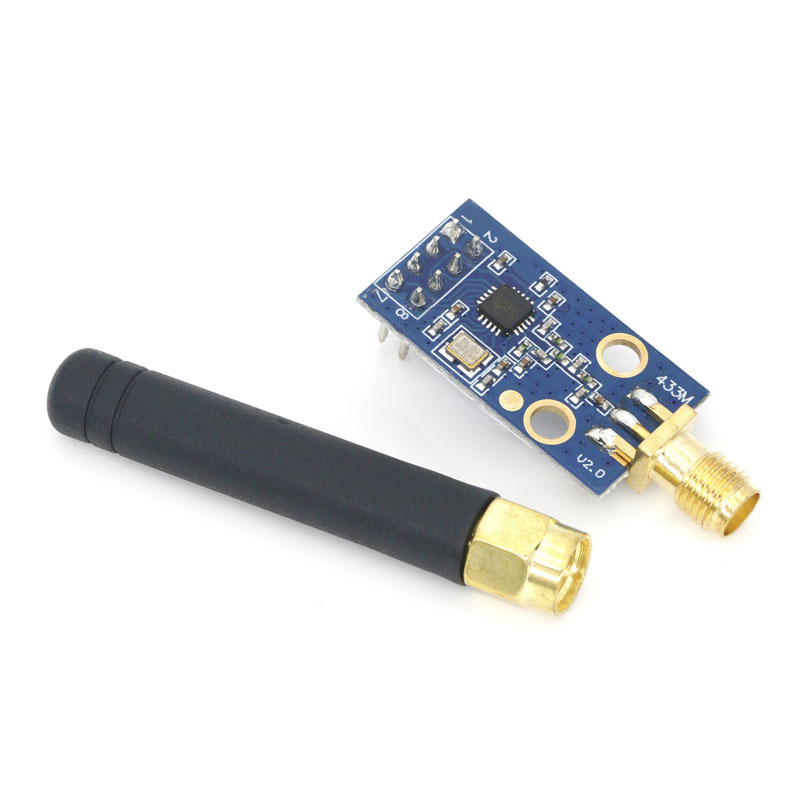

CC1101 Wireless Module 433M Data Transmission and Reception Module with Antenna Gain Increased SMA+rubber Rod AntennaItem NO.: CC1101 433M

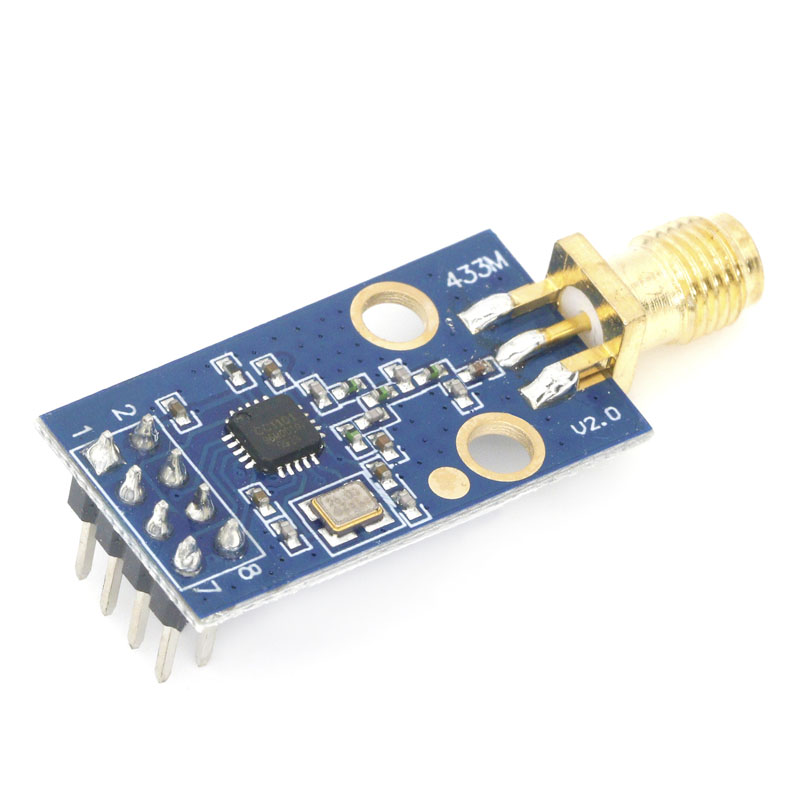

CC1101 Wireless Module

Product Description:

Product Name: CC1101 Wireless Module

RF chip: CC1101

Center frequency: 10mW

Communication distance: 380 meters

Working voltage: 1.9-3.6VDC, meeting battery power supply requirements.

PCB size: 28MMX15MM, all industrial grade components

01: Module size 15 * 28mm

02: Production process SMT machine SMT

03: Interface method 2 * 4 * 2.54 (universal board DuPont cable can be used)

04: Voltage 1.8V-3.6VDC

05: Communication level: 07VDD-3.6VDC

06: The measured distance is greater than 380 meters (depending on the presence of obstacles in the environment)

07: Maximum power 10dpm (approximately 10mw)

08: Air speed 1.2kbps-500kbps (due to physical characteristics of 433, it is recommended not to exceed 20kbps)

09: Emission current 29.2mA (peak)

10: Receiving current: 14.7mA

11: Communication interface: Standard SPI interface, mode 0, communication speed up to 10Mbps

12: Single packet 1-32 bytes, level 3 FIFO buffer

13: RSSI support

14: Working temperature: -30 ° C -85 ° C

15: Working temperature: 10% -90%

16: Storage temperature: -40 ° C -125 ° C

17: Working frequency range: 387MHz-464MHz (adjustable through software, recommended 433 (plus or minus 10%)

18: Receiving sensitivity: -117dpm@250kbps

Pin Description:

GND: Ground wire connected to power reference ground

VCC: The power supply must be between 1.8-3.6V

GDD0: Module information output pin

CSN: Module chip selection pin, used to start an SPI communication

SCK: Module SPI Bus Clock

MOSI: Module SPI data input pins

MISO/GD01: Module SPI data output pins

GD02: Module information output pin
