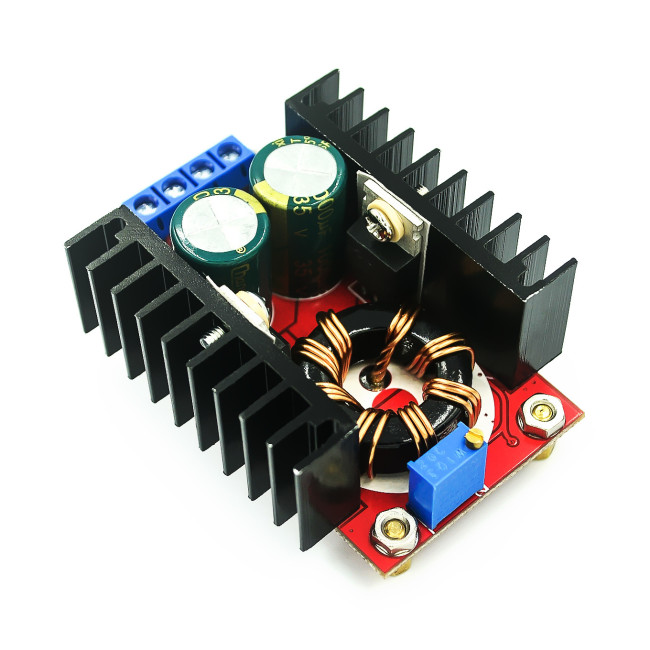

150W Booster Module DC-DC Car Laptop Mobile Power Supply 10-32V to 12-35V AdjustableItem NO.: DC150W RED
-
Customized Requirements
- Quantity
-
-
- Product Name: 150W Booster Module DC-DC Car Laptop Mobile Power Supply 10-32V to 12-35V Adjustable
- Item NO.: DC150W RED
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Adjustable , 150W , DC-DC , Booster Module , Car Laptop Mobile Power Supply , 10-32V to 12-35V
- Creation Time: 2024-05-13
150W Booster Module
Module parameters:
Module nature: Non isolated boost module
Input method: IN+positive input, IN - negative input
Output method: OUT+positive output, OUT - negative output
Wiring method: solderless, terminals
Input voltage: 10-32V
Output voltage: (1) Continuously adjustable (12-35V) Our default shipping voltage is 19V. (2) Fixed output (any choice between 12-35V). Please inform the shopkeeper when purchasing.
Output current: 6A (MAX)
Input current: 10A (MAX) (If it exceeds 10A, please strengthen heat dissipation.)
Output power: Natural cooling 100W (MAX), with a fan of 150W (MAX)
Easy to drive 65W and 90W laptops, including dual core
Using a 12V battery with a regular 19V 3.42A laptop module, the temperature is approximately 45 degrees Celsius
Conversion efficiency: 94% (measured at 16V input and 19V output) (for reference only)
Working temperature: Industrial grade (-40 ℃ to+85 ℃) (If the ambient temperature exceeds 40 ℃, please reduce the power or add a fan)
Full load temperature rise: 45 ℃
No load current: typical 25mA
Short circuit protection: none (please install overcurrent protector in the input)
Input reverse protection: none, connected in series with two tubes at the input
Application scope:
1) DIY has an adjustable output car power supply. Simply connect your 12V power supply to the input, and you can freely and continuously adjust the output voltage (14-35V), but the output voltage cannot be lower than the input voltage.
2) Car mounted laptop power supply. Connect the input to your 12V power supply and adjust the output to the voltage of your laptop to work.
3) Boost charger, you can use a 12V power supply to charge batteries above 12V, such as 24V batteries.
4) To power your electronic devices, as long as the voltage is adjusted to the voltage you need and the current does not exceed the rated current, it can work normally.
5) The front-end power supply of the system, when you input 10-18V while working on a project, and your system board requires a power supply of around 24V with high power, using a regular DC-DC module has too little power and can work directly without debugging, easily achieving high-power boost.
