DC-DC Power Module Step-down Module High-power Low Ripple 12A Adjustable 95% Efficient in VehicleItem NO.: MK00885

DC-DC Buck Module 12A

Product Parameters:

● Module name: 12A buck version

● Module nature: Non isolated buck module (BUCK)

● Input voltage: 4.5-30V. Please do not exceed 30V!!!

● Output voltage: 0.8-30V continuously adjustable (default output 5V) (fixed output can be customized)

● Output current: 0-12A 100W, enhanced heat dissipation up to 200W,

● Operating temperature: -40~+85 degrees Celsius

● Operating frequency: 300KHz

● Conversion efficiency: 95% higher (efficiency is related to input and output voltage, current, and voltage difference)

● Short circuit protection: Yes (limited current 14A), please try not to short-circuit

● Overtemperature protection: Yes (automatic shutdown output after overtemperature)

● Input reverse protection: None, (if necessary, please input a diode in series)

● Installation method: 4 3mm screws

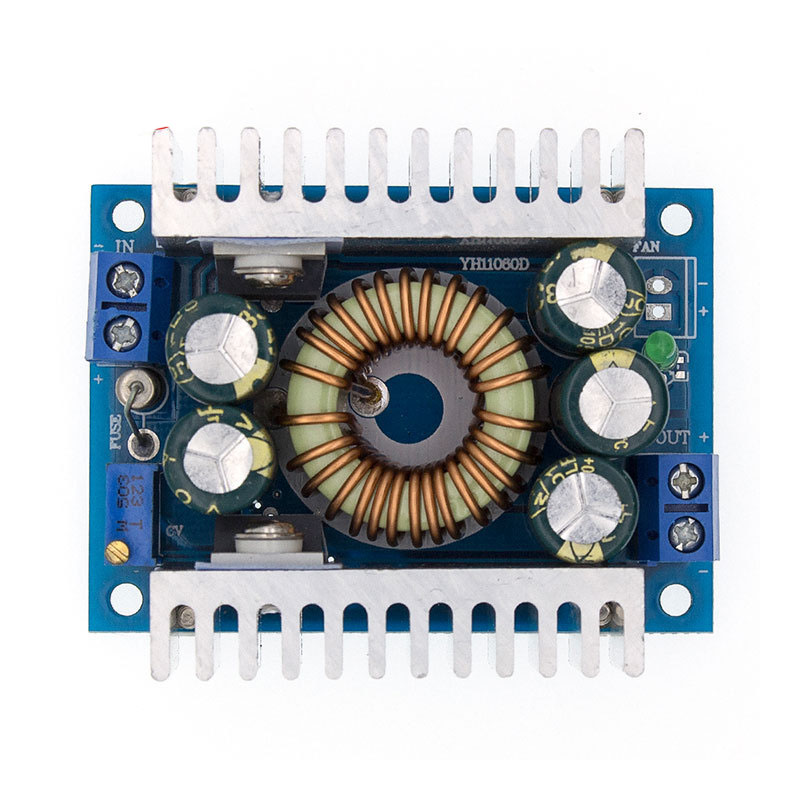

● Wiring method: Terminal blocks, solderless, with V-IN as input and V-OUT as output, and modules equipped with enclosures as soldered outputs

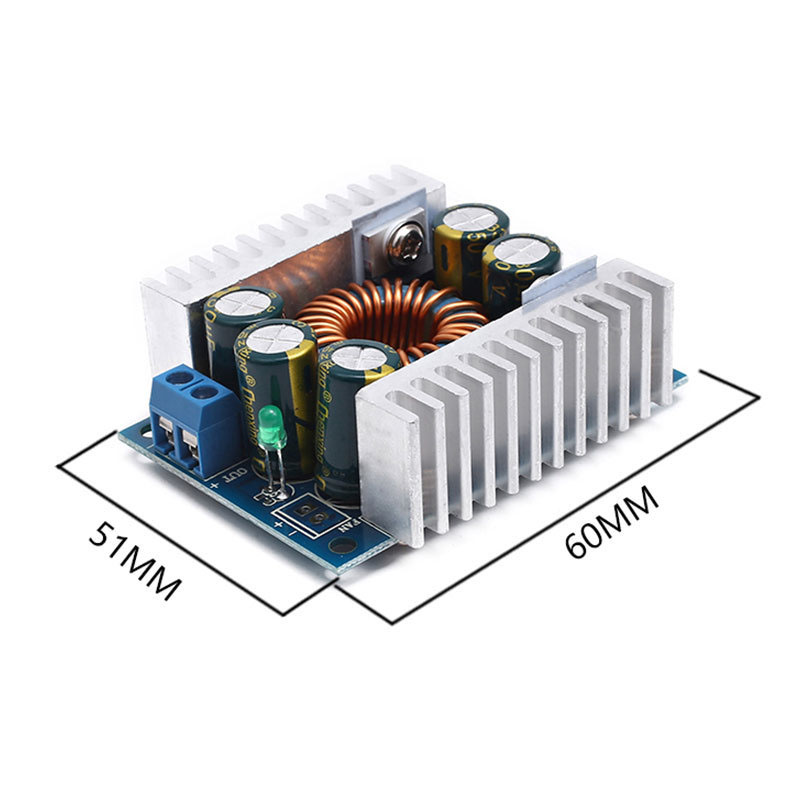

● Module size: 60mm long, 51mm wide, and 22mm high

Measured Data:

● Input 12V output 5V/10A, efficiency 81%

● Input 12V output 5V/6A, efficiency 86%

● Input 24V output 12V/8A, efficiency 91%

● Input 24V output 19V/6A, efficiency 94%

Application Scope:

This module can be applied in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car mounted pen and meter power supplies, car mounted LED light strip power supplies, industrial equipment voltage reduction, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
