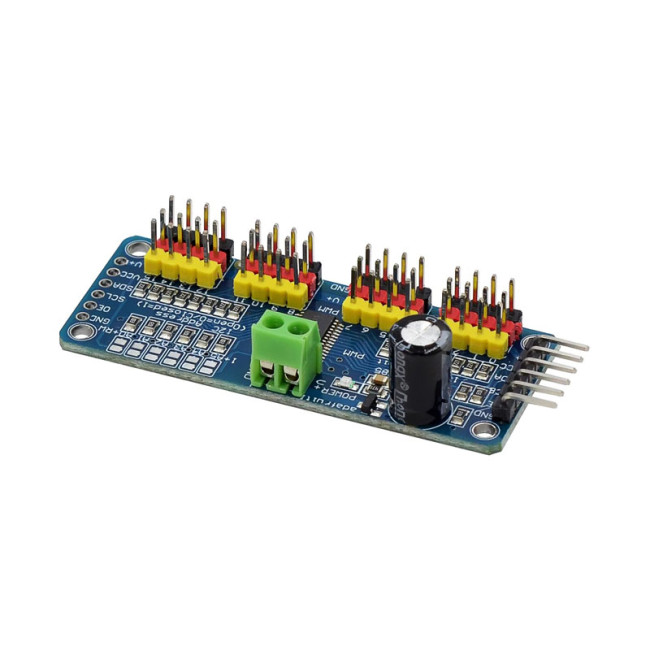

16 Channel PWM Servo Drive Board Robot Controller IIC Interface Driver Module PCA9685Item NO.: Servo PCA9685
-
Customized Requirements
- Quantity
-
-
- Product Name: 16 Channel PWM Servo Drive Board Robot Controller IIC Interface Driver Module PCA9685
- Item NO.: Servo PCA9685
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: 16 Channel PWM Servo Drive Board , PCA9685
- Creation Time: 2024-04-21

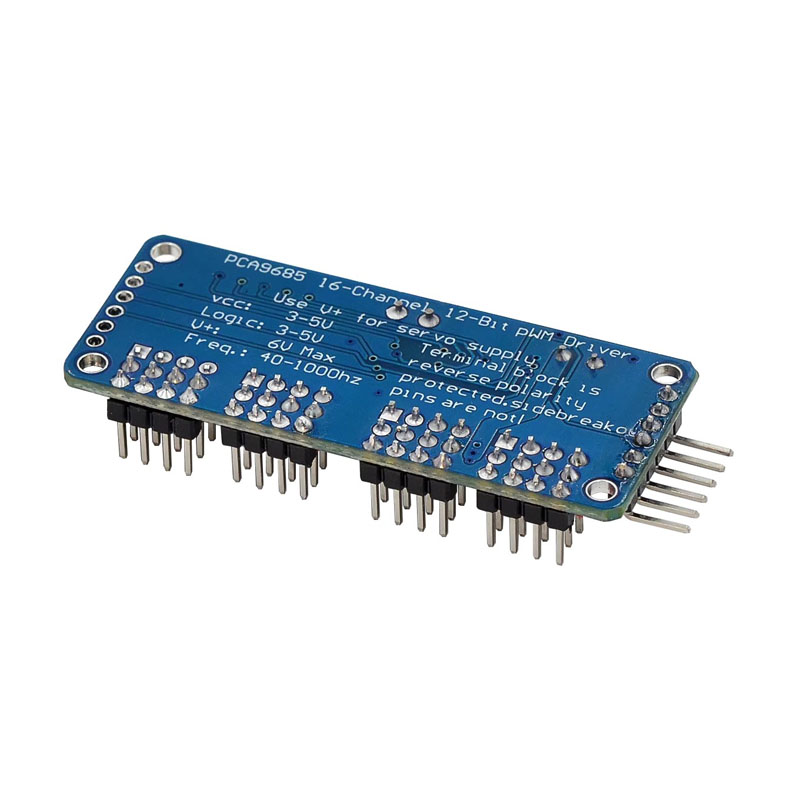

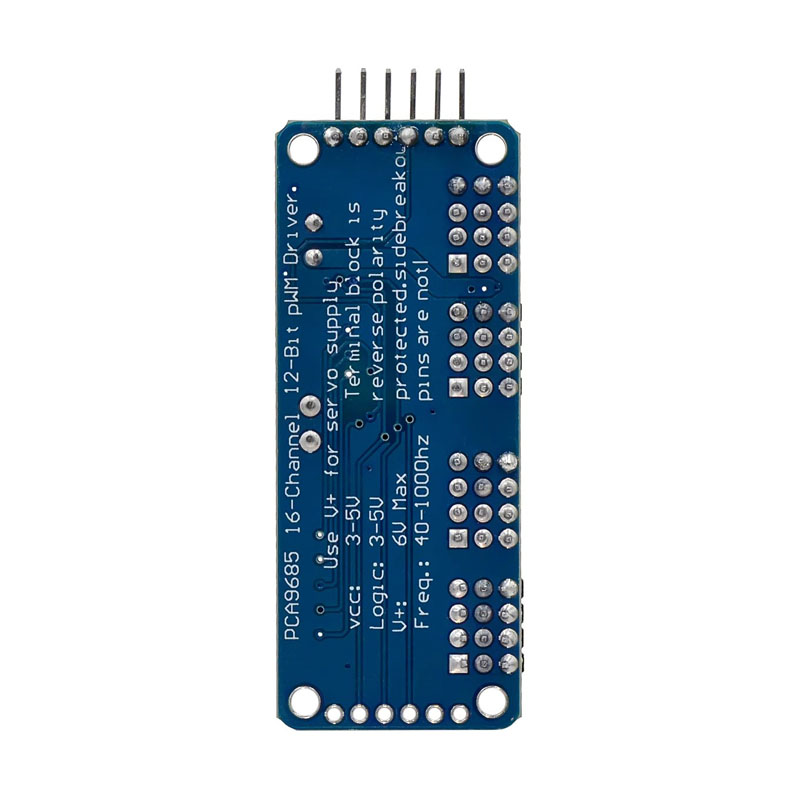

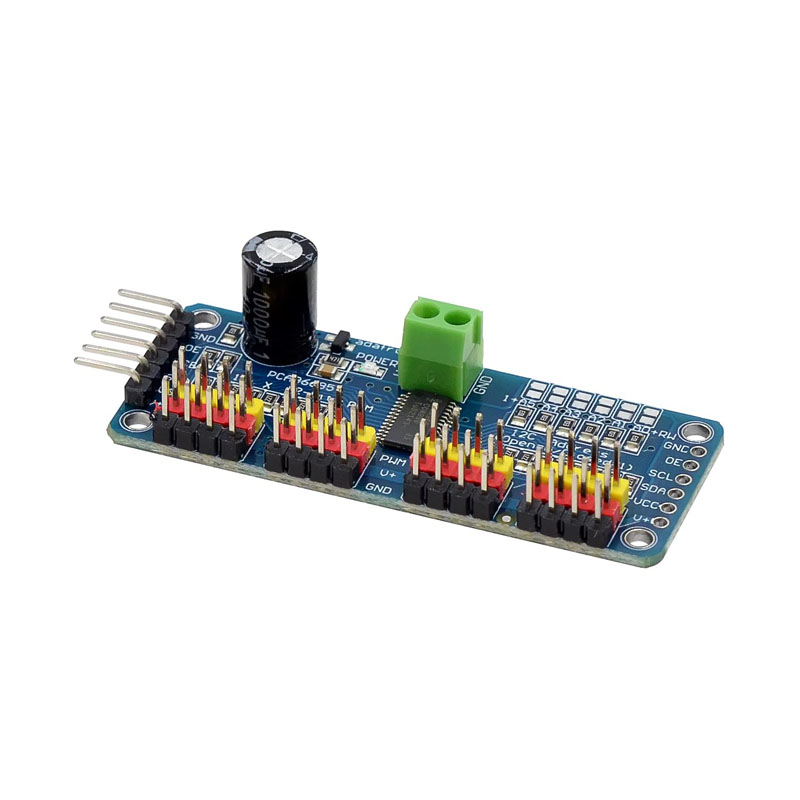

16 Channel PWM Servo Drive Board PCA9685
Introduction:
This is an i2c communication system with built-in PWM driver and a clock. This means that this will be very different from the TLC5940 series. You don't need to constantly send signals to occupy your microcontroller!
It is 5V compatible, which means you can also use a 3.3V microcontroller to control and safely drive to 6V output (when you want to control the white or blue indicator light, it is also possible to use a positive voltage of 3.4+)
The 6-address selection pin allows you to hook 62 driver boards onto a single i2c bus, with a total of 992 PWM outputs. That would be a very huge resource.
Approximately 1.6Khz FM PWM output
Prepare the stepper motor to output a 12 bit resolution, which means it can achieve a 4us resolution at a 60Hz update rate
Configurable push pull output or open circuit output
The output enable pin can quickly disable all outputs
Size: 62mm * 25mm
Characteristics:

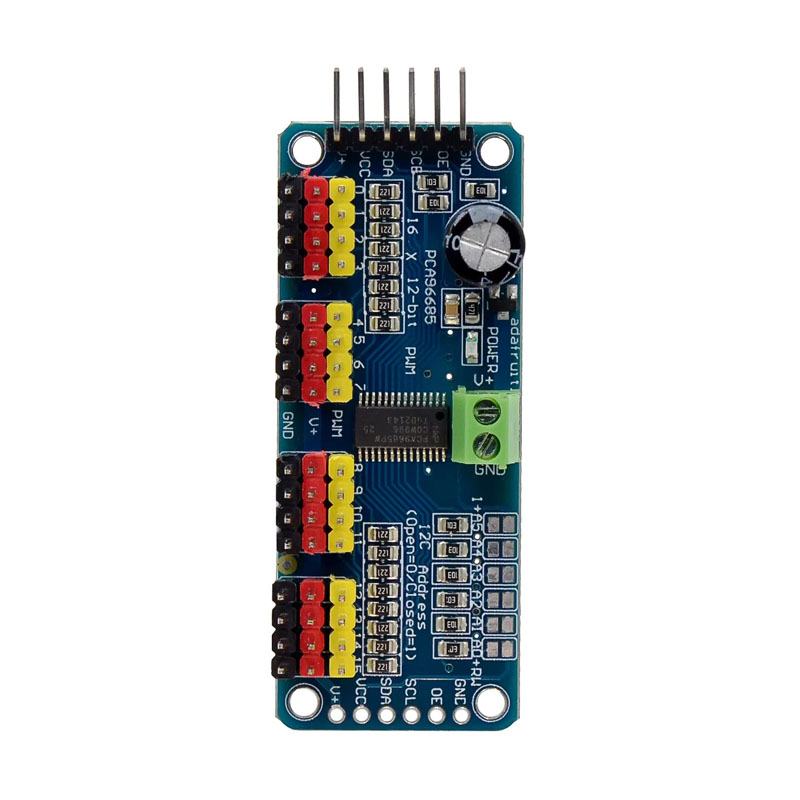

The PCA9685 chip is wrapped in the center of the small board
Power input terminal
Green power indicator light
In 4 sets of 3-pin connectors, it is convenient for you to insert 16 servo motors at once (the plug of the servo motor is slightly wider than 0.1 ", so you can place 4 pairs of 0.1" connectors)
Reverse polarity protection for input on the wiring board
Cascade design
Place a large capacitor on the L V+line (which you may need in some situations), and the maximum input voltage on the periphery depends on this 10V1000uf capacitor
All PWM output lines are equipped with a 220 ohm series resistor to protect them and easily drive LEDs.
