- Product Name: L298N Motor Driver Board/Stepper Motor L298 Circuit DC Motor Driver Module Green Version
- Item NO.: L298N Green
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: Stepper Motor , L298 , L298N , Motor Driver Board , DC Motor Driver Module , Green Version
- Creation Time: 2024-03-28

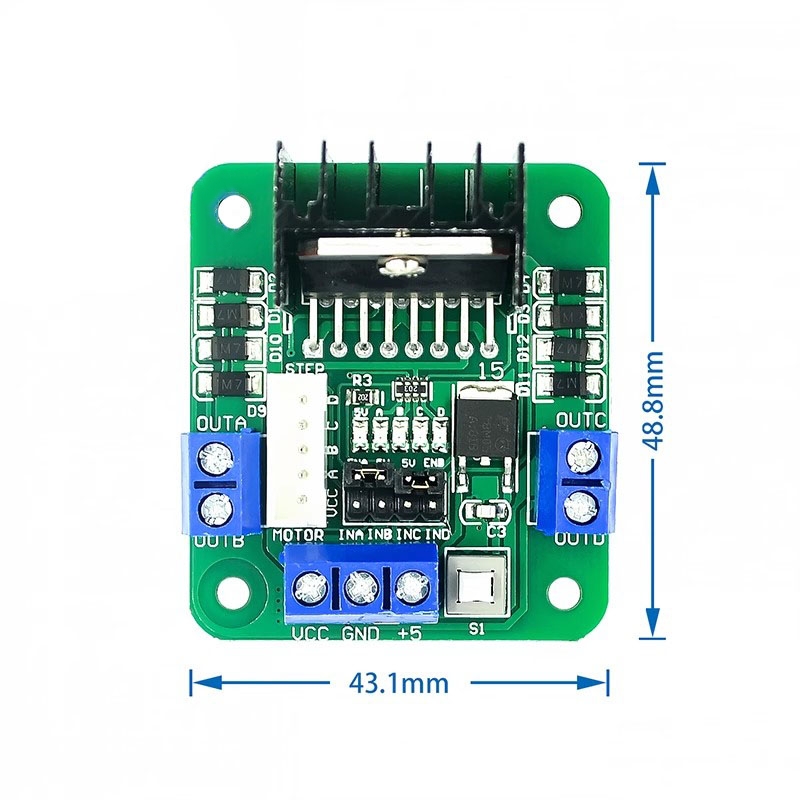

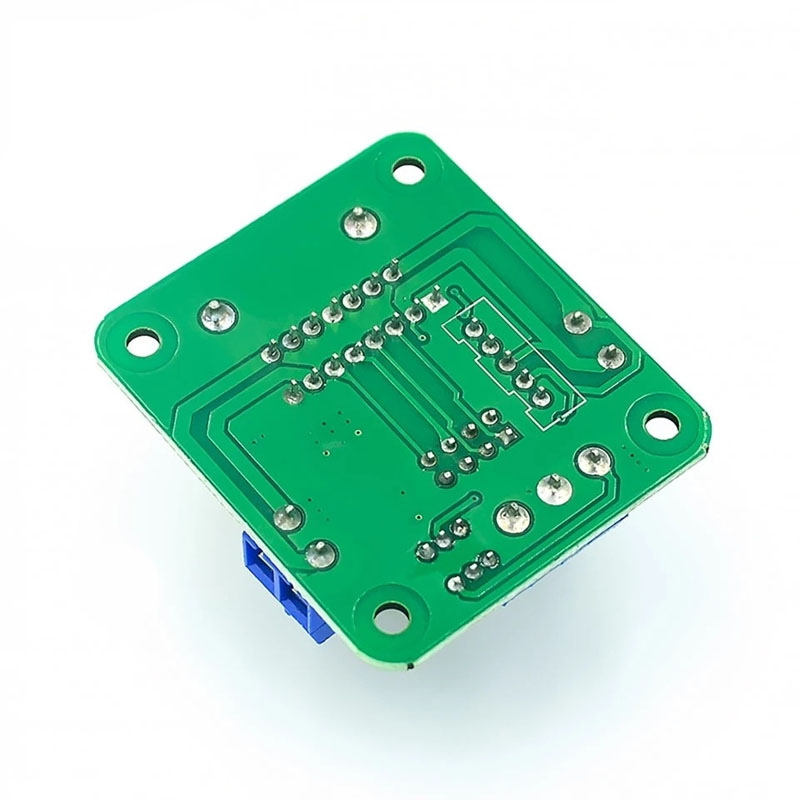

L298N Motor Driver Board Green

Product parameters:

1. Driver chip: L298N dual H-bridge DC motor driver chip

2. The power supply range of the driving part terminal Vs:+5V~+35V; If it is necessary to take power from the board, the power supply range is Vs:+7V~+35V

3. Peak current of the driving part Io: 2A

4. Logic part terminal power supply range Vss:+5V~+7V (can be powered from the board+5V)

5. Working current range of logic part: 0-36mA

6. Control signal input voltage range:

Low level: -0.3V ≤ Vin ≤ 1.5V

High level: 2.3V ≤ Vin ≤ Vss

7. Enable signal input voltage range:

Low level: -0.3 ≤ Vin ≤ 1.5V (control signal invalid)

High level: 2.3V ≤ Vin ≤ Vss (effective control signal)

8. Power consumption: 20W (at temperature T=75 ℃)

9. Storage temperature: -25 ℃~+130 ℃

10. Driver board size: 48mm * 43mm * 33mm (with fixed copper column and heat sink height)

11. Drive plate weight: 33g

12. Other extensions: Control the direction indicator light and logic part of the power interface inside the board.

Instructions for use:

Stepper motor drive: The ENA and ENB on the board are effective at high levels, and the level here refers to the TTL level. ENA is the enabling end for A1 and A2, and ENB is the enabling end for B1 and IB2. BJ is connected to the common terminal of the stepper motor.
