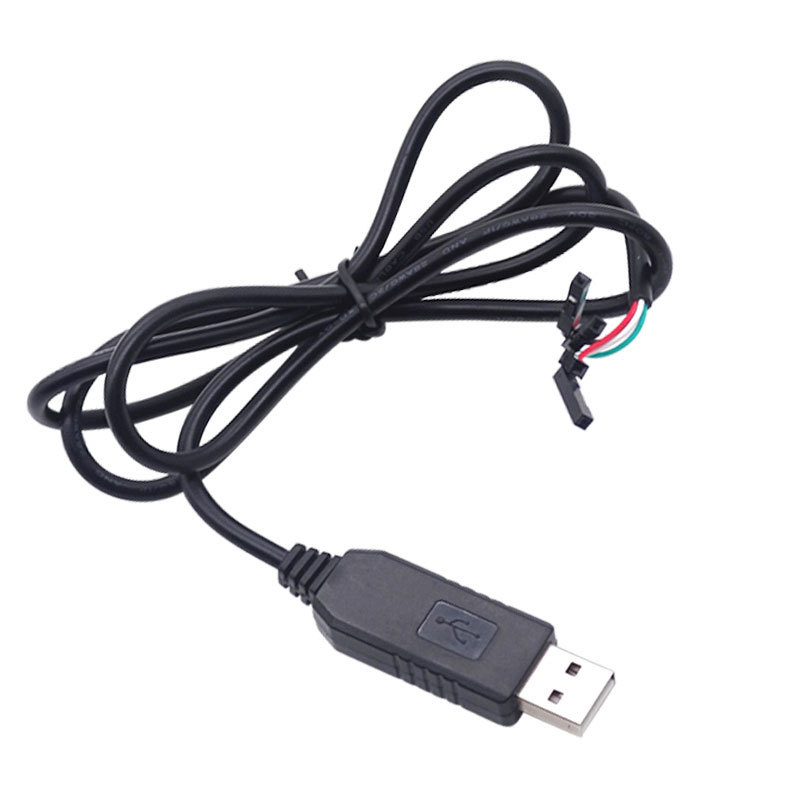

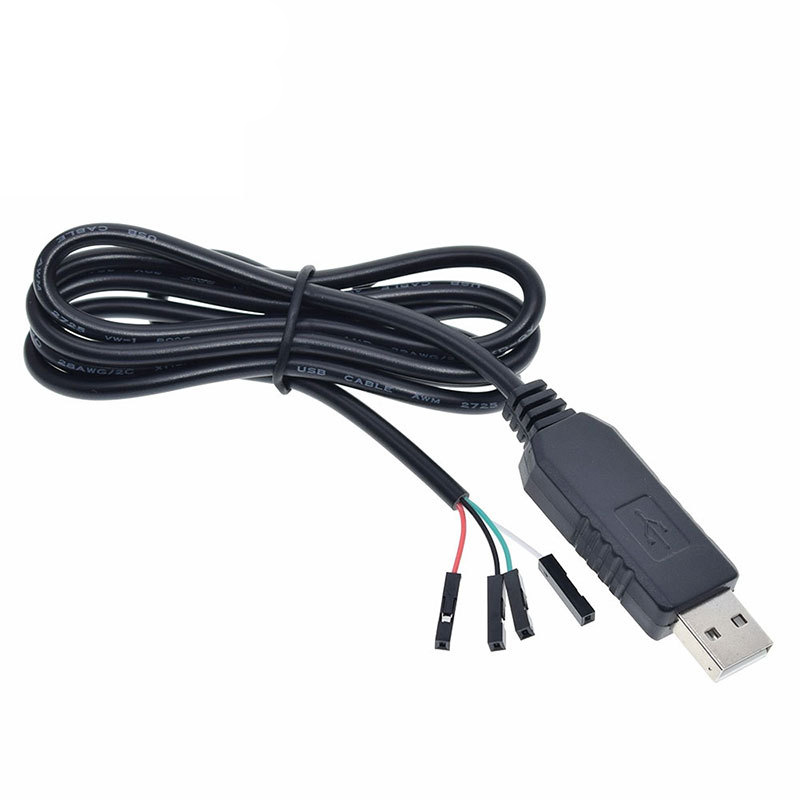

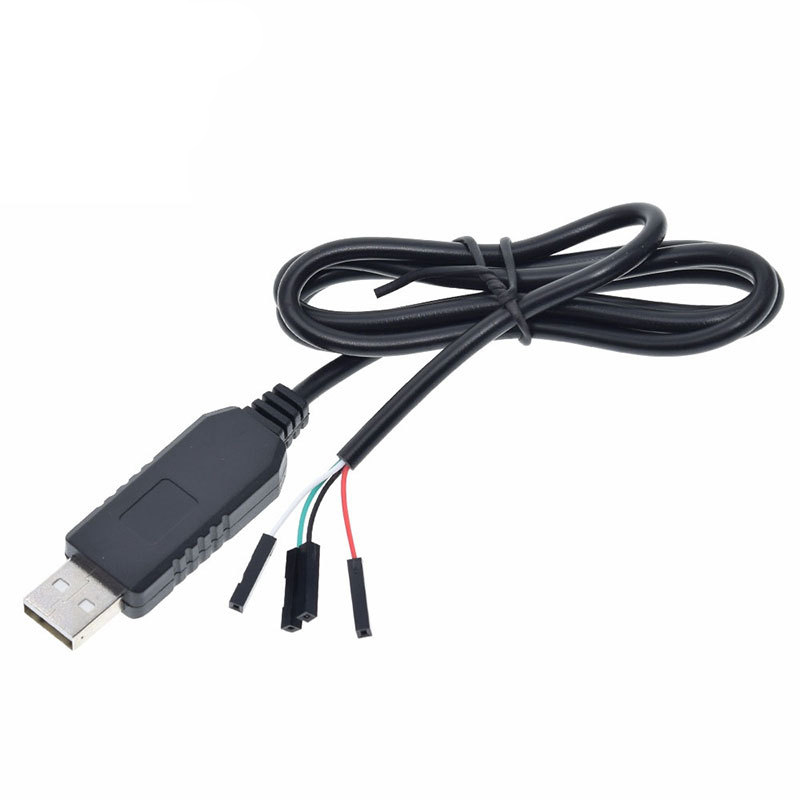

1M PL2303HX USB to TTL RS232 Module Upgrade USB to Serial Port Download Cable Middle Nine Brush Machine CableItem NO.: PL2303HX USB to TTL
-
Customized Requirements
- Quantity
-
-
- Product Name: 1M PL2303HX USB to TTL RS232 Module Upgrade USB to Serial Port Download Cable Middle Nine Brush Machine Cable
- Item NO.: PL2303HX USB to TTL
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: PL2303HX , USB to TTL RS232 Module , USB to Serial Port Download Cable
- Creation Time: 2024-04-13
1M PL2303HX Brush Machine Cable
Pin Connection Method and Instructions:
Before connecting, please be sure to find the pin definition, especially GND must not be connected to pins with voltage, and the RX and TX terminals should not be connected to VCC pins. (Some VCC pins have been measured to have a voltage as high as 14V.) Misconnection will result in the burning of the adapter chip. Please be careful not to use your own small board for experiments, otherwise we will not be responsible for burning it. Be sure to find the correct pin definition before connecting.
Connection Method:
Once again, brushing the machine only requires 3 wires, usually only RX TX GND signal wires are used, and VCC does not need to be connected. Above are friends with 4 or 5 pins, so there is no need to connect VCC and BT pins. When using, please connect RXD to the target board TX, TXD to the target board RX, and GND to GND. If this is not possible, switch between RX and TX.
