CP2112 TPYC-C MICRO-USB Interface Debugging Board USB to I2C Communication ModuleItem NO.: CP2112 I2C
-
Customized Requirements
- Quantity
-
-
- Product Name: CP2112 TPYC-C MICRO-USB Interface Debugging Board USB to I2C Communication Module
- Item NO.: CP2112 I2C
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: MICRO , CP2112 , TPYC-C , USB to I2C Communication Module , Debugging Board
- Creation Time: 2024-05-06

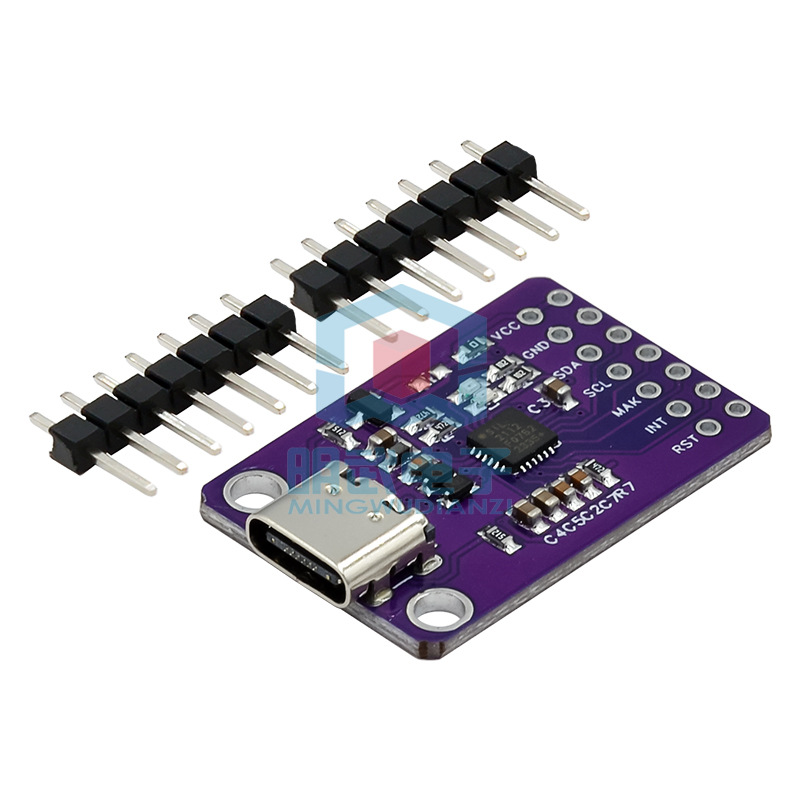

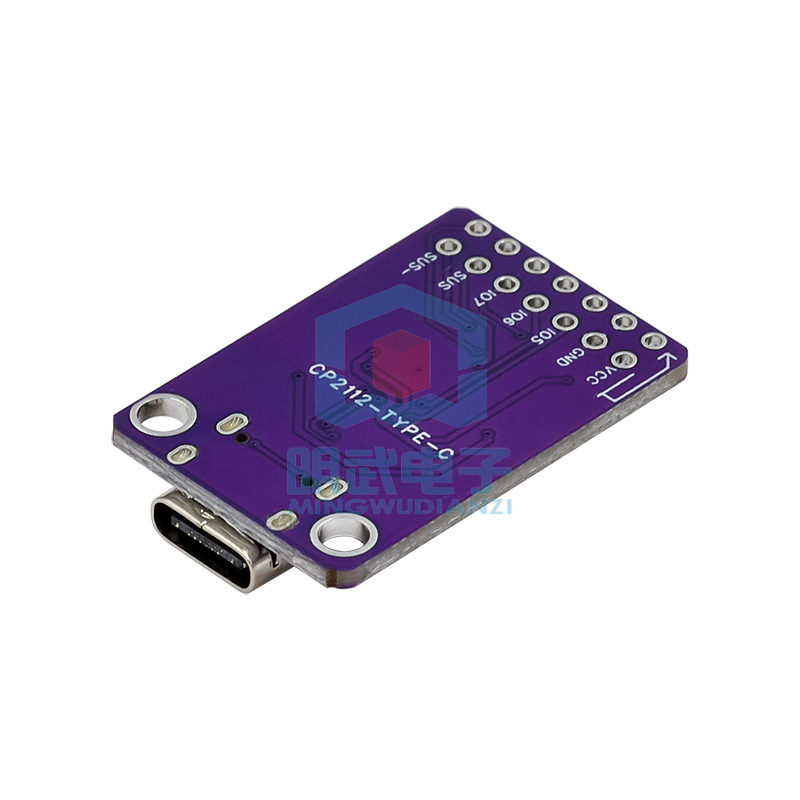

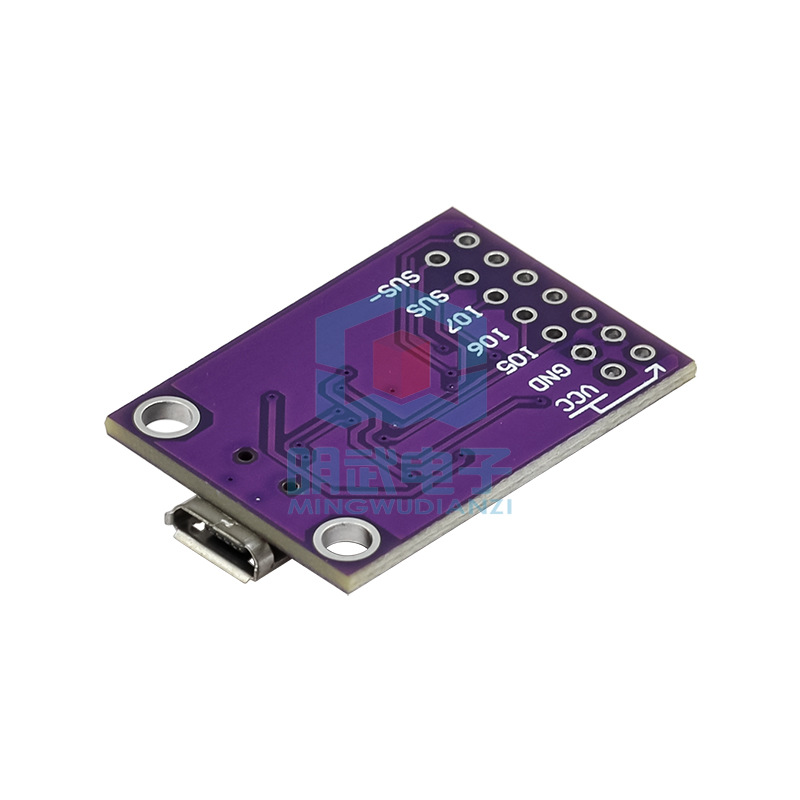

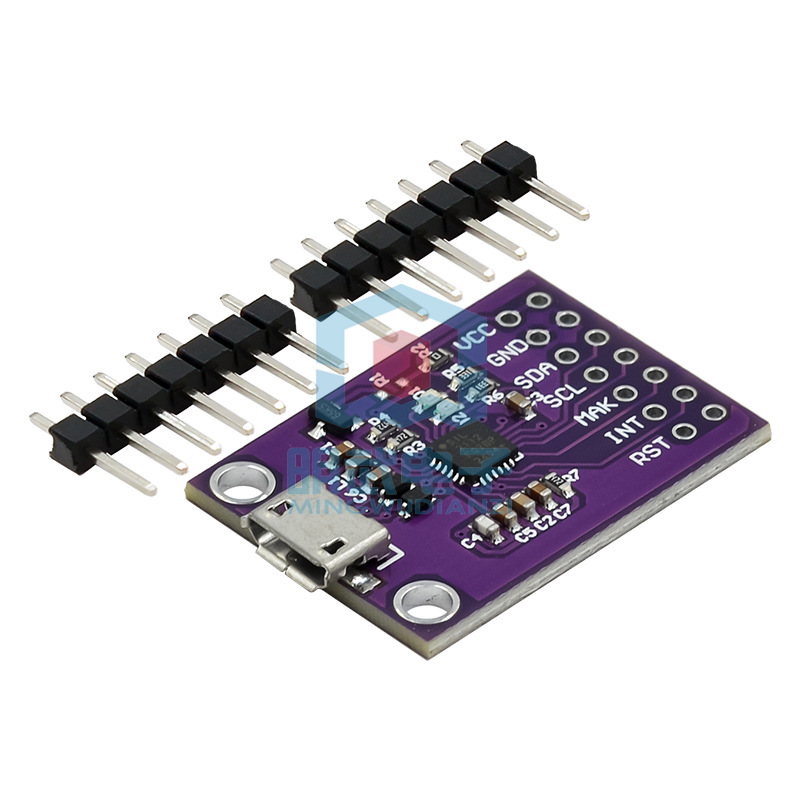

CP2112 Debugging Board
Product features:
The highly integrated USB to SMBus bridge controller of CP2112 integrates a USB 2.0 full speed functional controller, a USB transceiver oscillator, and eight GPIO pins. All customization and configuration options can be selected through a simple GUI based configurator. Standard HID devices do not require the development of complex firmware and drivers. The CP2112 device achieves fast USB connection with minimal development workload.
Product parameters:
USB bus power supply: 4.0 to 5.25V
Self powered: 3.0 to 3.6V
Input/output voltage: 1.8V to VDD
Working environment temperature: -40 ° C to 85 ° C
On chip power reset circuit, on chip voltage regulator: 3.45 V output
Complies with USB specification 2.0 standard; Full speed (12Mbps)
USB suspend status through SUSPEND and/or SUSPEND pins
Integrated 194 byte one-time programmable ROM for storing customizable product information
512 byte SMBus data buffer, configurable clock speed device address, 7-bit value is the slave device address of CP2112
The API from Windows, Mac, and Linux HID to SMBus library can be used for rapid application development, with an open access interface specification.
8 GPIOs can be configured as inputs/outputs and open drain/push-pull outputs, and clock outputs can be configured for external devices ranging from 48MHz to 94kHz, switching LEDs during read/write SMBus

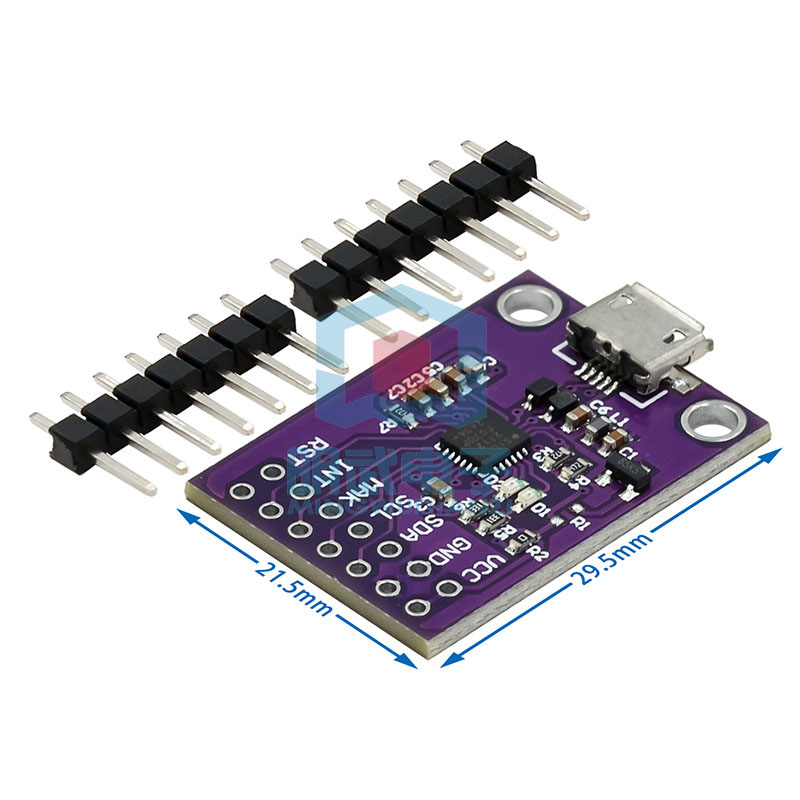

Module size: 29.5mm * 21.3mm, with two M3 mounting holes and one MicroUSB female port
Application scope: portable controllers, USB dongles, data recording
