DIY Creative Electronic Clock Rotating LED Display DS1302 Clock Temperature Display AlarmItem NO.: MK02354

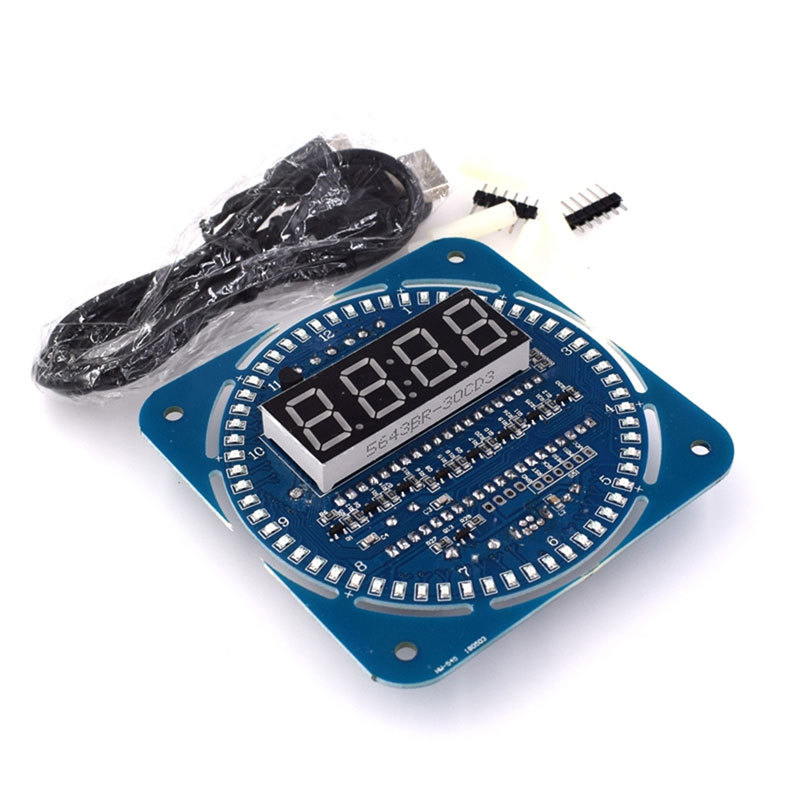

DS1302 DIY Creative Electronic Clock

Product Information:

● Product name: electronic clock

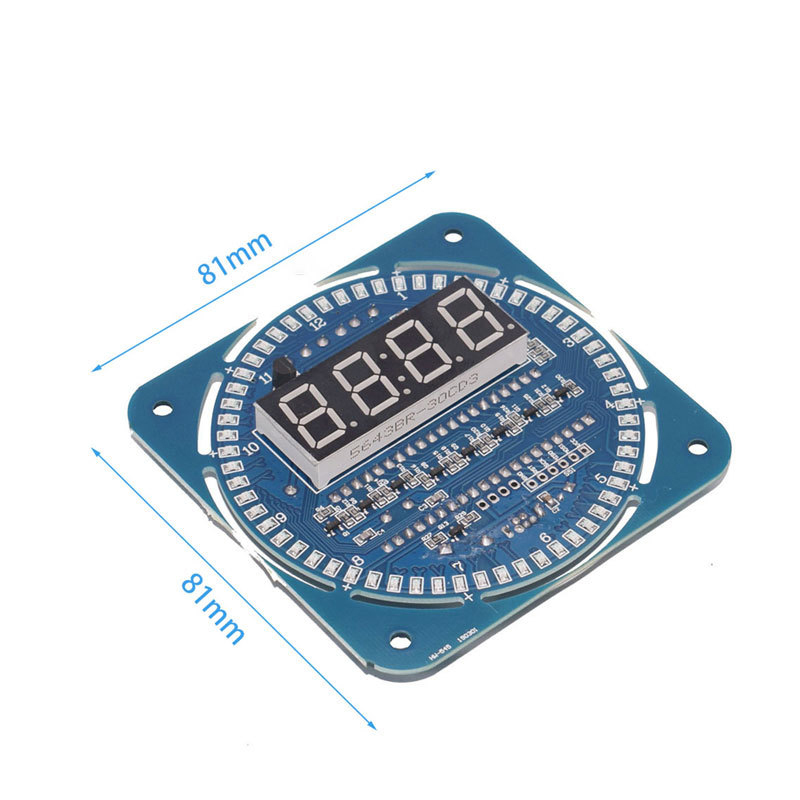

● Size: 81mm * 81mm * 1.6mm (thickness)

● Thickness: 1.6mm Material: FR4 military grade

● PCB board color: blue nixie tube display: red

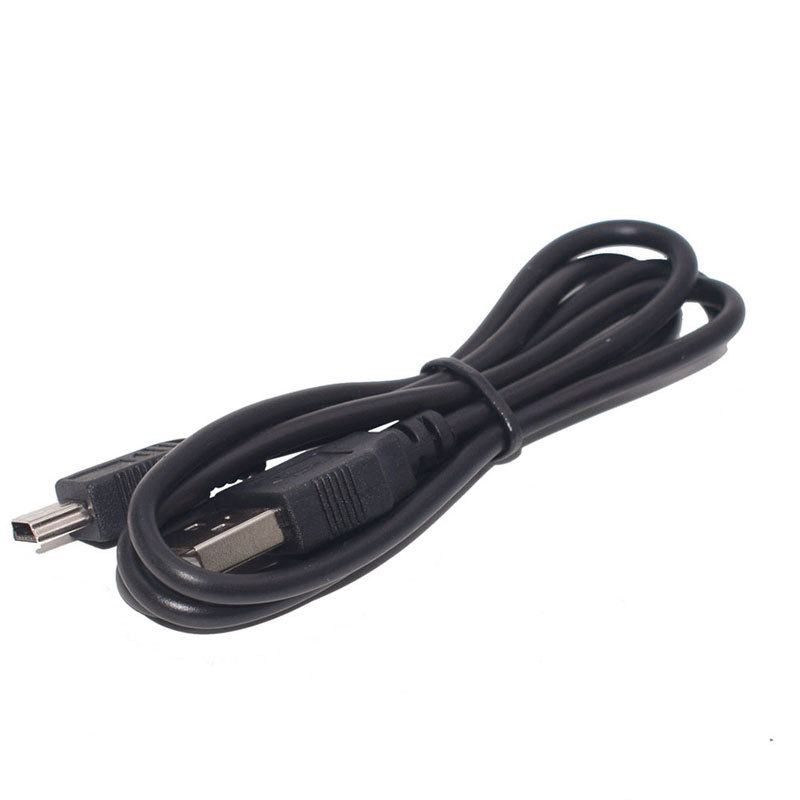

● Power supply voltage: 5V (power supply through miniUSB interface, not battery)

● Other accessories: four studs for consolidation

Baby Function Description:

1. Wheel display of year, month, day, time and temperature: the new version is upgraded to wheel display. It is more convenient and simpler to see the date and temperature without pressing the button!

2. Hour reporting: When the hour reporting function is turned on, the hour is reported from 8:00 to 22:00 every day, and the hour is not reported when sleeping at night. Of course, you can also turn off the hour reporting function!

3. Alarm clock: It has an alarm clock and can set the alarm time at will. In the previous version, many children's shoes said that the alarm time was too long, but many children's shoes said that the alarm time was too short. The boss, in a dilemma, decided to make the noise time adjustable!

4. Temperature alarm: When the ambient temperature is lower than the set minimum temperature or higher than the set maximum temperature, an alarm will be sent to remind you to turn on or off the air conditioner to keep your home at a moderate temperature!

5. Power off and off: after setting the preset time, even if the power is off, it is not necessary to reset the time after power on again.

6. LED display selection: The outer circle LED has up to 10 display patterns.

Key Description:

you 're right! You can achieve the above functions with only 2 keys!! One mode key (MODE) and one addition key (PLUS). There is also a reset key (RST), which is only used for welding debugging.
