Customized Requirements
- Quantity
-
-

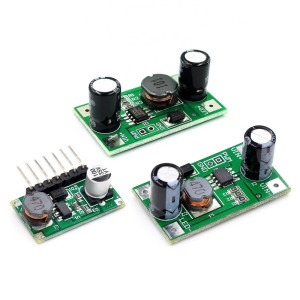

- Product Name: 1W 2W/3W LED Driver 350mA 700mA PWM Dimming Input 5-35V DC Constant Current Module
- Item NO.: 1771080
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 3W , LED Driver , 5-35V , 1W , 2W , DC Constant Current Module
- Creation Time: 2024-04-11
1W 2W/3W LED Driver
Product Description:
Product number: LED-3W/2W Input range 5-35V
Output 700mA ± 20mA to drive 1-10 3W LEDs
Support PWM dimming high level off output low level on output.
The buck working mode ensures that the total voltage difference of the LED is 2-3V lower than the input power voltage to operate.

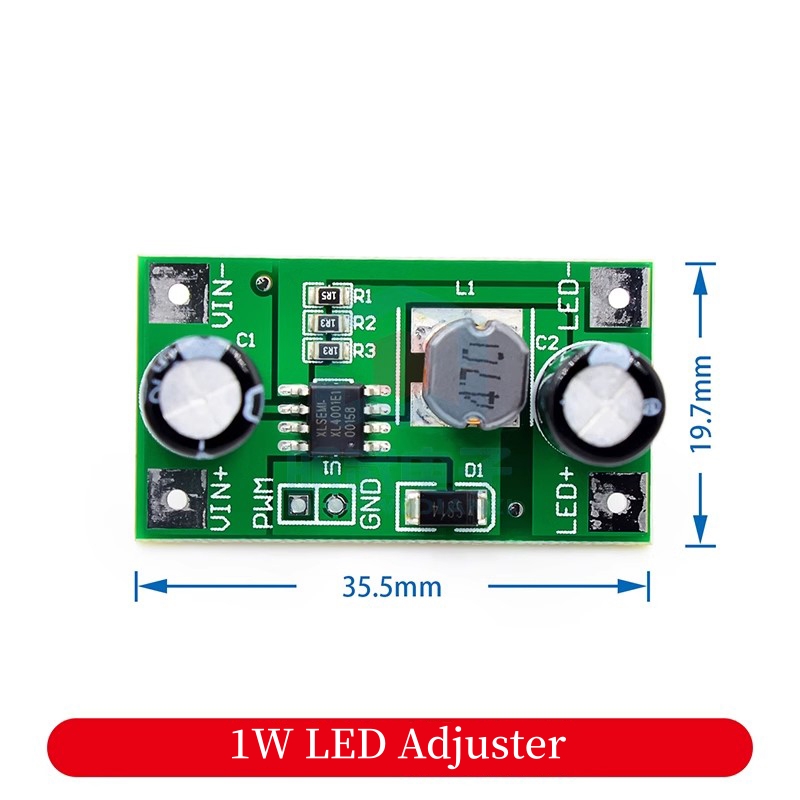

Ultra small volume design (length 3.6cm * width 2cm), low noise, and safe features
Adopting efficient, low consumption, and stable chips to achieve energy conservation and environmental protection goals.
Constant output current, low ripple. Ensure the safety and stability of LED usage, improve the light efficiency of LED, and reduce light decay.
Overload, short circuit, and overcurrent protection ensure the safety of the power supply.
Wide voltage input, VIN+is the input positive pole VIN - is the power input negative pole
LED+connected to the anode of the LED, LED - connected to the cathode of the LED.
