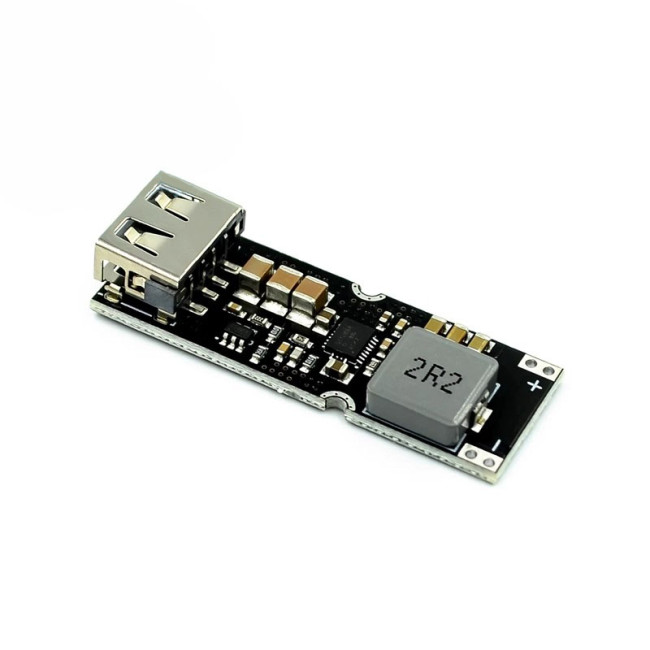

  • TPS61088 Boost Fast Charging Power Module



    Precautions:



    ● The module does not come with reverse protection, remember not to connect the positive and negative terminals of the input terminals incorrectly.

    ● The input voltage range is 2.8~4.5V, and 5V input is not allowed.

    ● Lithium batteries must be equipped with a protective plate with a continuous current of at least 5A.

    ● This module can be powered by a single lithium battery or by multiple parallel power supplies.



    Product Parameters:



    ● Name: Single lithium battery boost fast charging power module

    ● Main control chip: TPS61088A

    ● Identification chip: FP6601Q

    ● Input voltage: 2.8-4.5V, very suitable for 3.7V polymer lithium batteries

    ● Output voltage: defaults to 5V, and after triggering fast charging, it is between 4.5V and 12V according to the protocol.

    ● Input rated current: 8A

    ● Output current: 5V3A, 9V2A, 12V2A. Adaptive output current.

    ● Output power: up to 24W.

    ● Support protocols: QC2.0, QC3.0, Huawei FCP, DCP protocols

    ● The efficiency can reach 93%, with a typical value of 90%.

    ● Input wiring method: solder wire, try to use thick wire as much as possible

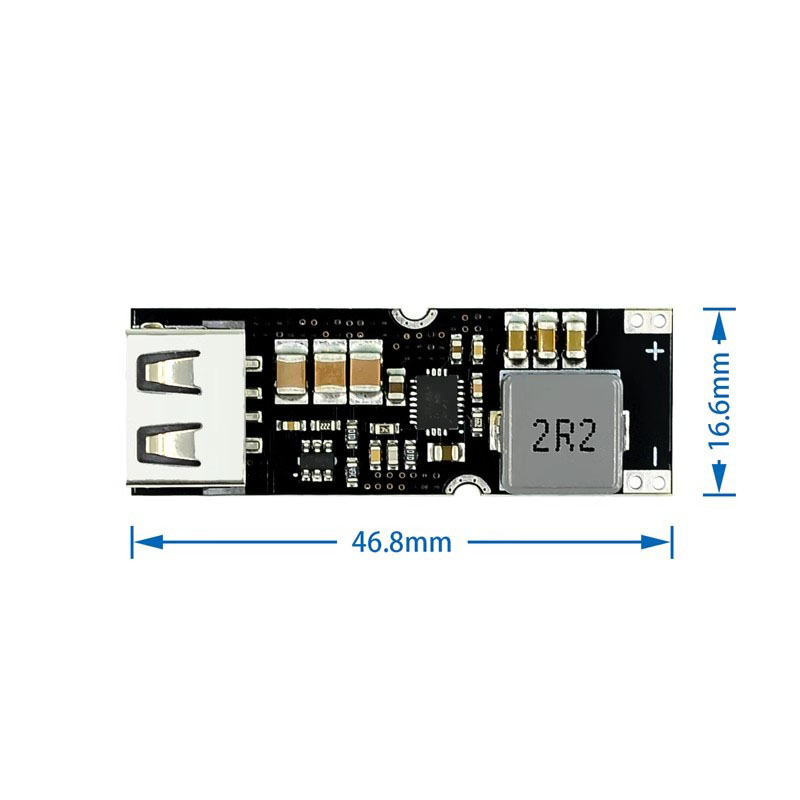

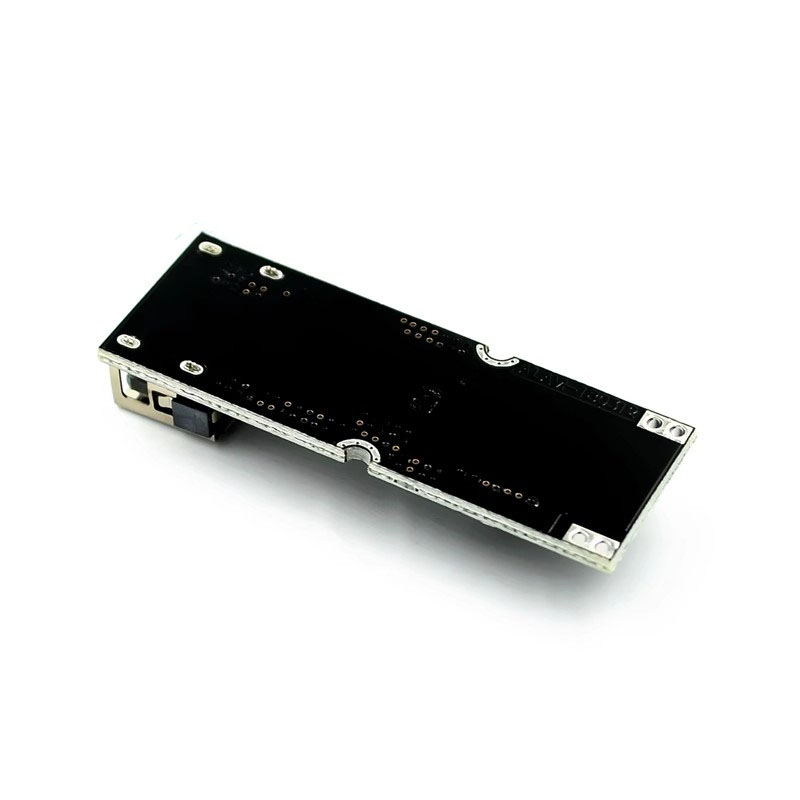

    ● Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)

    ● Module net weight: approximately 7 grams



    Supplementary Chip Related Information:



    The Tianyu FP6601Q chip integrates the HiSilicon fast charging protocol and Qualcomm QC2.0/3.0USB interface fast charging protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports Apple and Samsung devices. This chip can automatically adjust the voltage by checking whether the currently connected device is a QC2.0/3.0 or FCP device.



    Product Features:



    1. Supports FCP voltage and current output protocol.

    2. Supports Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output.

    3. Automatically recognize FCP and QC2.0/3.0 fast charging protocols.

    4. Support protocol equipment for telecom enterprise YD/T 1591.



    TPS61088 is a high power density fully integrated boost converter equipped with an 11m Ω power switch and a 13m Ω rectifier switch, providing a small-scale solution for portable systems. TPS61088 has a wide input voltage range of 2.7V to 12V, providing support for applications using single or two lithium batteries. This device has a 10A switching current capability and can provide an output voltage of up to 12.6V.



    TPS61088 adopts an adaptive constant turn off time peak current control topology to adjust the output voltage. Under medium to heavy load conditions, TPS61088 operates in PWM mode. Under light load conditions, the device can select the following two operating modes through the MODE pin. One is the PFM mode with a rate of improvement; Another type is the forced PWM mode that can avoid application problems caused by low switching frequency. The switching frequency in PWM mode can be adjusted within the range of 200kHz to 2.2MHz through an external resistor.



    TPS61088 also implements programmable soft start function and adjustable switch peak current limit function. In addition, the device also provides 13.2V output overvoltage protection, periodic overcurrent protection, and thermal shutdown protection.



    TPS61088 uses 20 pins 4.50mm × 3.50mm VQFN package.



    Product Application Introduction:



    This module can be applied to single lithium-ion batteries with 5V-12V output, for general digital product charging, such as mobile phones, iPad, MP3, PSP, etc. Simply connect the battery to become a high current output mobile power supply. You can also set the output voltage to power products between 5-12V.
