PD/QC/AFC Fast Charge Decoy Trigger Support 5V 9V 12V 15V 20V Fixed Voltage OutputItem NO.: PD/QC/AFC
-
Customized Requirements
- Quantity
-
-
- Product Name: PD/QC/AFC Fast Charge Decoy Trigger Support 5V 9V 12V 15V 20V Fixed Voltage Output
- Item NO.: PD/QC/AFC
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: PD/QC/AFC , Fast Charge Decoy Trigger , Support 5V 9V 12V 15V 20V , Fixed Voltage Output
- Creation Time: 2024-04-08
PD/QC/AFC Fast Charging Decoy 5V 9V 12V 15V 20V
Product Information:
● Fast charging support protocols: PD2.0/PD3.0, QC2.0/QC3.0, AFC
● Supported voltage: 5V, 9V, 12V, 15V, 20V (voltage stepping not supported)

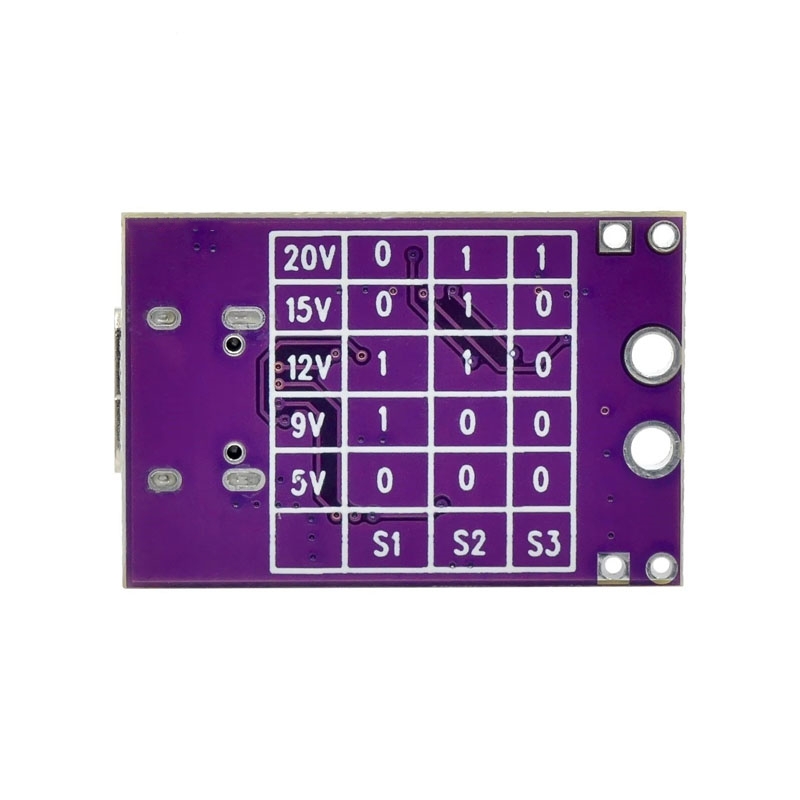

● Voltage regulation method: According to the table on the back of the board, adjust the dial switch to control the voltage output
Attention:
● After adjusting the dial switch, as there is no voltage indicator light, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.
● If the dial switch is not adjusted according to the table, the module will output any of the above voltages.
