1W 3W High-Power Infrared Transmission Module 940nm LED Infrared Remote Control Transmission TubeItem NO.: IR1W3W
-
Customized Requirements
- Quantity
-
-
- Product Name: 1W 3W High-Power Infrared Transmission Module 940nm LED Infrared Remote Control Transmission Tube
- Item NO.: IR1W3W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 3W , 1W , Infrared Transmission Module , 940nm , LED Infrared Remote Control Transmission Tube
- Creation Time: 2024-05-06

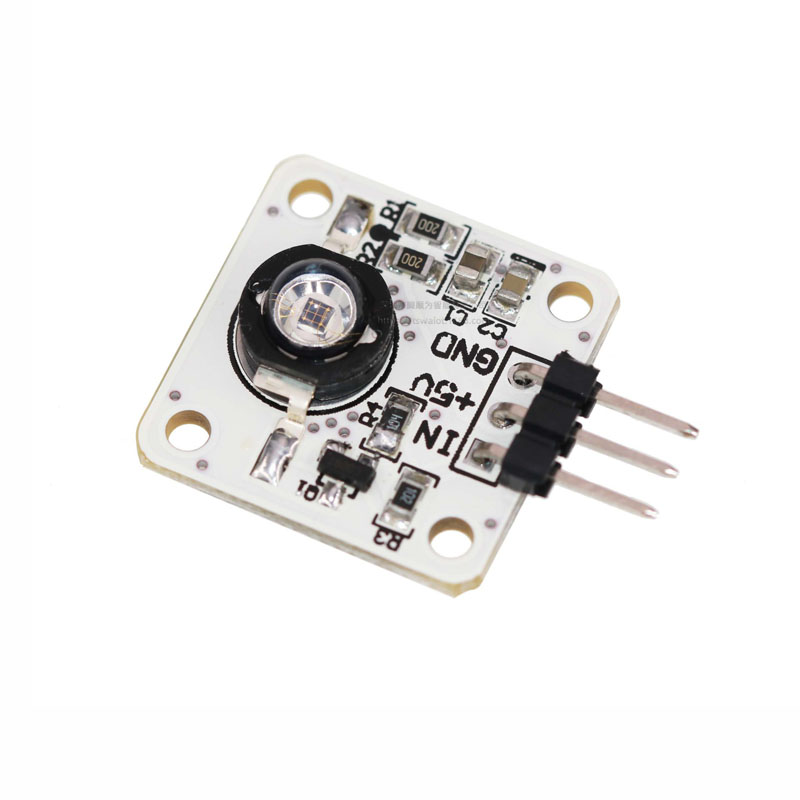

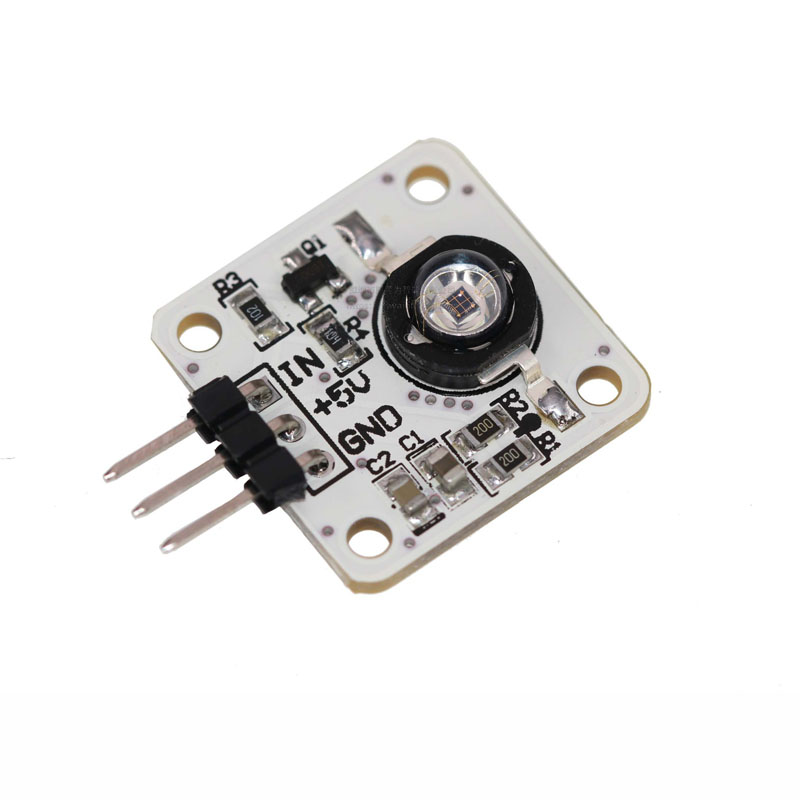

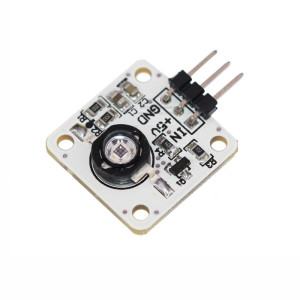

High-Power Infrared Transmission Module
Product Information:
● Module working voltage: 5V
● Model: 940N infrared ray
● Power: 1W 3W (shipped based on the power selected for the package, the higher the power, the farther the transmission distance)
● Current 1W: 350MA 3W: 700MA
● The MOS amplifier circuit can be directly connected to the microcontroller IO drive, with a current limiting circuit.
● The infrared linear emission distance is 50 meters, which is not possible with ordinary infrared tubes.
● It is recommended that infrared rays should only be used indoors. Strong light actually has a significant impact on infrared distance.
● Circuit board size: 20mm * 20mm
● Service life>50000 hours
● Working temperature: - 20 degrees to 70 degrees
● Angle: 120 degrees
