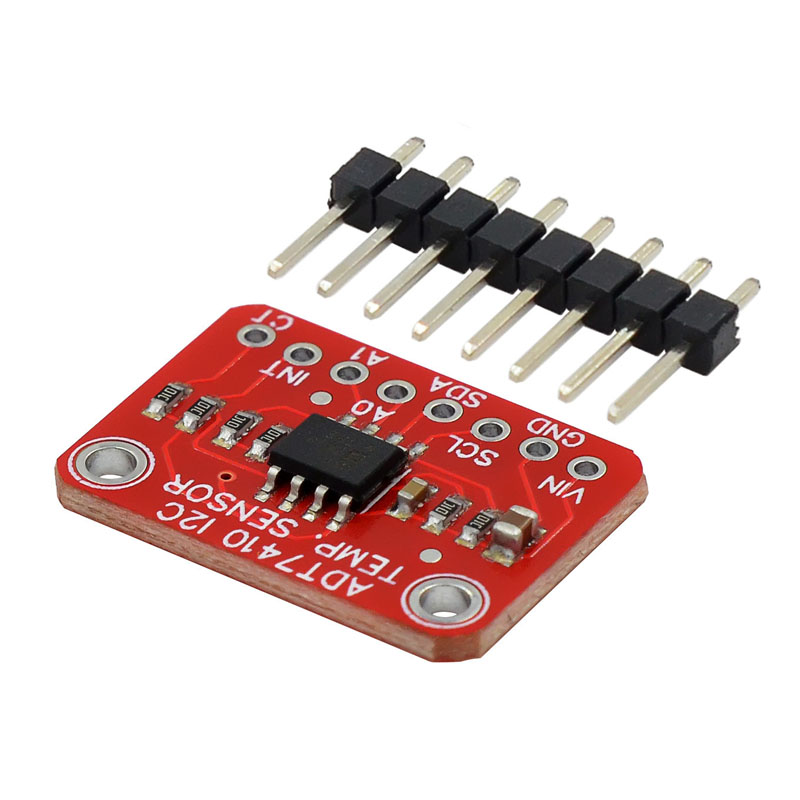

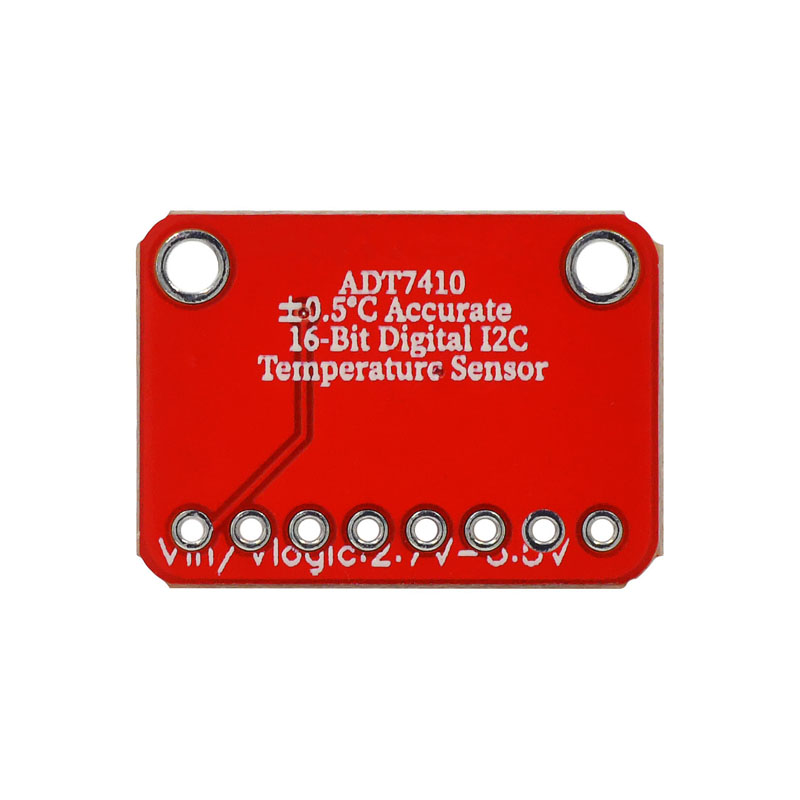

ADT7410 High-Precision Temperature Sensor Module I2C Adapter Board Development BoardItem NO.: ADT7410
-
Customized Requirements
- Quantity
-
-
- Product Name: ADT7410 High-Precision Temperature Sensor Module I2C Adapter Board Development Board
- Item NO.: ADT7410
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: High-Precision , Temperature Sensor Module , ADT7410
- Creation Time: 2024-05-10
ADT7410 High-Precision Temperature Sensor
Product Description:
ADT7410 is an I2C temperature sensor with a 16 bit 0.0078 ℃ temperature resolution and a 0.5 ℃ temperature tolerance. Connect it to a microcontroller or single board computer to easily obtain reliable temperature readings;
ADT7410 has 2 address pins, so there can be up to 4 sensors on one I2C bus. There are also interrupt and critical temperature alarm pins. The power and logic of the sensor range from 2.7V to 5.5V, making it easy to integrate.
Technical Details:
● Wide input voltage range: 2.7V to 5.5V
● Maximum 16 bit temperature resolution (0.0078 ℃/lsb), default value is 13 bits (0.0625 ℃/lsb)
● High precision temperature tolerance:
± 0.5 ℃ -40 ℃ to+105 ℃ (2.7V to 3.6V)
± 0.4 ℃ -40 ℃ to+105 ℃ (3.0V)
● Configurable I2C addresses allow up to 4 sensors on the I2C bus
● Running on I2C, therefore only two shared lines are required
