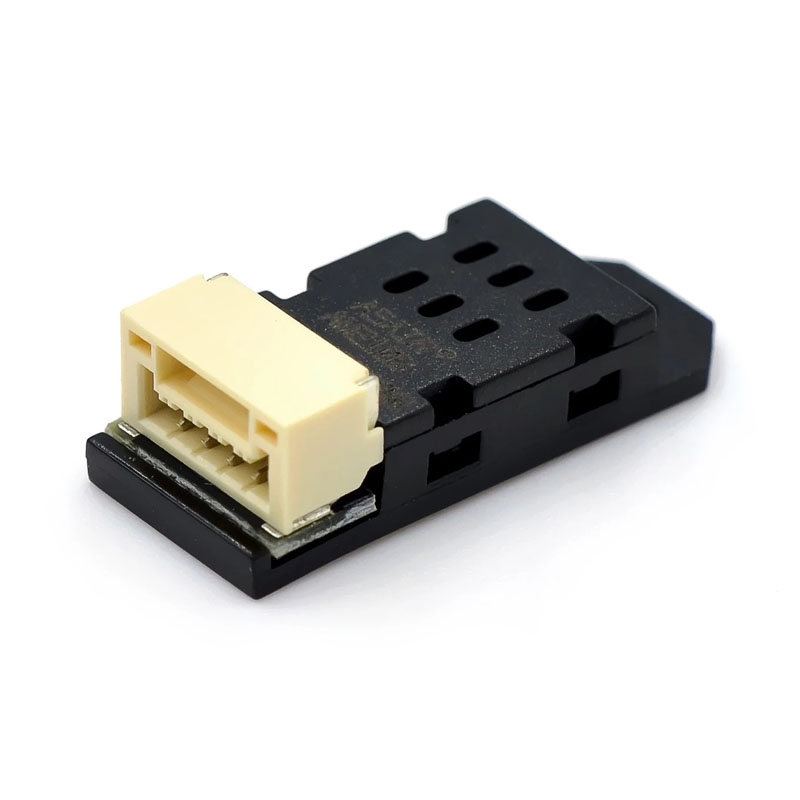

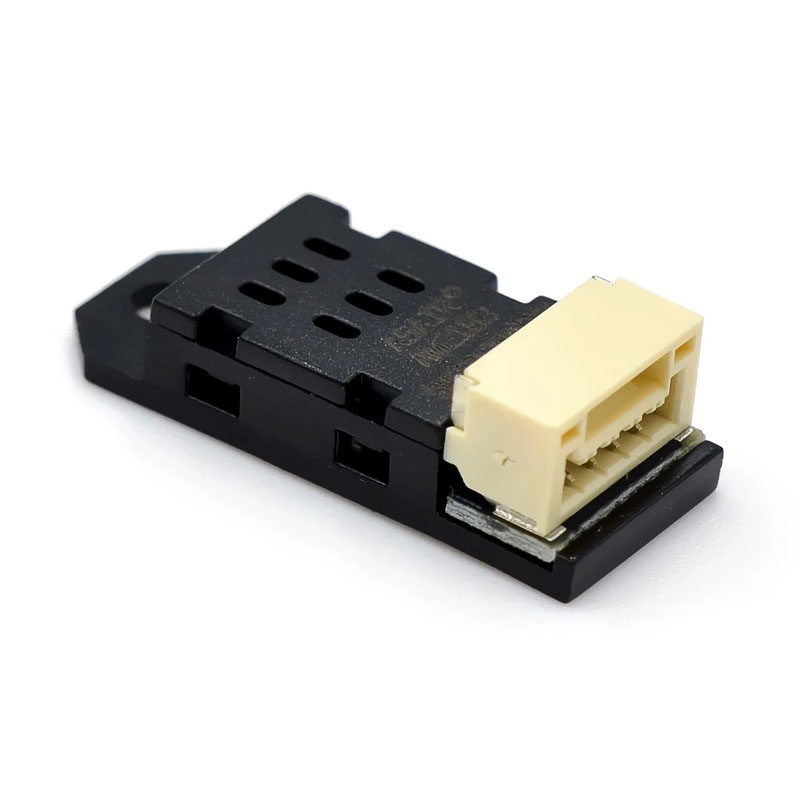

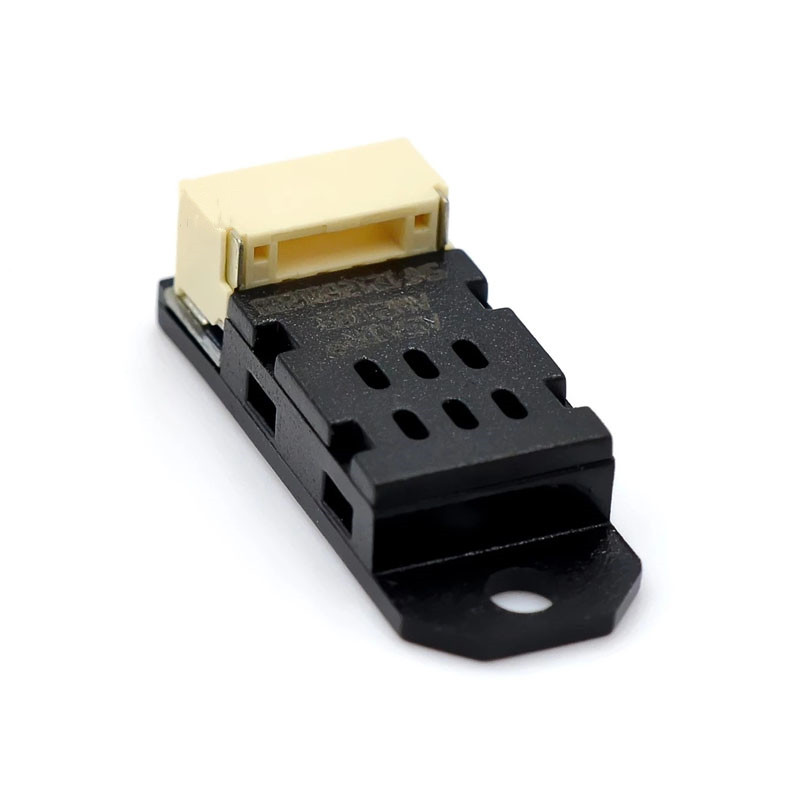

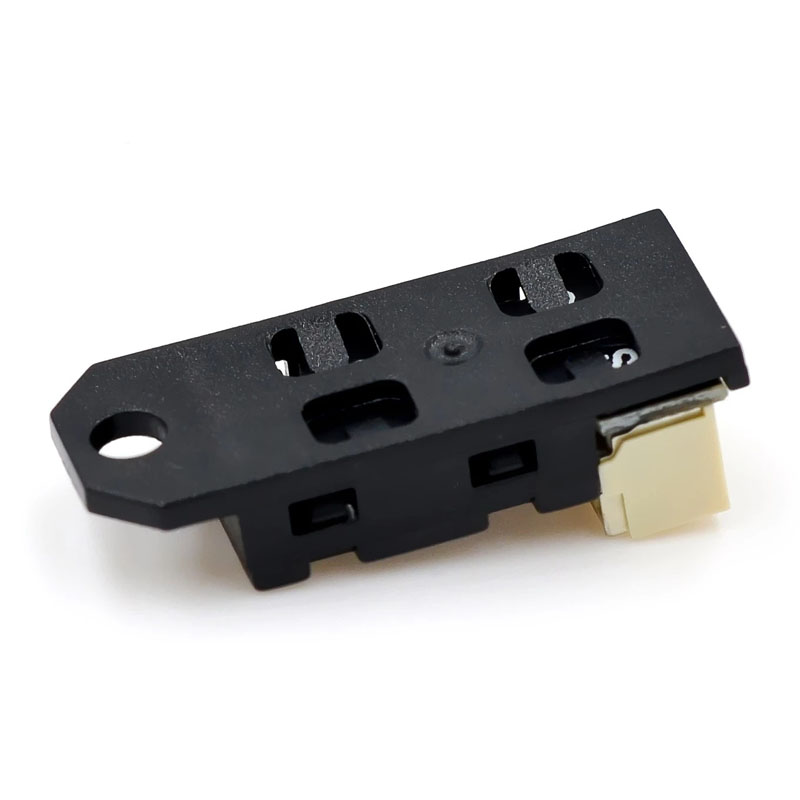

AM2108 Micro Digital Temperature and Humidity Sensor

Product Introduction:

AM2108 is a temperature and humidity composite sensor module that contains calibrated digital signal output. It applies the latest digital module acquisition technology and temperature and humidity sensor technology to output standard digital signals through I2C connection. The product adopts small terminals with a spacing of 1.27mm, which greatly reduces the volume of the product through miniaturization design, meeting the usage needs of more small equipment customers.

AM2108 is a temperature and humidity composite sensor with calibrated digital signal output, and applies dedicated digital module acquisition technology and temperature and humidity sensor technology to ensure high reliability and excellent long-term stability of the product. The sensor outputs a calibrated digital signal in standard I2C mode.

AM2108 is a sensor that can maintain long-term stability in harsh environments and accurately measure temperature and humidity over a large measurement range. The product quality is comparable to international frontline products, and can fully replace imported products with domestic ones. It can be widely used in smart home appliances, HVAC, dehumidifiers, automobiles, medical, electronic consumer goods, automatic control, data recorders, and meteorological station isothermal humidity detection and control.

The new generation of sensors has made improvements in wide voltage and low power consumption, enabling end devices to operate energy-efficient. Each sensor has been calibrated and tested to ensure that the product can leave the factory with high quality.

Product Parameters:

● Model: AM2108

● Power supply voltage: DC2.5-5.5V

● Measurement range: Temperature: -40~+80 ℃ Humidity: 0~100% RH

● Measurement accuracy: Temperature: ± 0.5 ℃ Humidity: ± 3% RH

● Resolution: Temperature: 0.01 ℃ Humidity: 0.024% RH

● Output signal: I2C signal
