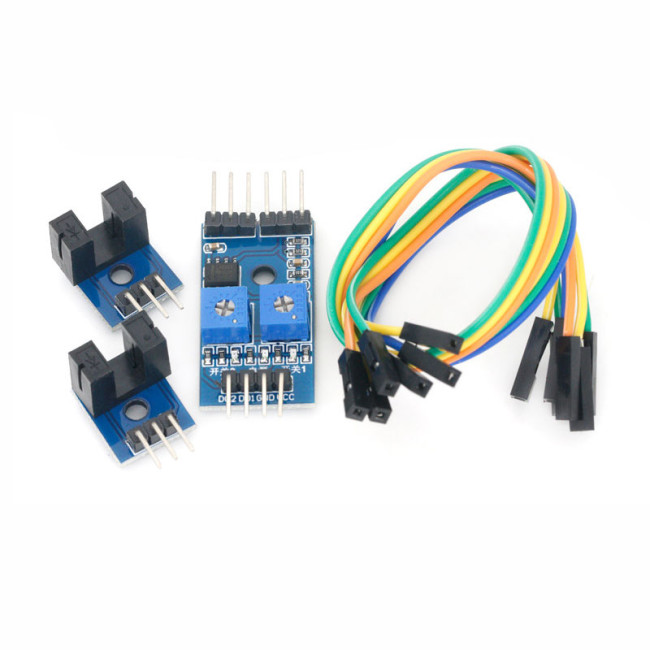

2-Way Speed Measurement Sensor Module Count Module Motor Speed Measurement Slot Type Optocoupler Module

2-Way Speed Measurement Sensor Module Count Module Motor Speed Measurement Slot Type Optocoupler ModuleItem NO.: 2-way speed

US$ 4.22
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
2-Way Speed Measurement Sensor Module Count Module Motor Speed Measurement Slot Type Optocoupler Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

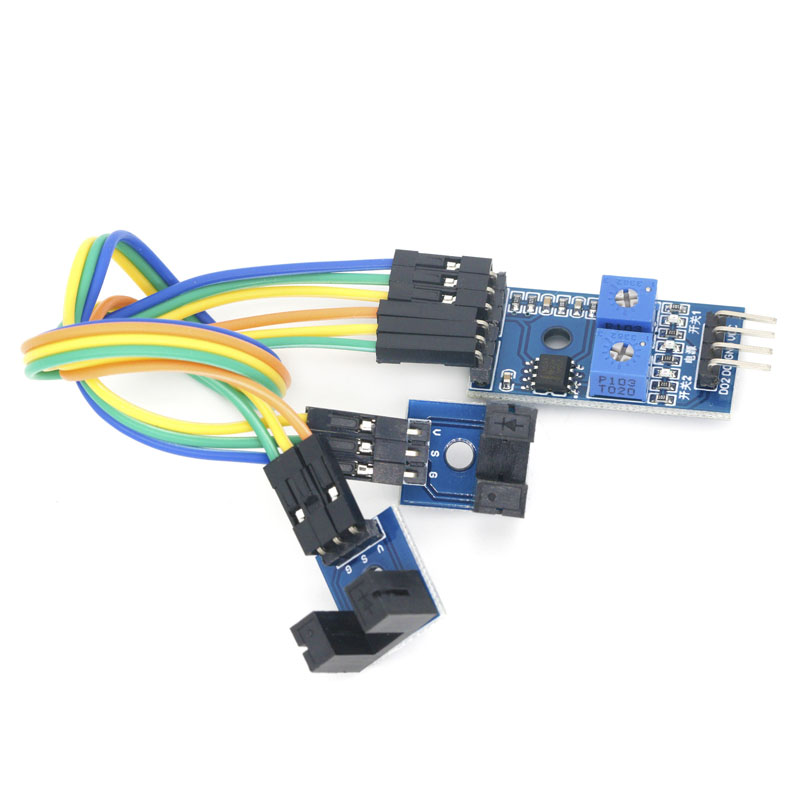

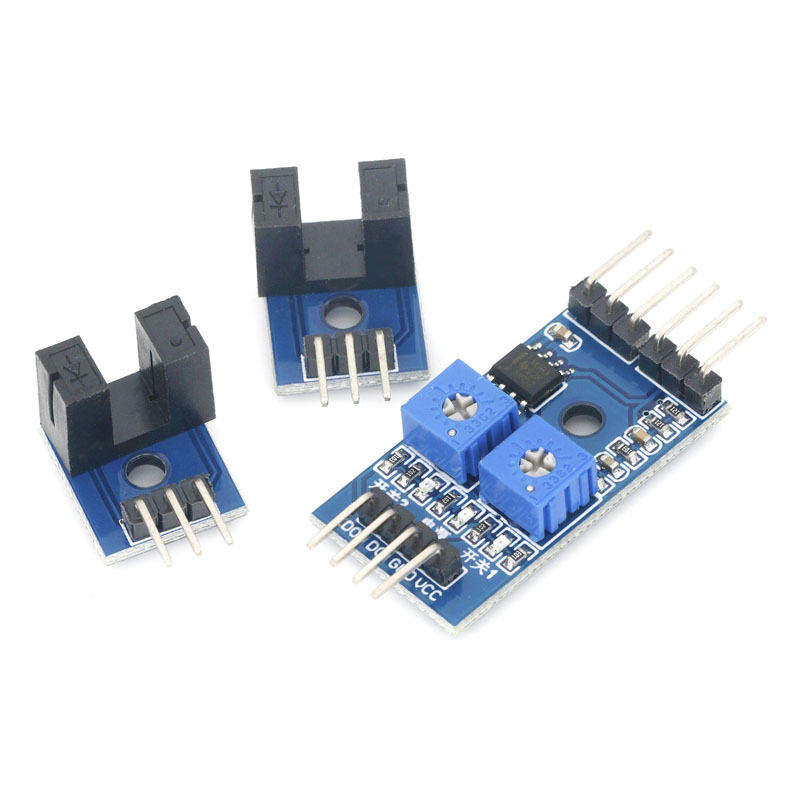

  • 2-Way Speed Measurement Sensor Module



    Purpose:



    Widely used for motor speed detection, pulse counting, position limit, etc., with 2-way detection.



    Module Features:



    1. Using an imported slot type optocoupler sensor

    2. The groove width is 5mm.

    3. There is an output status indicator light, with the output high level light off and the output low level light on.

    4. With occlusion, output low level; No occlusion, high level output.

    5. Comparator output, clean signal, good waveform, strong driving ability, over 15mA.

    6. Working voltage 3.3V-5V

    7. Output form: digital switching output (0 and 1)

    8. Equipped with fixed bolt holes for easy installation

    9. Small board PCB size: 3.2cm x 1.7cm

    10. Use a wide voltage LM393 comparator



    Module Instructions:



    1. When there is no obstruction in the module slot, the receiver tube is turned on, and the module DO outputs a low level; when there is obstruction, the DO outputs a high level;

    2. The module DO can be connected to a relay to form a limit switch and other functions, and can also be connected to an active buzzer module to form an alarm.
