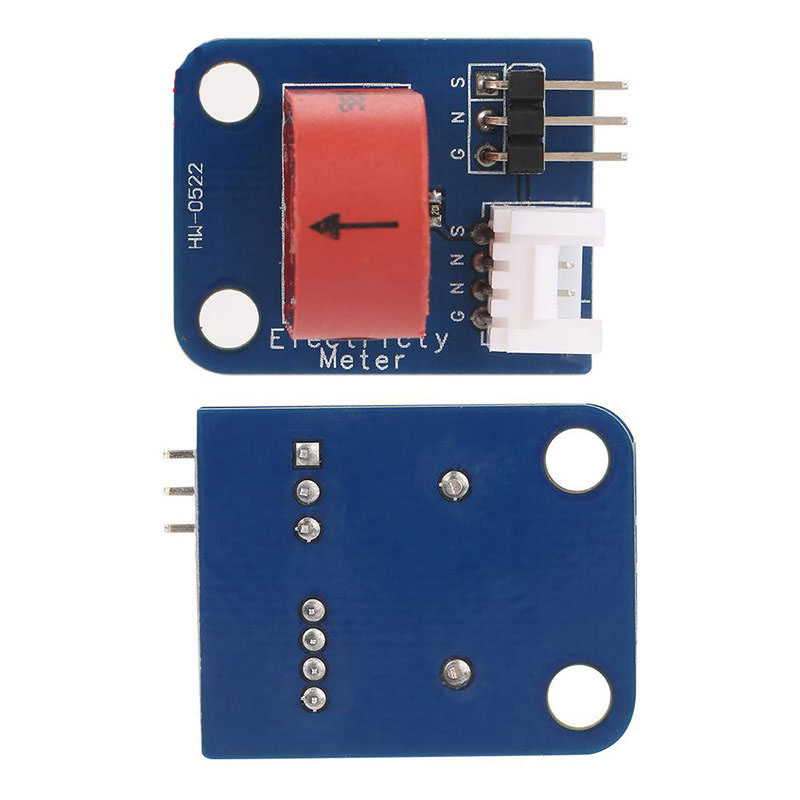

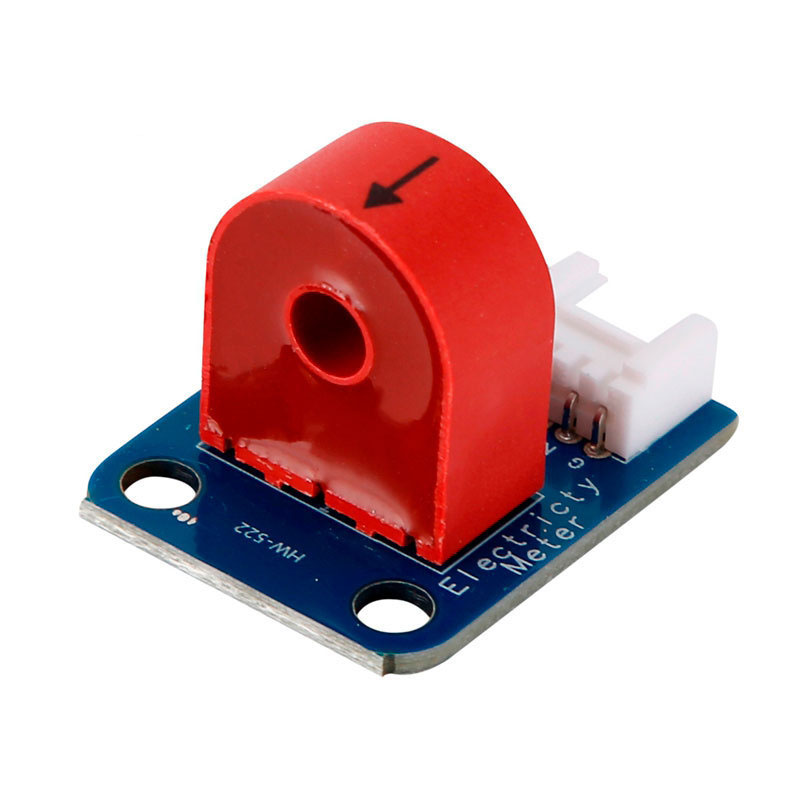

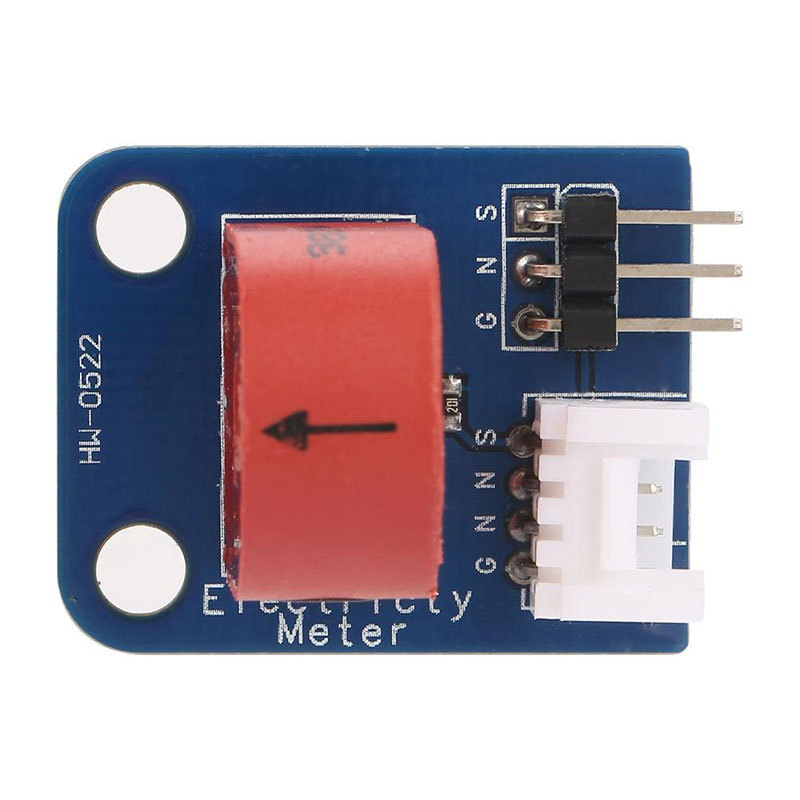

AC Current Transformer Current Sensor Module 0-5A 3p/4p Interface Precision Miniature Current Transformer

AC Current Transformer Current Sensor Module 0-5A 3p/4p Interface Precision Miniature Current TransformerItem NO.: AC current transformer

US$ 5.01
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
AC Current Transformer Current Sensor Module 0-5A 3p/4p Interface Precision Miniature Current Transformer
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • AC Current Transformer



    Features:



    ● Analog Ammeter module. Transformers can only sense AC power

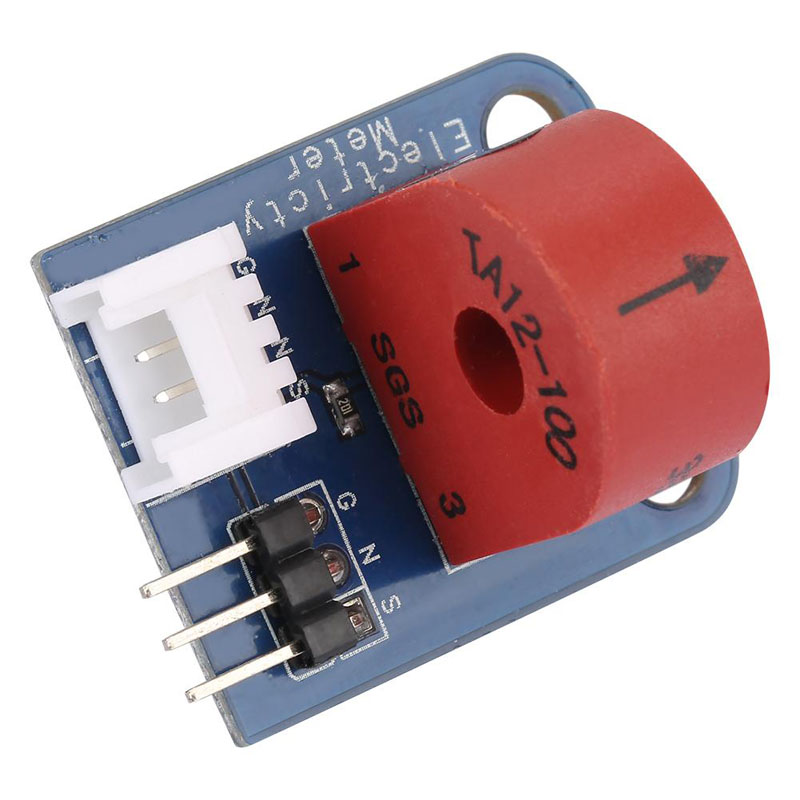

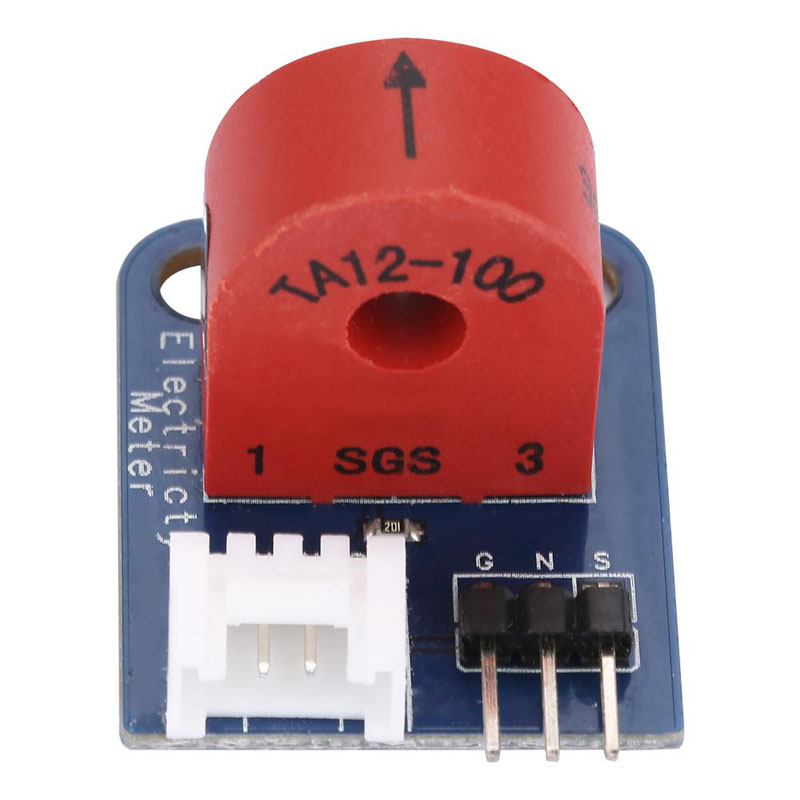

    ● This current sensor is based on the TA12-100 current converter, which can convert high current AC signals into small amplitude signals.

    ● 3-wire electronic block interface, input 5V-GND. The S pin represents the output analog voltage value.

    ● Jumpers can be used to select parallel outputs and analog value ranges for output

    ● On board 3P and 4P connector interfaces for power signal output, making it easy to connect to your MCU development board

    ● Airborne precision miniature current transformer

    ● On board high-precision amplifier with Frequency compensation



    Specifications:



    ● Conversion coefficient: 1000:1

    ● Input current: 0-5 A

    ● Output current: 0-5mA

    ● Sampling resistance: 200 Ω

    ● Sampling voltage: 0-1V

    ● Operating frequency: 20-20000Hz

    ● Operating temperature: -55-85 ℃

    ● Dielectric strength: 6KAC/1min
