3D Printer A4988/DRV8825 Stepper Motor Drive Control Board/Expansion Board

3D Printer A4988/DRV8825 Stepper Motor Drive Control Board/Expansion BoardItem NO.: MK01962

US$ 3.20
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
3D Printer A4988/DRV8825 Stepper Motor Drive Control Board/Expansion Board
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

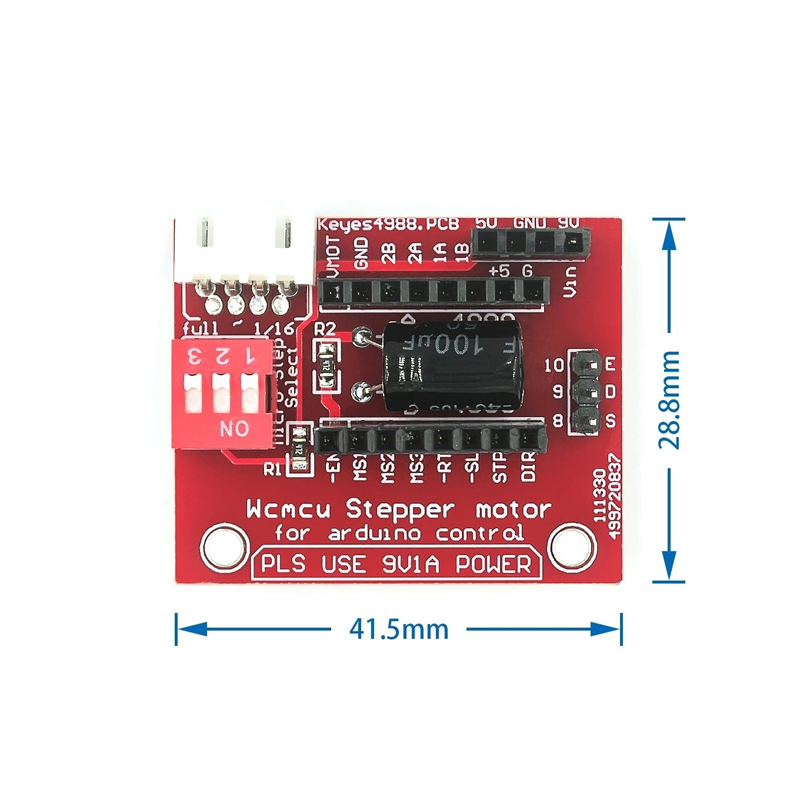

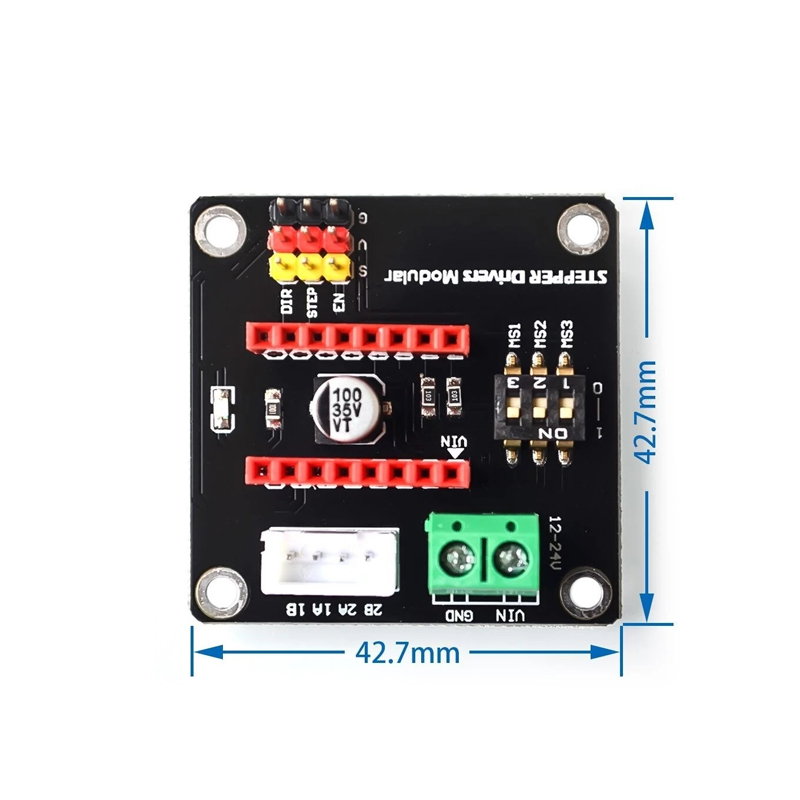

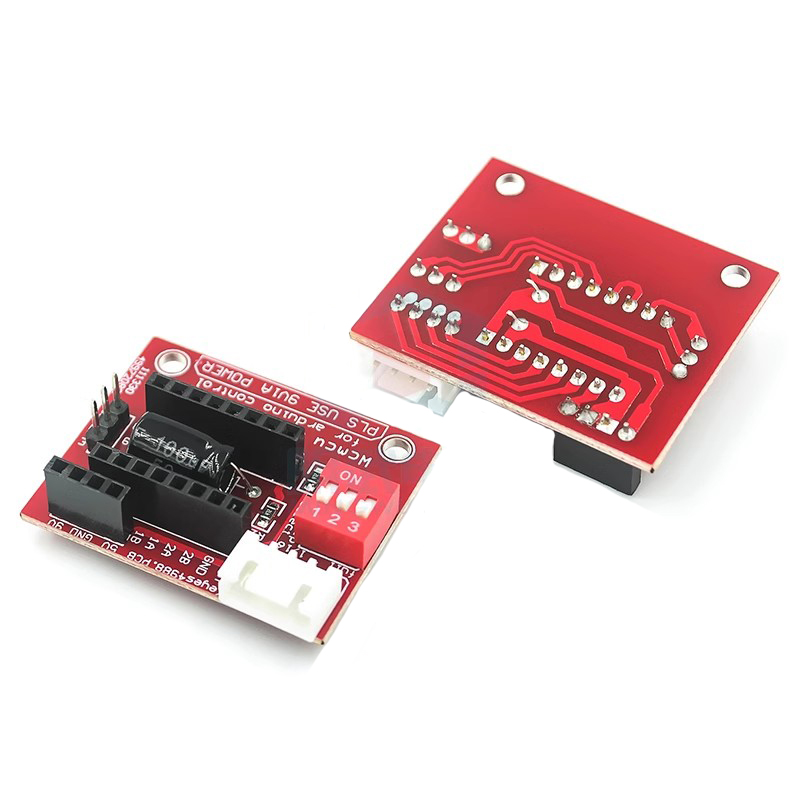

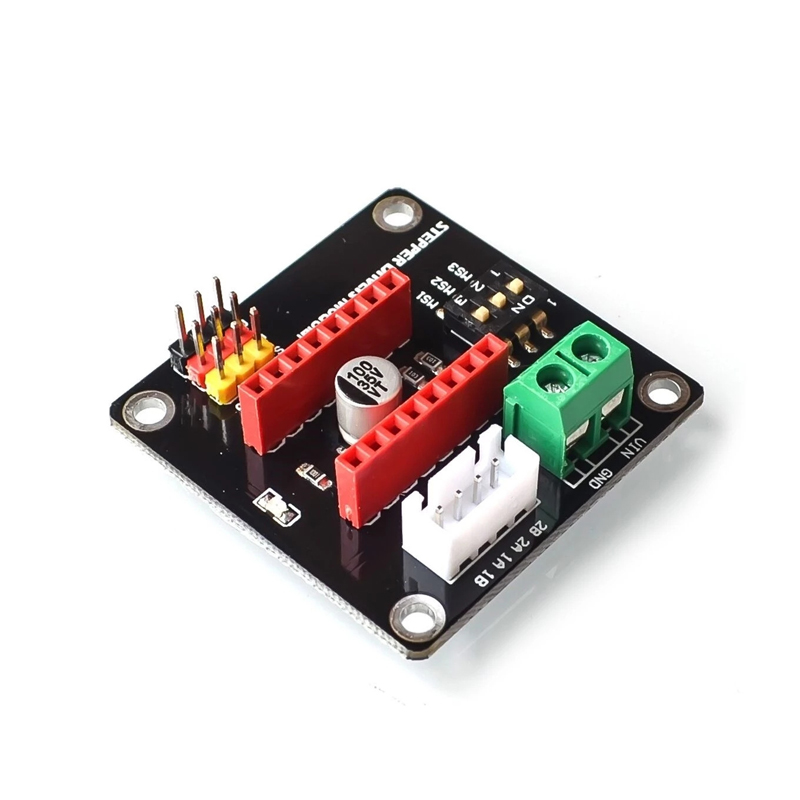

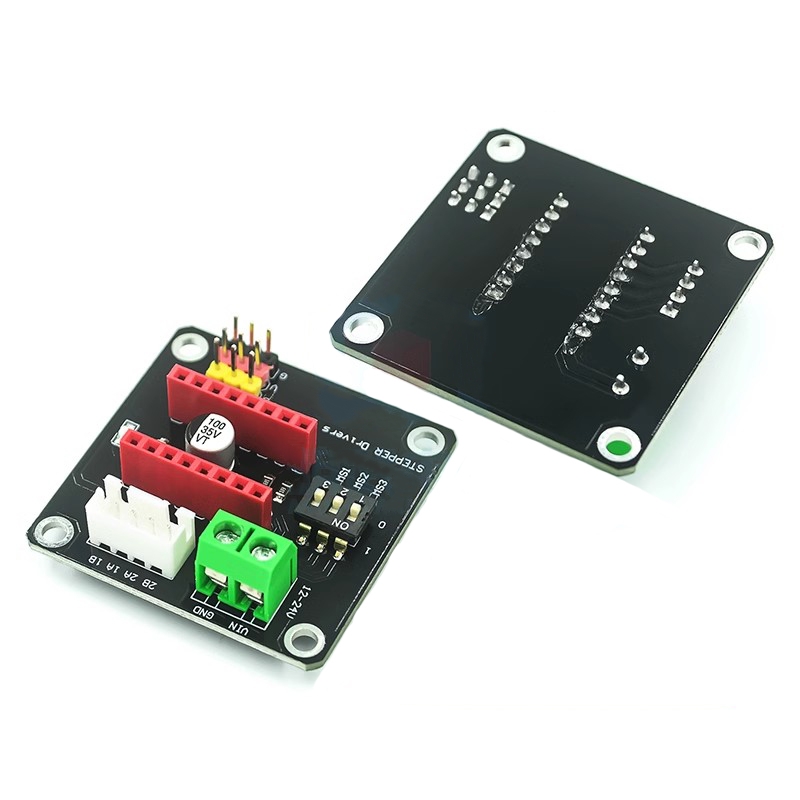

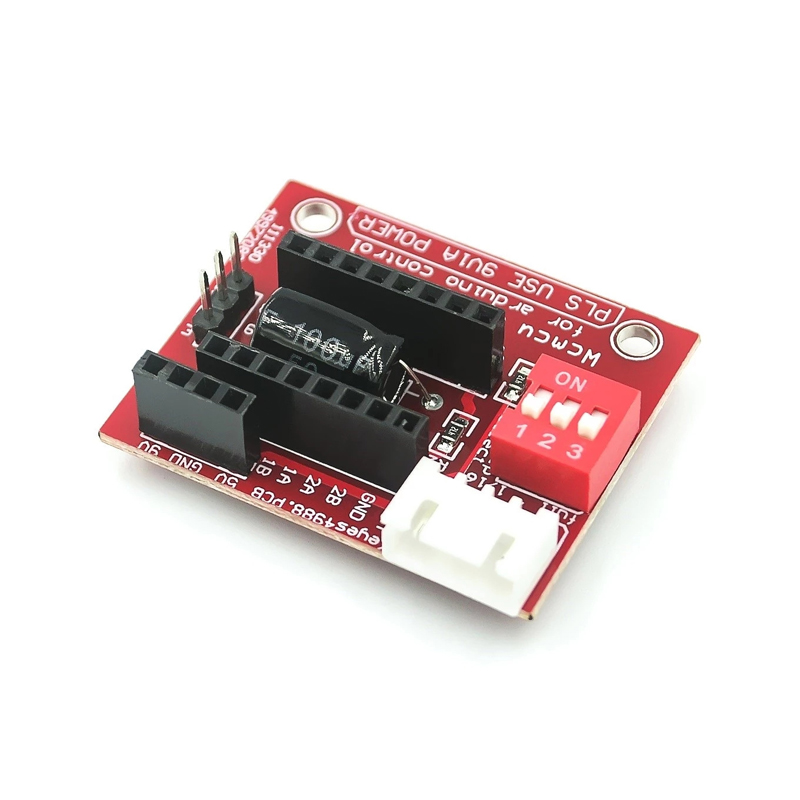

  • A4988/DRV8825 Stepper Motor Drive Control Board



    Product Introduction:



    1. A4988/DRV8825 can be used, pay attention to the direction when inserting, otherwise the drive may burn out.

    2. Jumpers are placed in the ON DP position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).

    3. Jm connects the motor.

    4. Jv Connect 5V and 12V-24V Power Supplies

    5. The E  S  D  G of Jc correspond to the Enable  Step  Dir  Gnd drive signal output on the connection.



    Special reminder:



    Pay attention to the direction during installation, otherwise it may burn out the driver or even the motherboard.
